5 OPTIONAL ACCESSORIES
5-7
5.2.4 Using the RD-2
1
Set up a rotating laser, turn it on and position the blade of the machine at the
references elevation as described on page 3-1.
2
Mount the LS-B4 on the mast and connect the LS-B4 to the RD-2 with the JC-7
junction cable.
3
Set the RD-2 at a proper position to be seen easily in the machine.
4
Turn on the power of the RD-2. This automatically powers the LS-B4.

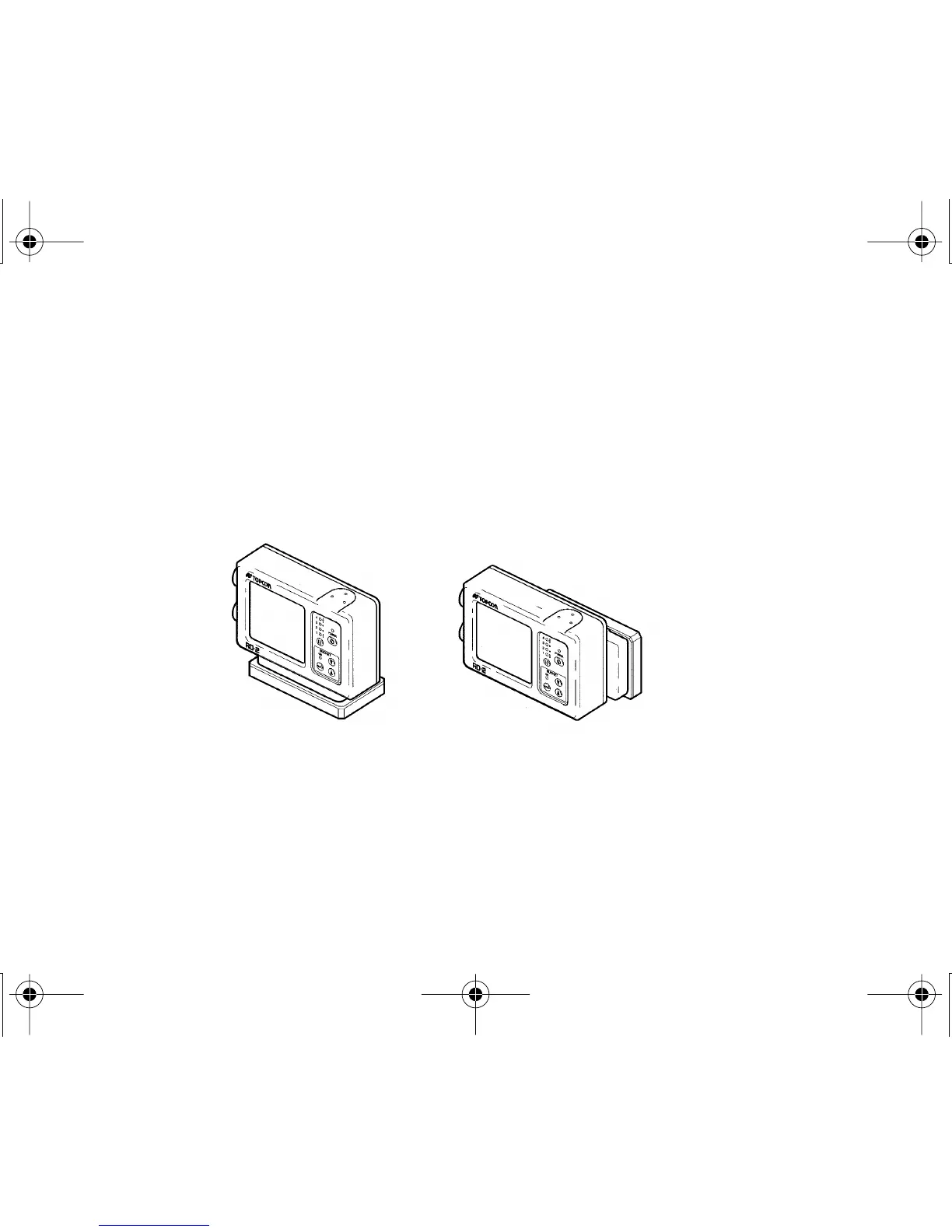

Installation to horizontal surface
Installation to vertical surface
