2 PREPARING FOR USE
2-12
2.6 Installing on the equipment
Use the clamp on the rear of LS-B4 to mount it to a mast installed on the equipment.
2
1
3

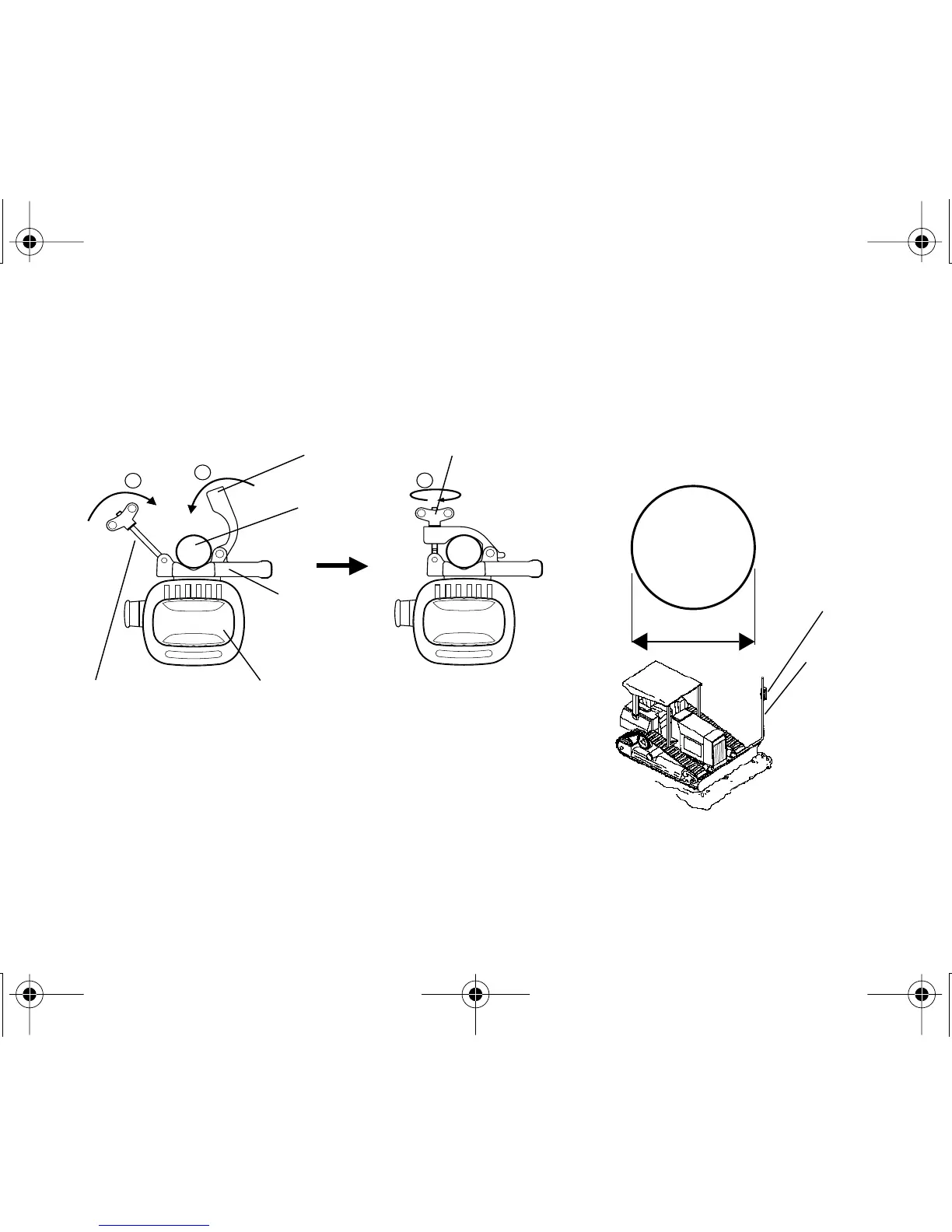

Mounting onto mast
1 Place the clamp on the mast and close the
bracket.
2 Slide the clamp screw into the bracket and
orient the LS-B4 so the display can be
seen easily.
3 Tighten the clamp knob securely.
Bracket
Clamp Screw
Clamp Knob
LS-B4 Mast Speciation
1.5~2 inches
Mast
LS-B4
Mast
Clamp
LS-B4
Shape: Round
Size: 1.5”~2” diameter (38~51mm)
When installing the mast to the equip-
ment (by welding, etc.), refer to the equip-
ment instruction manual or contact the
manufacturer. Contact your Topcon
dealer for Topcon mast accessories.
