Topcon RM-8900 - Page 61

59
BASIC OPERATIONS

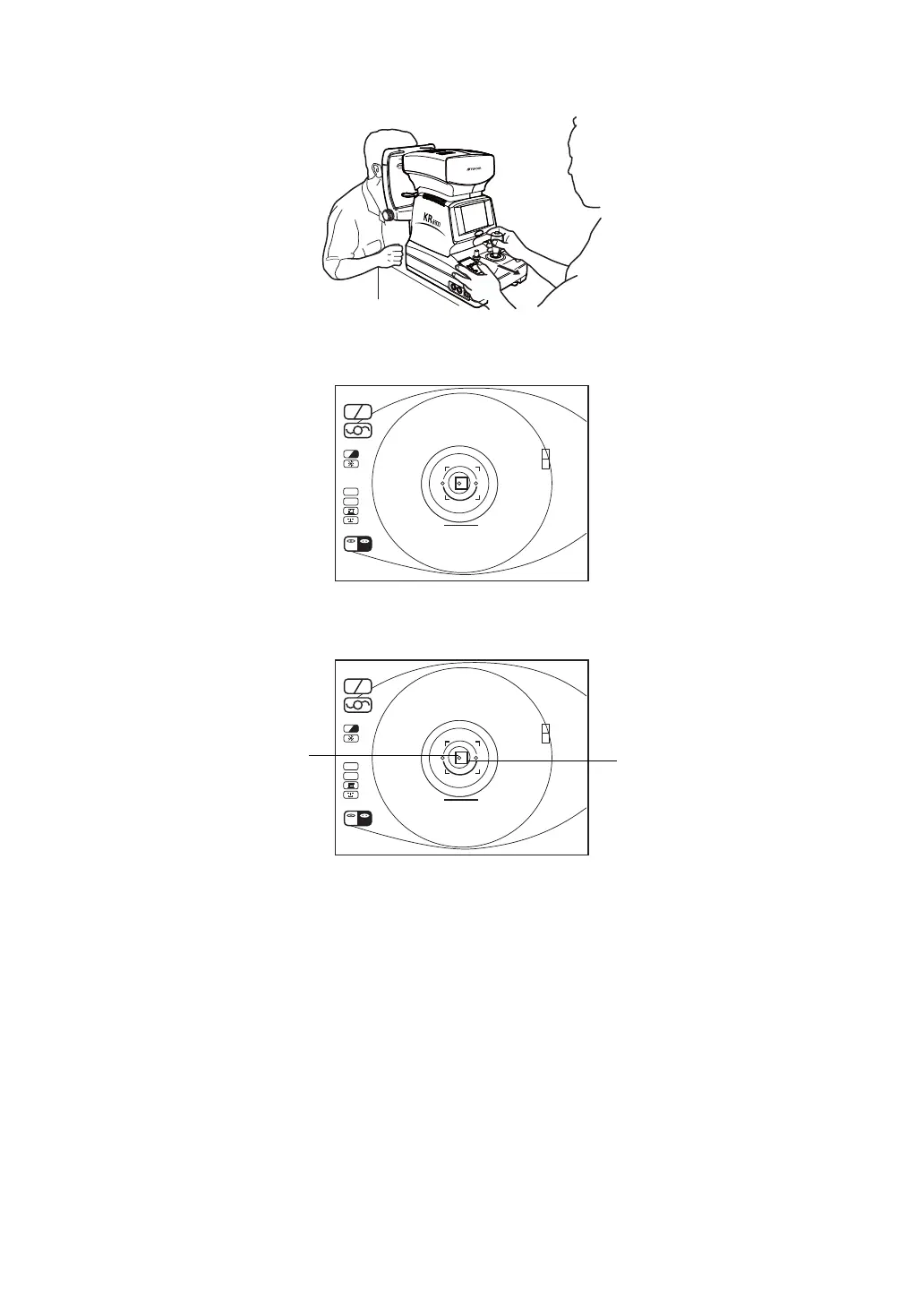

1 Hold the control lever and move the main body to the operator side.
2 Operate the control lever laterally and vertically to obtain the target eye in the center of
monitor screen.
3 While moving the main body toward the patient, focus the target eye.
A vague, reflected luminous point for alignment appears on the cornea.
4 Fine-adjust the main body position in all directions so that the luminous point comes within
the alignment mark.
SC A
A
HV
R
K
m
D
CYL
VD
12.00
R
R00 00
K
L
01
0001
(-)
/
00 00
/
R
D
L
SC A
A
HV
R
K
m
D
CYL
VD
12.00
R
R00 00
K
L
01
0001
(-)
/
00 00
/
R
D
L
Alignment mark
Luminous point
