Topcon SL-D301 - System Diagram; Component Names; Composition of Parts that Come in Contact with the Patient

10

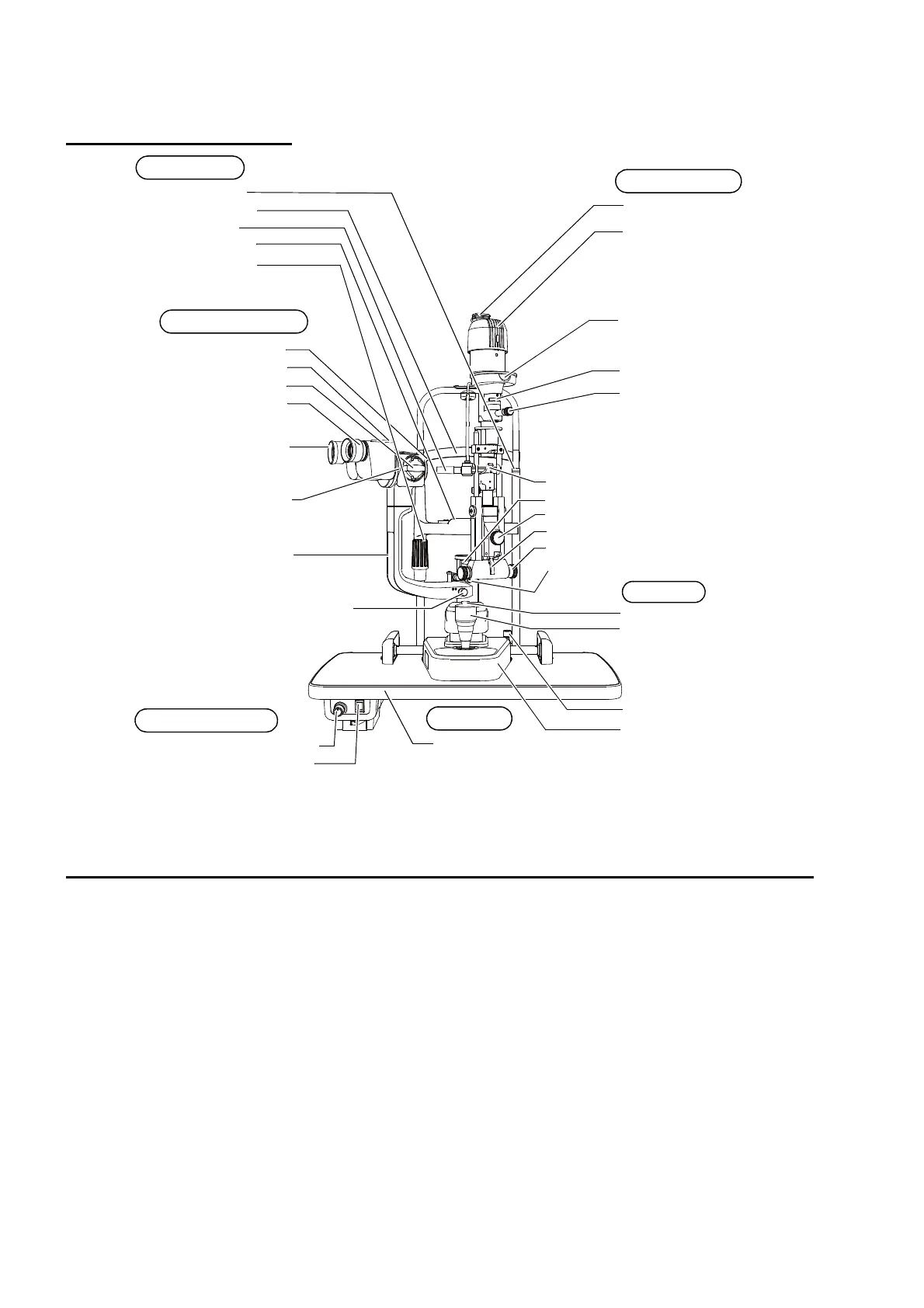

SYSTEM DIAGRAM
SYSTEM DIAGRAM
COMPONENT NAMES
* Tabetop is opptional accessory.
COMPOSITION OF PARTS THAT COME IN CONTACT WITH THE PATIENT
Forehead rest: Polyamide resin
Chinrest : Polyamide resin
Plug
Lamp house cover
Aperture/slit length
display window
Filter selector lever
Aperture/slit-length
selector knob
Canthus marker
Mirror
Centering knob
Inclination lever
Slit width controls
Photography button
Control lever
Base locking knob
Base
Forehead rest
Chinrest
Objective lens
Magnification selector handle
Fixing knob
Diopter adjusting ring
12.5× eyepiece
Magnification index mark
Chinrest adjuster
Microscope arm
Illumination arm locking knob
Power switch
Microscope arm locking knob
Illumination Unit
Tabletop
Power Supply
Microscope Unit
Base Unit
Chinrest Unit
Bightness adjustment knob
Fixation target
Tabletop*
Illumination arm
