ASSEMBLY PROCEDURE

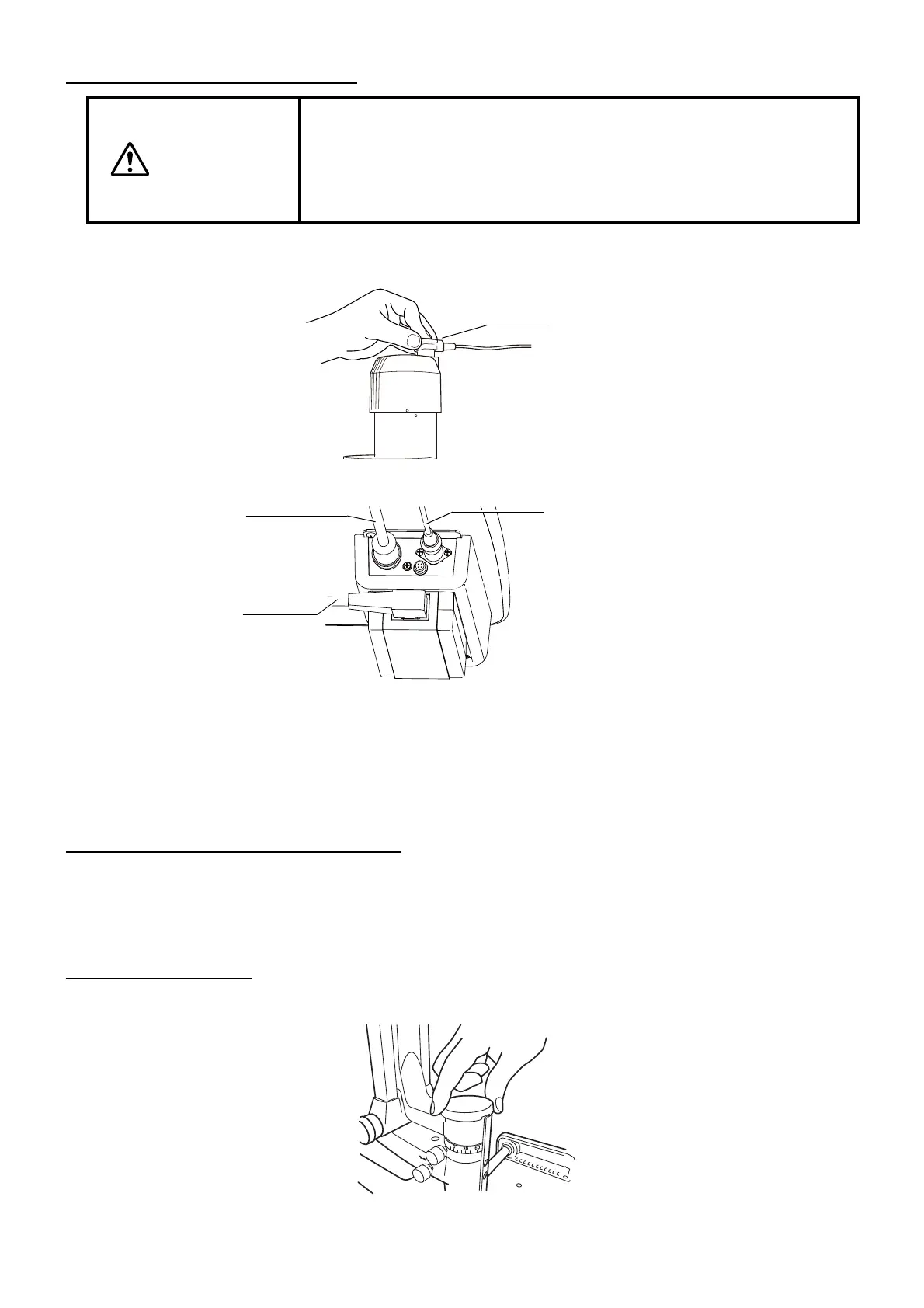

CONNECTING THE CABLES
1 Remove the tape from the lamp house cover of the illumination unit. Plug the cable from the
upper part of the chinrest into the illumination unit.
2 Connect the cable from the lower part of the chinrest unit and the power cord to the power supply.
3 Pull the base assembly toward the operator's side fully. Attach the cables to the rear side of the
table with the cable clip to adjust the loosening of the cord.
4 Move the base assembly and illumination assembly and make sure there is enough cable to
allow free movement of the base assembly in all directions.
FITTING THE CHINREST TISSUE
1 Remove the chinrest tissue pins.
2 Take approximately one-fifth of the pad of chinrest tissues and secure this at each end with the pins.
FITTING THE CAP
1 Fit the cap to the shaft aligning the guide rod with the groove in the cap.
CAUTION
• Use the power cord applicable to the voltage of the commercial power
supply being used. Using a power cord improper to the commercial
power supplymay cause the instrument to malfunction.
• The power cable in standard accessories for this instrument cannot
use besides this instrument.
Illumination cable
power cord
Fixation target cable
