Topcon SL-D301 - ASSEMBLY PROCEDURE - PART 2; SECURING THE CHINREST

14
ASSEMBLY PROCEDURE

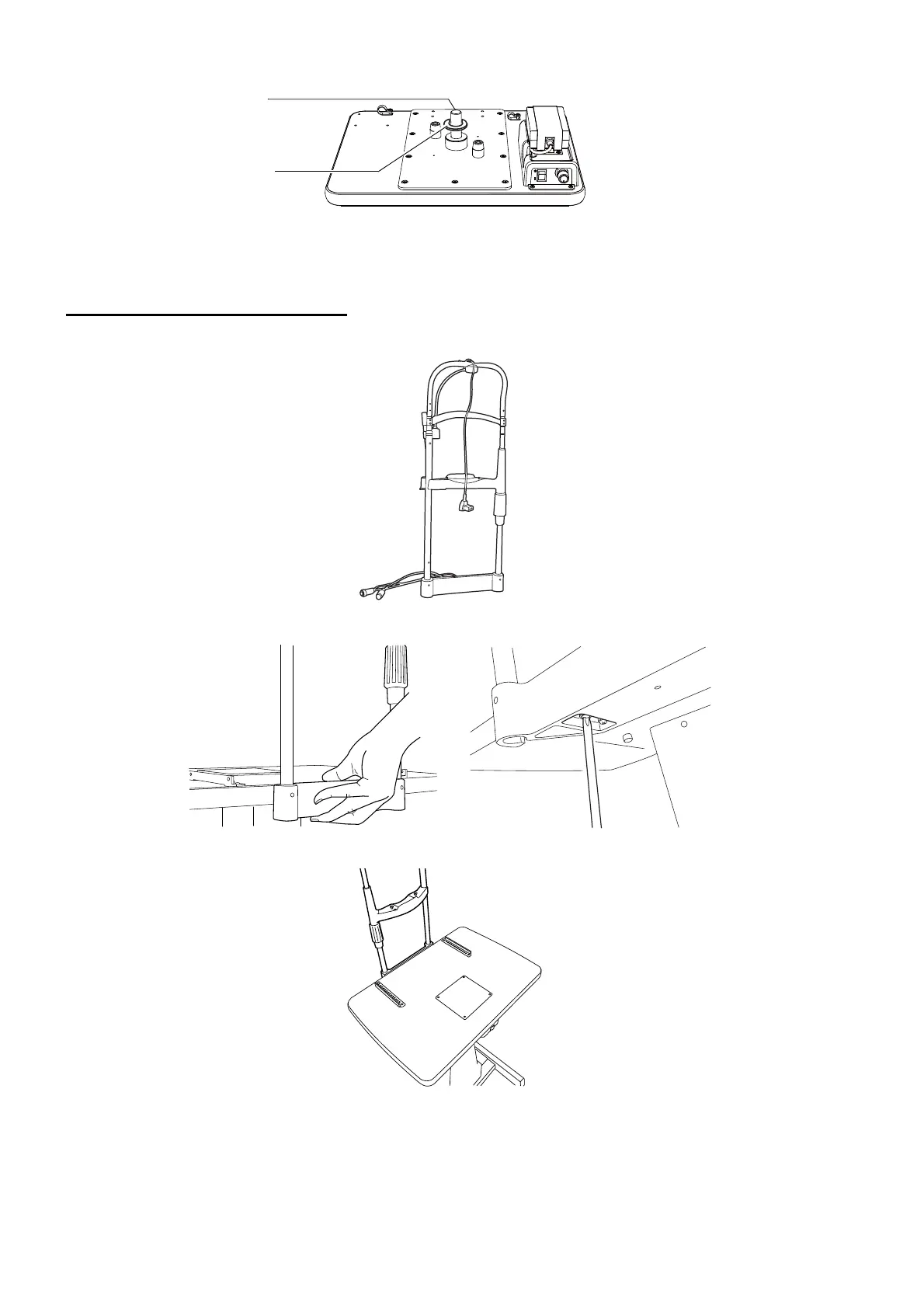

2 Insert the plastic washer, together with the shaft, into the cavity for the ophthalmic unit arm.
SECURING THE CHINREST
1 Take out the chinrest from the upper section of the container box.
2 Attach the chinrest to the bottom face of the table, and affix it to the table using 4 screws.
3 Chinrest fitted to the tabletop.
Washer
Shaft
