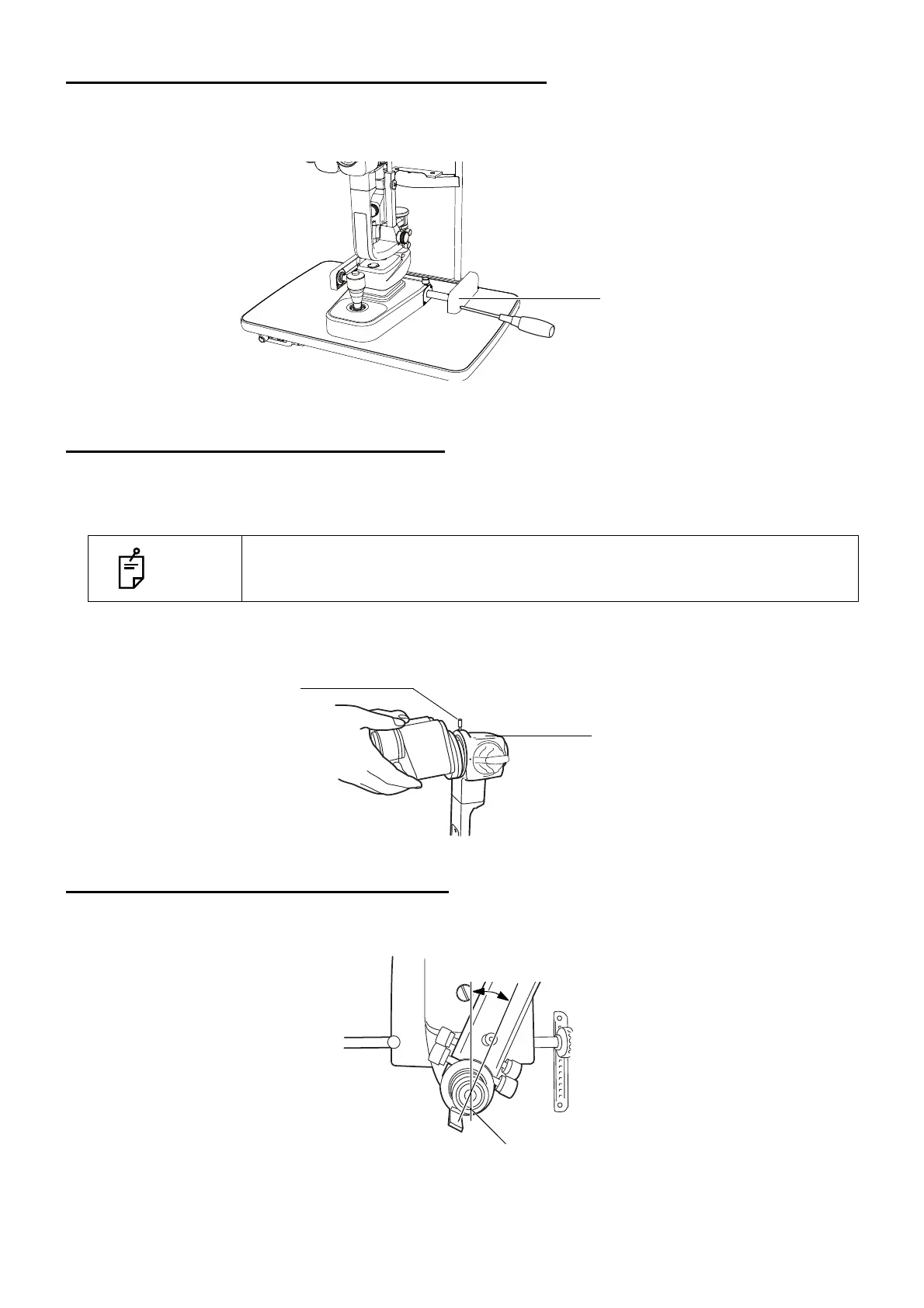

ASSEMBLY PROCEDURE
SECURING THE BASE UNIT AND RAIL COVER
1 Align the wheel of the base unit with the rail of the tabletop.
2 Secure the rail covers with 4 screws (7): (2 screws each on the right and left sides).
SECURING THE BINOCULAR TUBES
1 Align the pin of the microscope unit with the groove on the binocular tubes, and fit the binocular
tubes with the fixing knob.
SECURING THE ILLUMINATION UNIT
Loosen the microscope arm locking-knob of the base unit, manually turn the shaft and tilt the guide rod-
shaft index 30-60°, then refasten the microscope-arm locking-knob.
NOTE
Make sure you do not touch the lens surfaces.
Rail cover
Fixing knob
Microscope unit
30° - 60°
Indices
