Topcon System 150 User Manual

2-7
AGA3719 Rev 1.6
System 150 Auto Steer Setup Guide
Maximum Turning Angle
The maximum turning angle is the highest angle that the steering
hydraulics are able to physically turn. This informs the auto-steering
system of the vehicles steering limits so that it does not attempt to steer
above this value.
Select 1. to edit the maximum turning angle
Use the Numeric keypad to enter the maximum turning angle. The 2.
maximum turning angle has to be an angle between -90 and 90
degrees.
Refer to Appendix A, page A-8 of the System-110/150 Operator’s

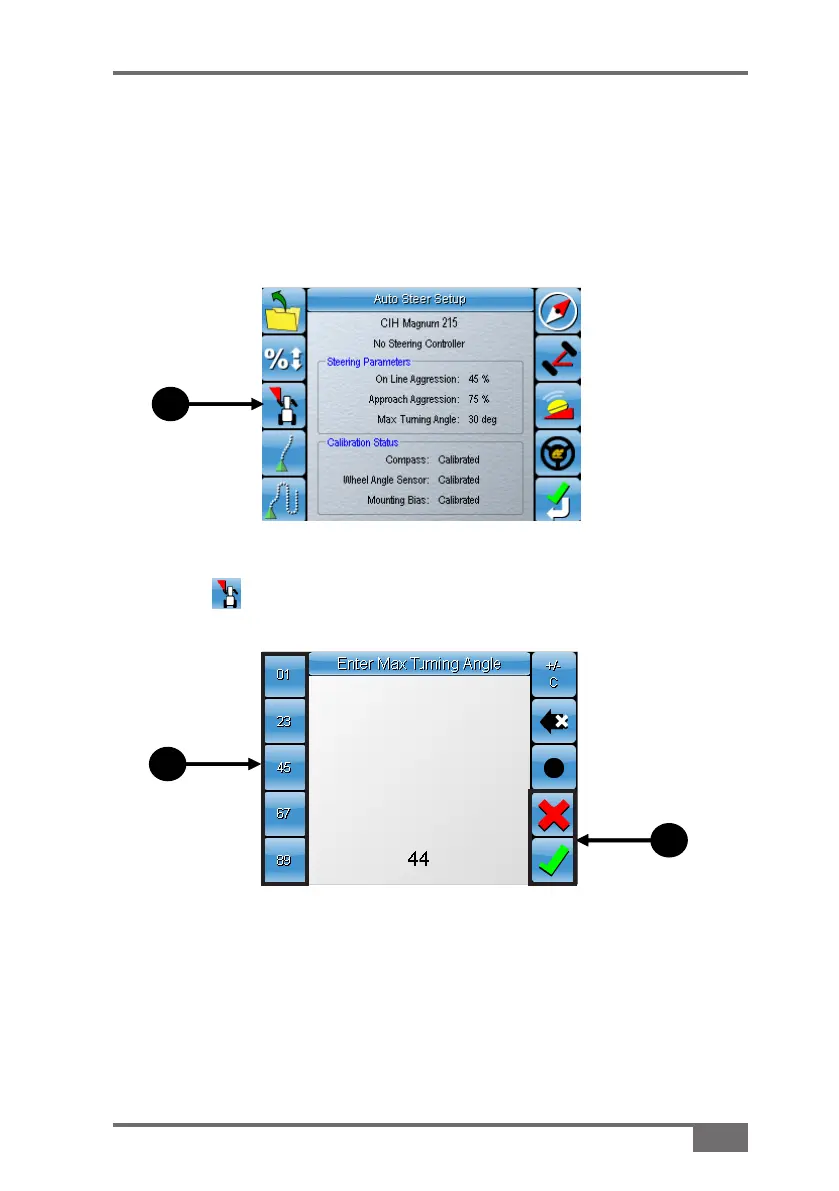

Figure 2-11. Auto-Steer Setup screen
Figure 2-12. Enter Max Turning Angle
1
2
3
