System 150 Auto Steer Setup Guide
Using Auto-Steering
Step 1 - Approach the Guidance Path
To use Auto-Steer is fairly straight forward. In order to use Auto-Steer,
you need to have the following two items:
Auto-Steering enabled (refer page 1-1)1.
A loaded Guidance Path (Refer System 110/150 Guidance 2.
manual page)
Follow the steps outlined in this section in order to use Auto-Steer on
any guidance path.
In this example, the Guidance Path is an AB Line. When you engage
Auto-Steering, the vehicle will begin to steer to the nearest available
Guidance Path.
This is usually the Guidance Path that is immediately visible on the
Main Guidance screen (gure 4-3).
Here we want the vehicle to steer to a path that runs through point A
and point B. To do this, we need to drive the vehicle closer until the
Guidance Path running through point A and B appears.

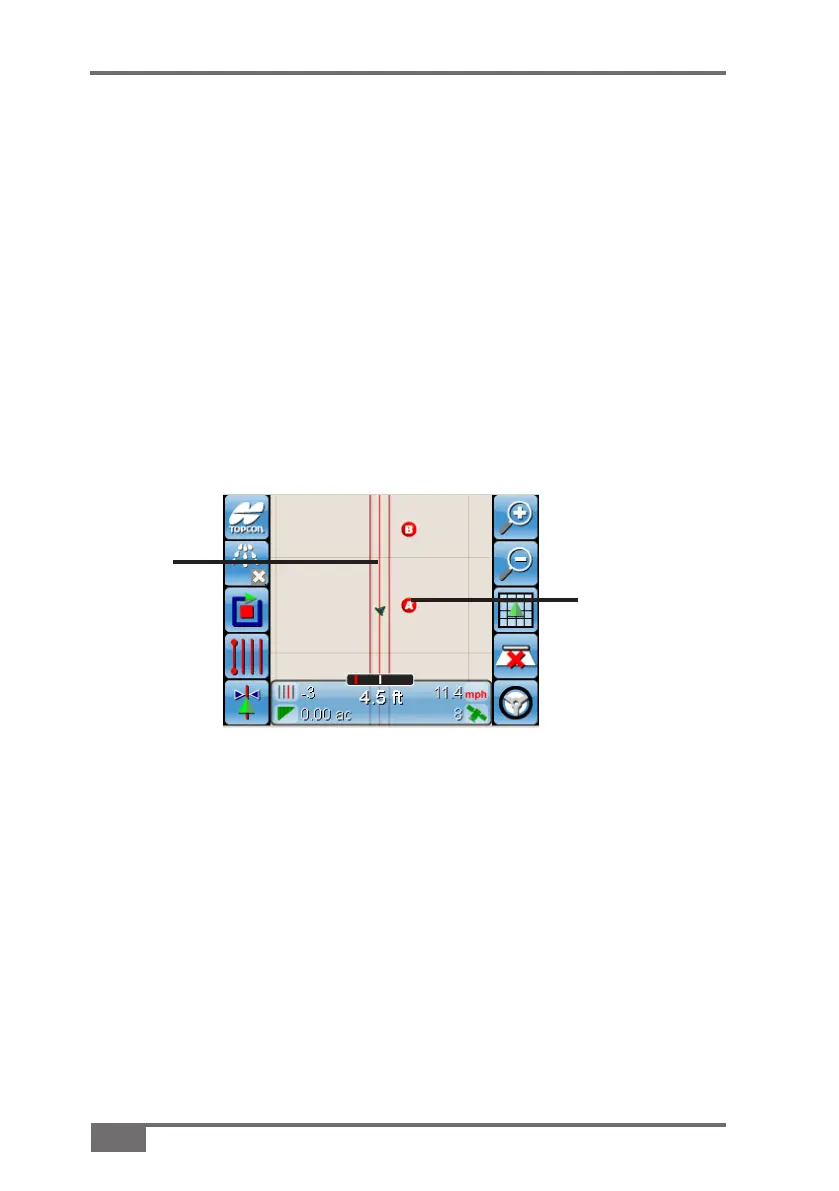

Figure 4-3. Approach Guidance Path
Nearest
Guidance
Path is visible
We want to
Auto- Steer to
original path
between point A
and B located
around here
