3-1
AGA3719 Rev 1.6
System 150 Auto Steer Setup Guide
Field Tuning
Once the software setup is complete, the vehicle must be individually
tuned to achieve the best steering results.
Compass Calibration
Select 1. Compass to enter the Compass Calibration screen

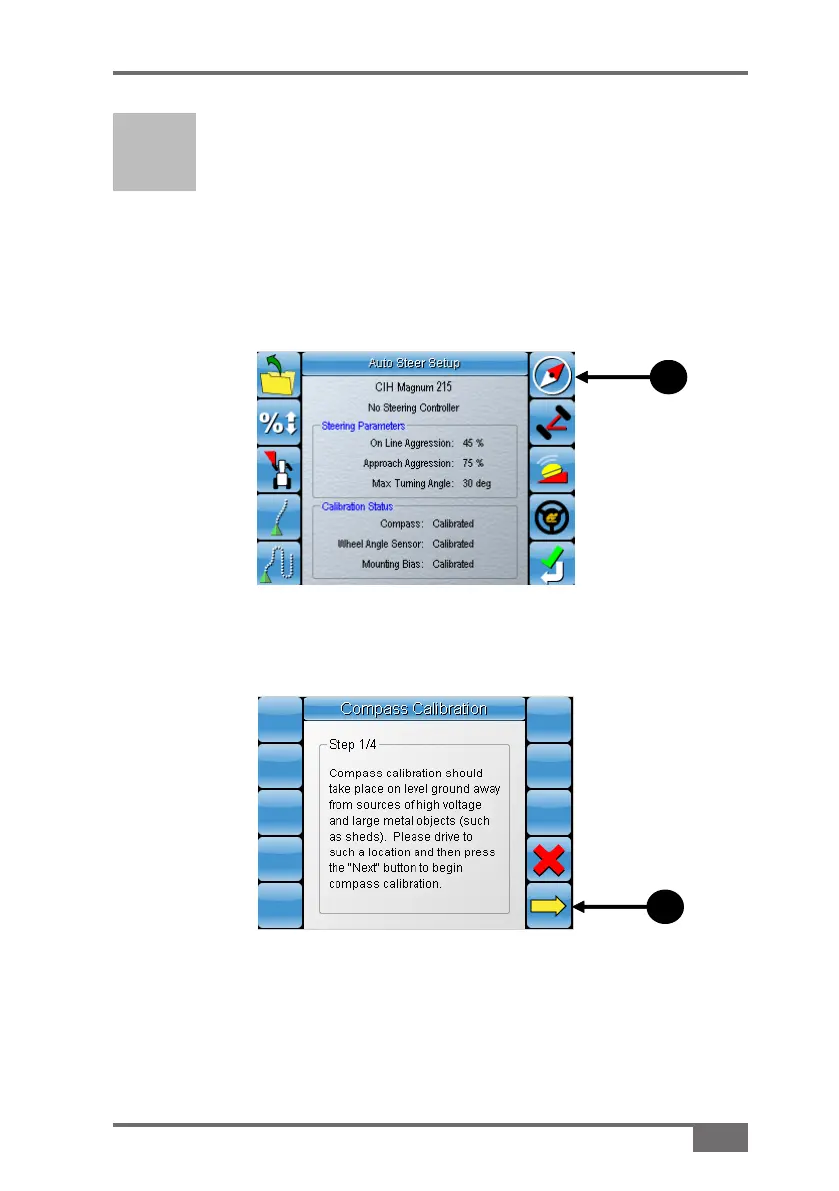

Figure 3-1. Auto Steer Setup screen
Figure 3-2. Compass calibration screen
1
2
Follow the on screen prompt to perform the compas calibration. 2.
First you will be required to drive your vehicle to a level surface.
Once you have done this, select the yellow arrow to go to the next
step
