System 150 Auto Steer Setup Guide

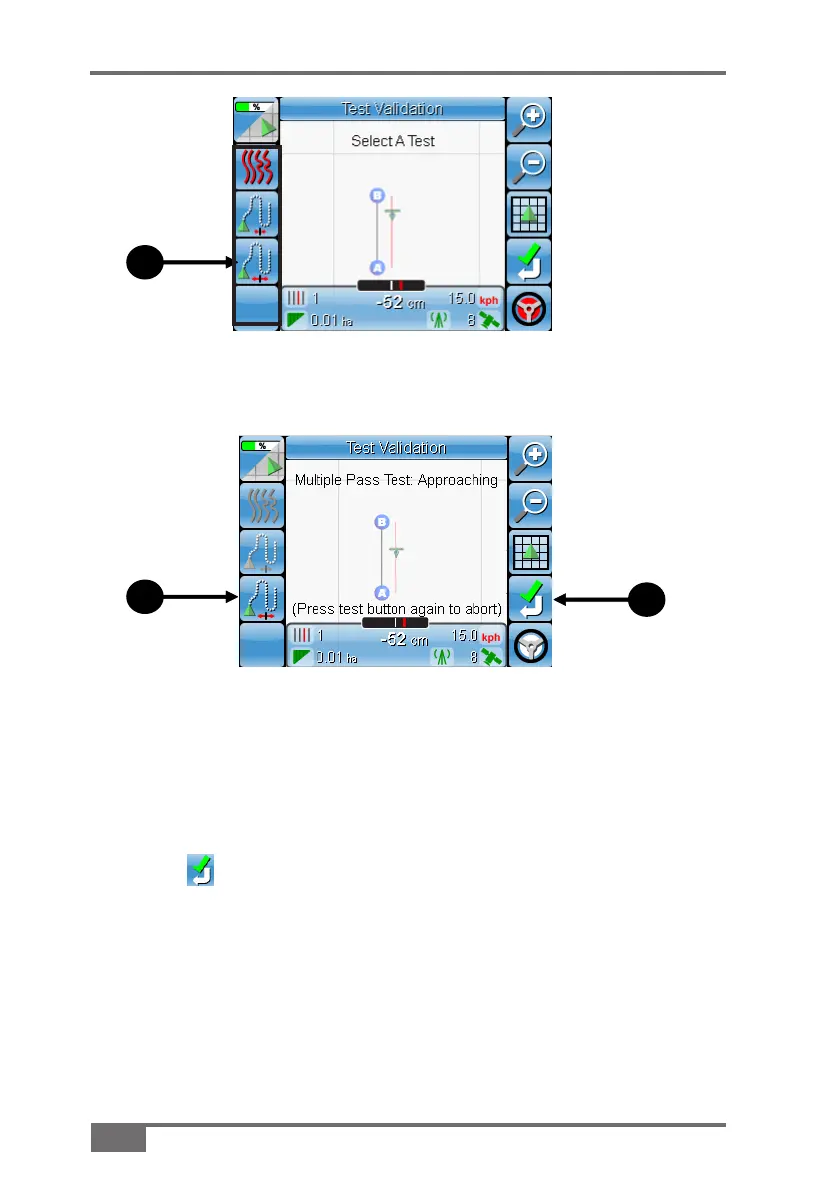

Figure 3-17. Auto Steer Setup screen
Figure 3-18. Parallel Test
4
5
There are 2 test that you can perform from this screen.
Select each test in turn to test the auto-steering capability in each 4.
scenario
Select the test icon again to end the specic test 5.
Select to exit the 6. Test Validation screen
If set correctly, your vehicle should be able to approach and 7.
steer to your guidance paths accurately, smoothly without wheel
oscillations.
If you nd that your vehicle is veering away from the guidance path
or is not sitting centered on the guidance path while auto-steering is
engaged, you may need to recalibrate your auto-steering system
