8 Introduction
2.1.2 Rear Panel

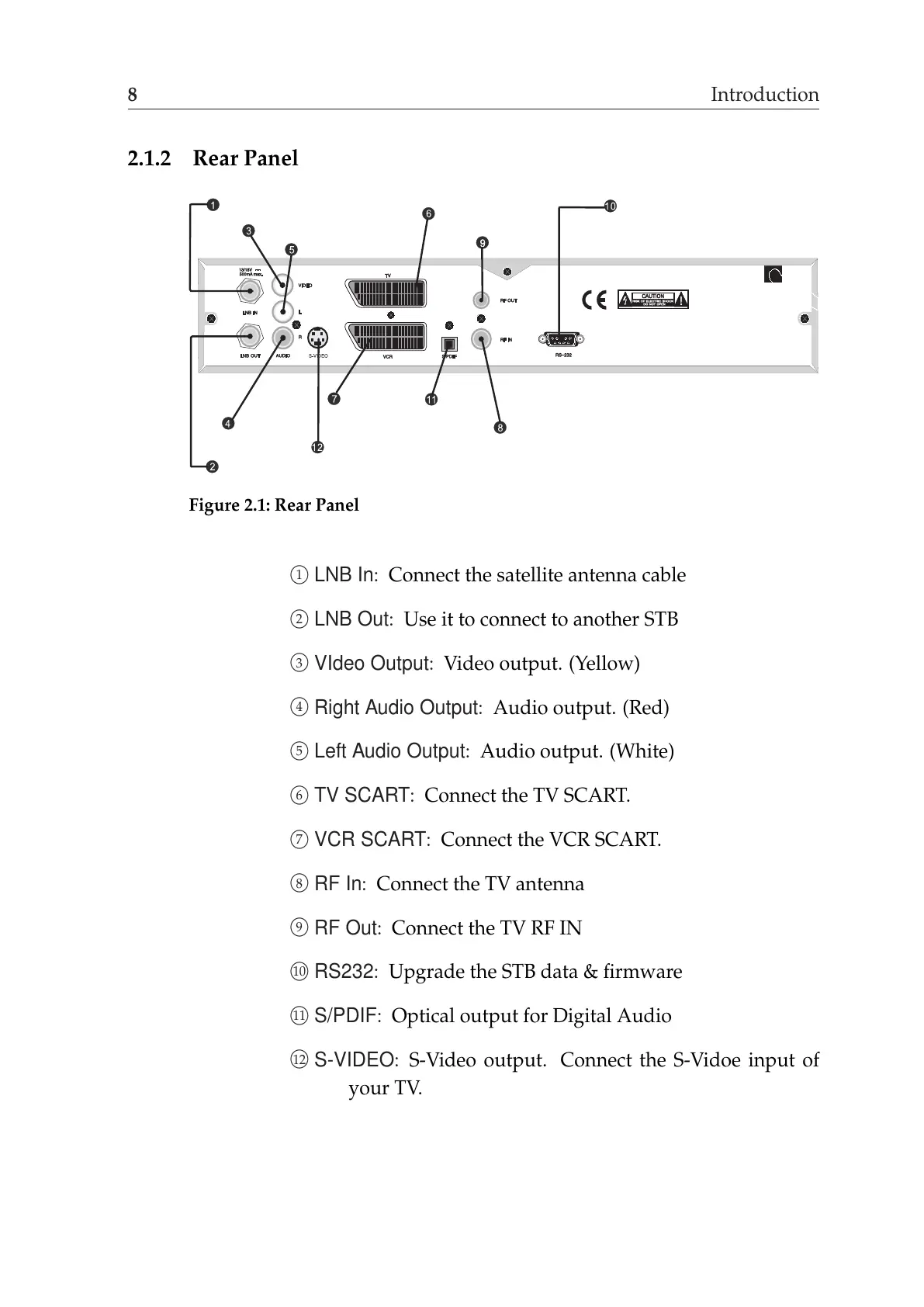

Figure 2.1: Rear Panel
1
LNB In: Connect the satellite antenna cable
2
LNB Out: Use it to connect to another STB
3
VIdeo Output: Video output. (Yellow)
4
Right Audio Output: Audio output. (Red)
5
Left Audio Output: Audio output. (White)
6
TV SCART: Connect the TV SCART.
7
VCR SCART: Connect the VCR SCART.
8
RF In: Connect the TV antenna
9
RF Out: Connect the TV RF IN
10
RS232: Upgrade the STB data & firmware
11
S/PDIF: Optical output for Digital Audio
12
S-VIDEO: S-Video output. Connect the S-Vidoe input of
your TV.
