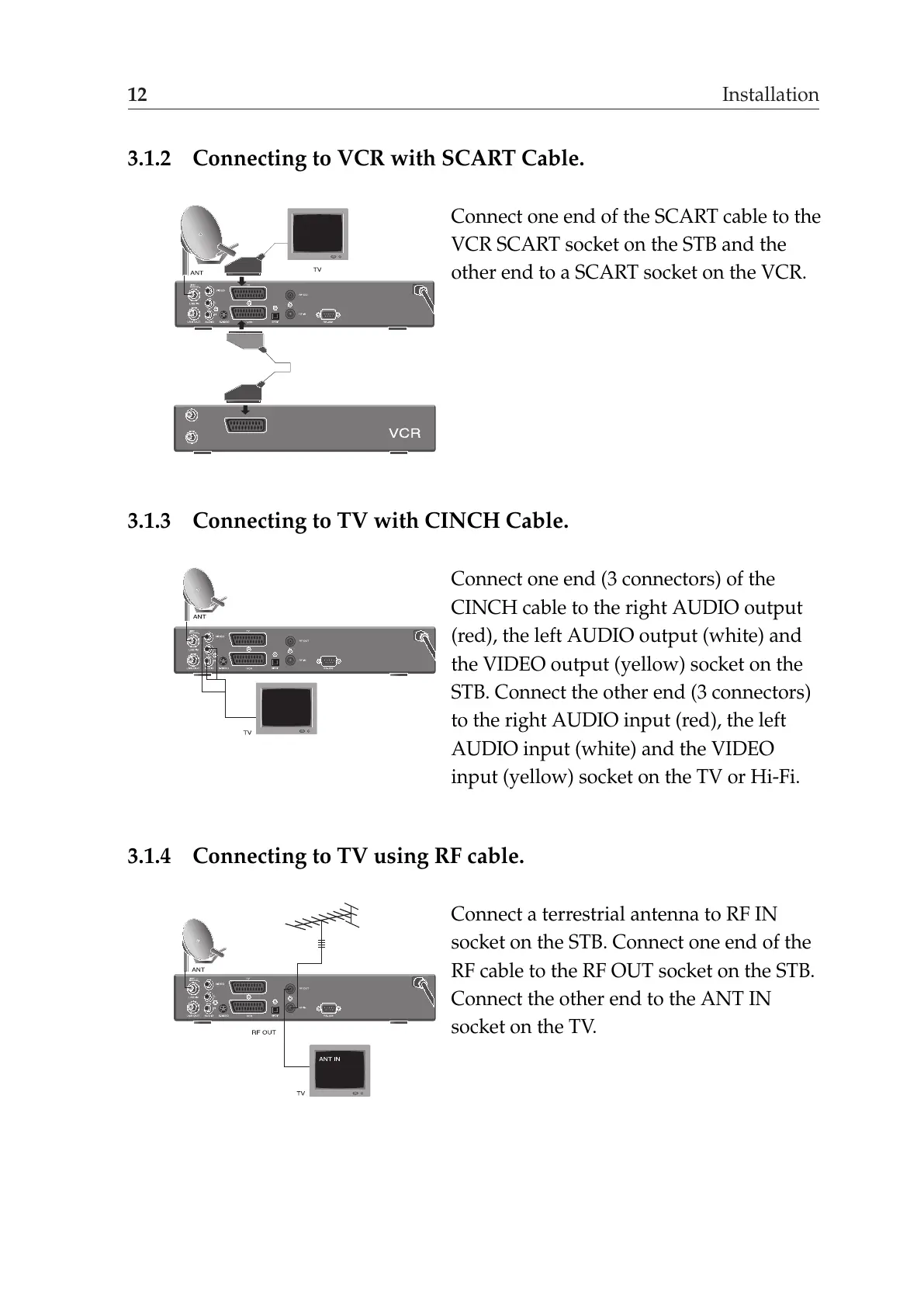

12 Installation
3.1.2 Connecting to VCR with SCART Cable.
Connect one end of the SCART cable to the
VCR SCART socket on the STB and the
other end to a SCART socket on the VCR.
3.1.3 Connecting to TV with CINCH Cable.
Connect one end (3 connectors) of the
CINCH cable to the right AUDIO output
(red), the left AUDIO output (white) and
the VIDEO output (yellow) socket on the
STB. Connect the other end (3 connectors)
to the right AUDIO input (red), the left
AUDIO input (white) and the VIDEO
input (yellow) socket on the TV or Hi-Fi.
3.1.4 Connecting to TV using RF cable.
Connect a terrestrial antenna to RF IN
socket on the STB. Connect one end of the
RF cable to the RF OUT socket on the STB.
Connect the other end to the ANT IN
socket on the TV.
