2.2 Remote Control Unit 9
2.2 Remote Control Unit

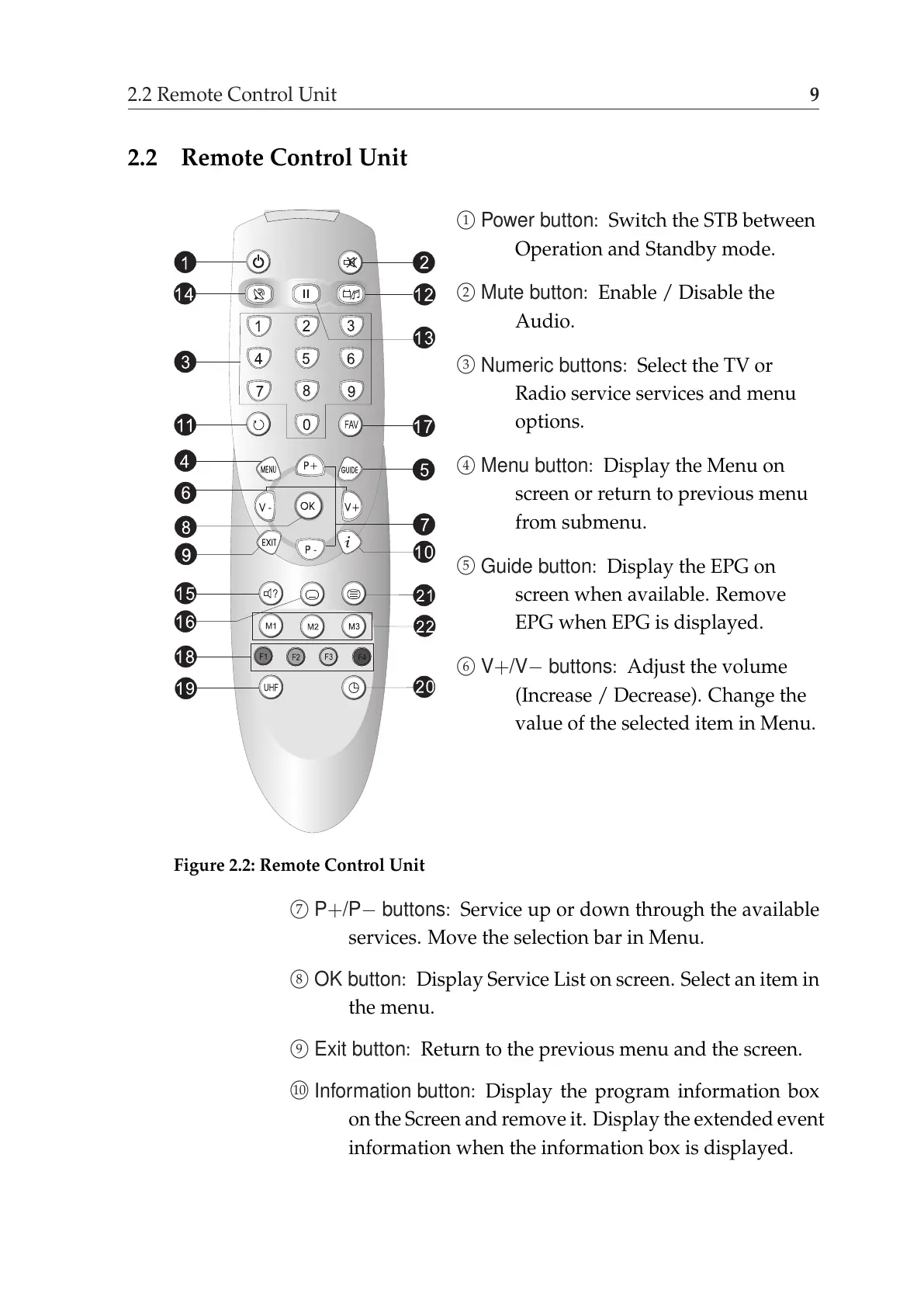

Figure 2.2: Remote Control Unit
1
Power button: Switch the STB between
Operation and Standby mode.
2
Mute button: Enable / Disable the
Audio.
3
Numeric buttons: Select the TV or
Radio service services and menu
options.
4
Menu button: Display the Menu on
screen or return to previous menu
from submenu.
5
Guide button: Display the EPG on
screen when available. Remove
EPG when EPG is displayed.
6
V+/V− buttons: Adjust the volume
(Increase / Decrease). Change the
value of the selected item in Menu.
7
P+/P− buttons: Service up or down through the available
services. Move the selection bar in Menu.
8
OK button: Display Service List on screen. Select an item in
the menu.
9
Exit button: Return to the previous menu and the screen.
10
Information button: Display the program information box
on the Screen and remove it. Display the extended event
information when the information box is displayed.
