51

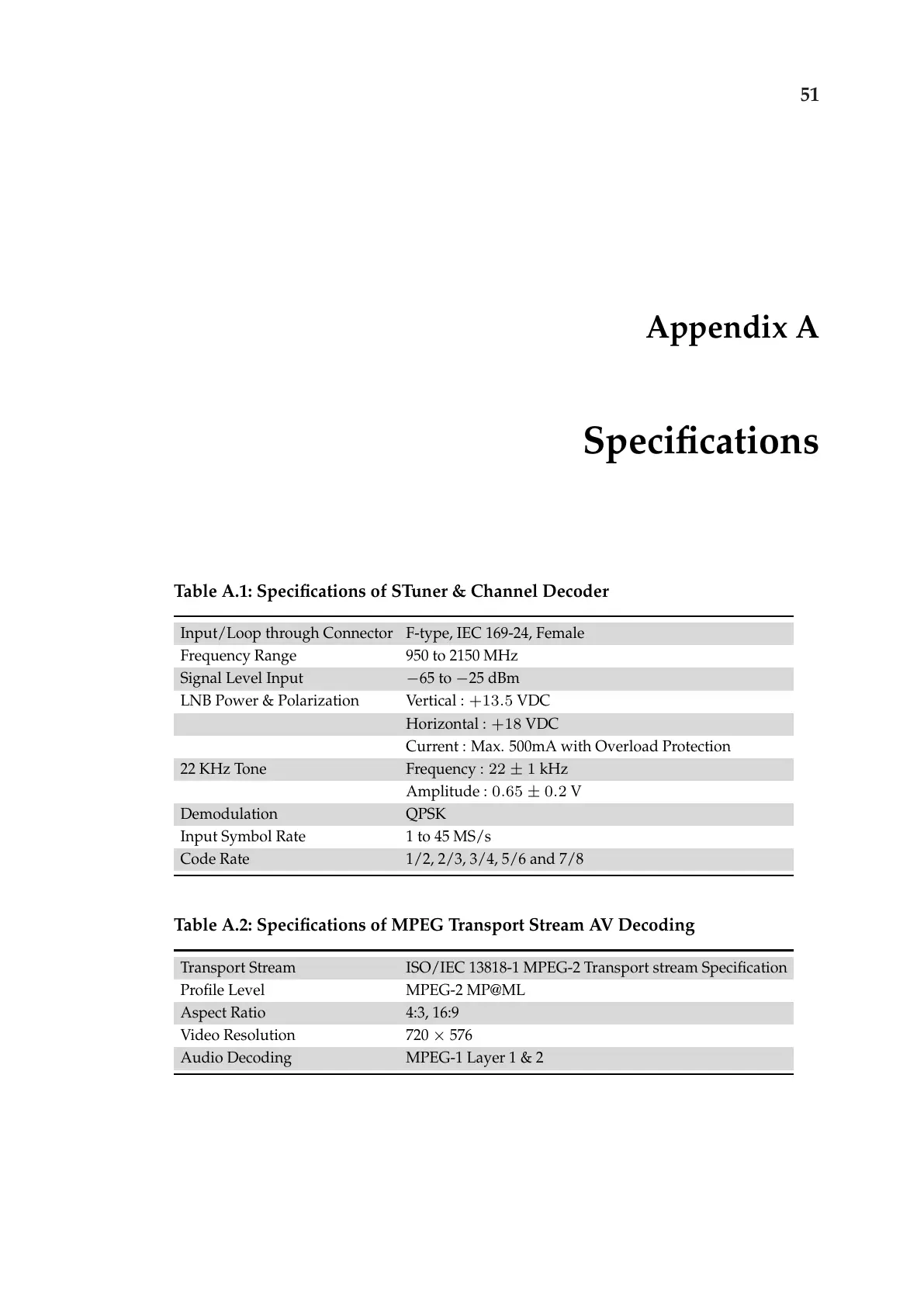

Appendix A
Specifications
Table A.1: Specifications of STuner & Channel Decoder
Input/Loop through Connector F-type, IEC 169-24, Female
Frequency Range 950 to 2150 MHz
Signal Level Input 65 to 25 dBm
LNB Power & Polarization Vertical : +13.5 VDC
Horizontal : +18 VDC
Current : Max. 500mA with Overload Protection
22 KHz Tone Frequency : 22 ± 1 kHz
Amplitude : 0.65 ± 0.2 V
Demodulation QPSK
Input Symbol Rate 1 to 45 MS/s
Code Rate 1/2, 2/3, 3/4, 5/6 and 7/8
Table A.2: Specifications of MPEG Transport Stream AV Decoding
Transport Stream ISO/IEC 13818-1 MPEG-2 Transport stream Specification
Profile Level MPEG-2 MP@ML
Aspect Ratio 4:3, 16:9
Video Resolution 720 × 576
Audio Decoding MPEG-1 Layer 1 & 2
