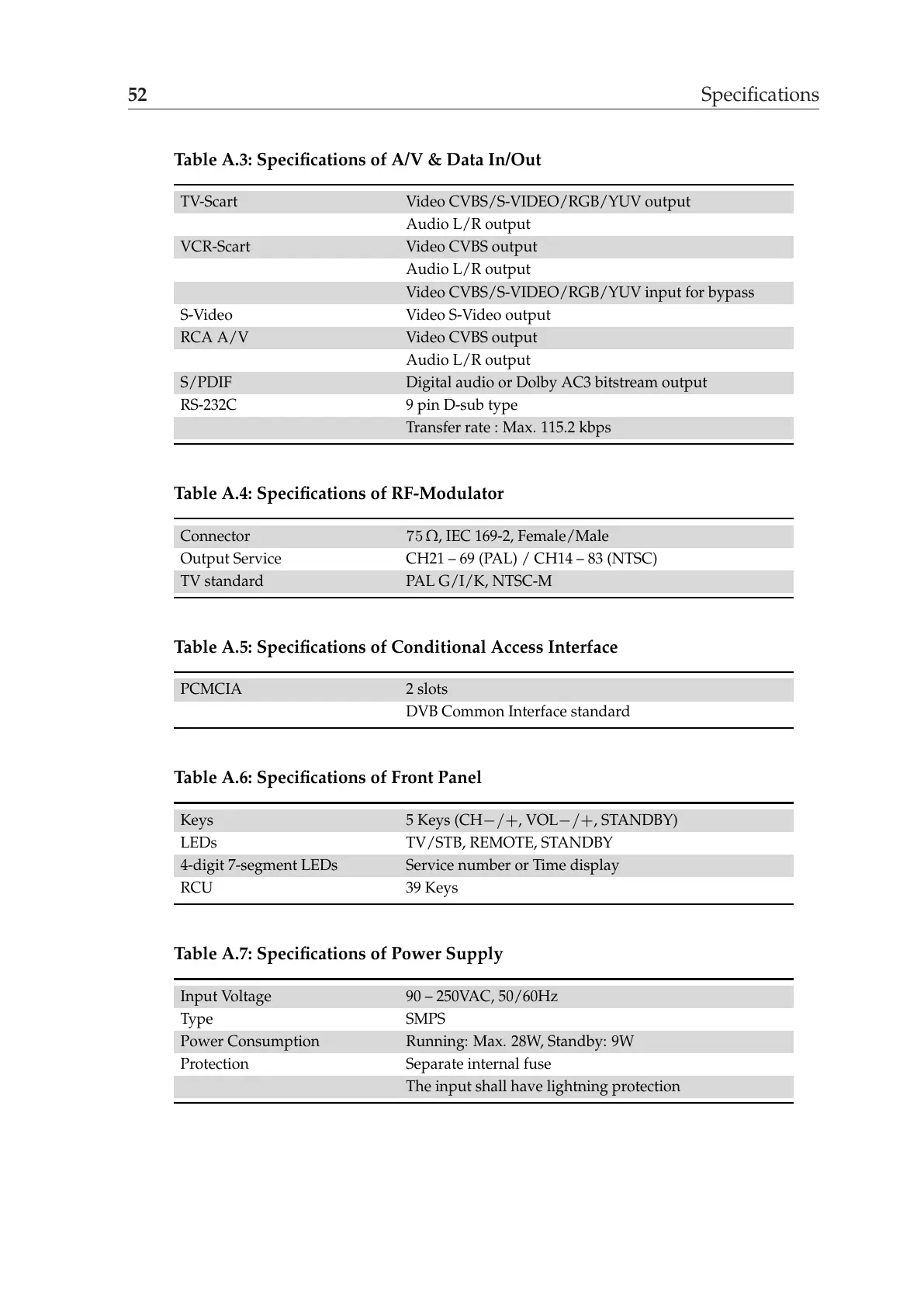

52 Specifications
Table A.3: Specifications of A/V & Data In/Out
TV-Scart Video CVBS/S-VIDEO/RGB/YUV output
Audio L/R output
VCR-Scart Video CVBS output
Audio L/R output
Video CVBS/S-VIDEO/RGB/YUV input for bypass
S-Video Video S-Video output
RCA A/V Video CVBS output
Audio L/R output
S/PDIF Digital audio or Dolby AC3 bitstream output
RS-232C 9 pin D-sub type
Transfer rate : Max. 115.2 kbps
Table A.4: Specifications of RF-Modulator
Connector 75 Ω, IEC 169-2, Female/Male
Output Service CH21 – 69 (PAL) / CH14 – 83 (NTSC)
TV standard PAL G/I/K, NTSC-M
Table A.5: Specifications of Conditional Access Interface
PCMCIA 2 slots
DVB Common Interface standard
Table A.6: Specifications of Front Panel
Keys 5 Keys (CH−/+, VOL−/+, STANDBY)
LEDs TV/STB, REMOTE, STANDBY
4-digit 7-segment LEDs Service number or Time display
RCU 39 Keys
Table A.7: Specifications of Power Supply
Input Voltage 90 – 250VAC, 50/60Hz
Type SMPS
Power Consumption Running: Max. 28W, Standby: 9W
Protection Separate internal fuse
The input shall have lightning protection
