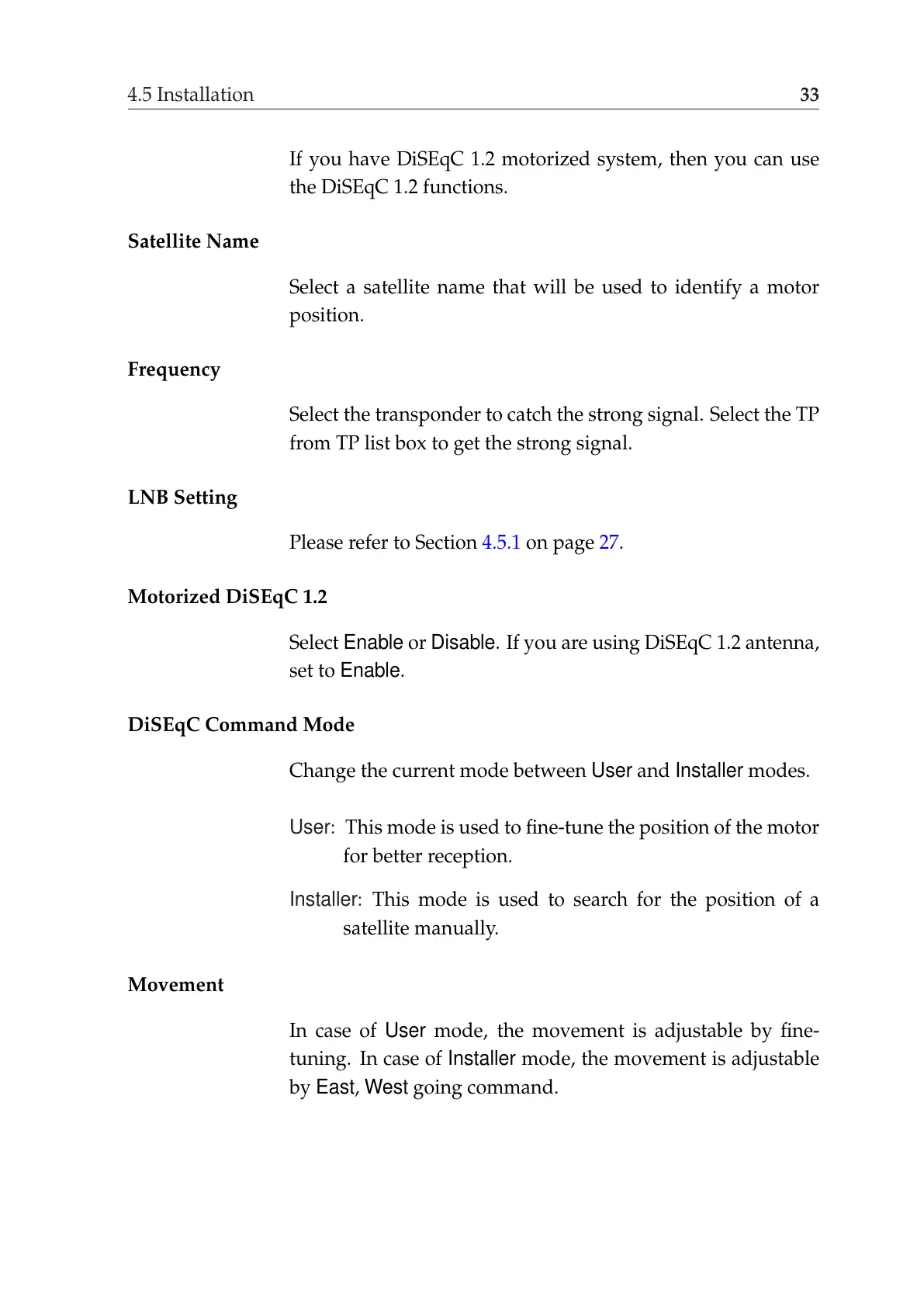

4.5 Installation 33
If you have DiSEqC 1.2 motorized system, then you can use
the DiSEqC 1.2 functions.
Satellite Name
Select a satellite name that will be used to identify a motor
position.
Frequency
Select the transponder to catch the strong signal. Select the TP
from TP list box to get the strong signal.
LNB Setting
Please refer to Section 4.5.1 on page 27.
Motorized DiSEqC 1.2
Select Enable or Disable. If you are using DiSEqC 1.2 antenna,
set to Enable.
DiSEqC Command Mode
Change the current mode between User and Installer modes.
User: This mode is used to fine-tune the position of the motor
for better reception.
Installer: This mode is used to search for the position of a
satellite manually.
Movement
In case of User mode, the movement is adjustable by fine-
tuning. In case of Installer mode, the movement is adjustable
by East, West going command.
