The wiring of laser 2 is similar.
Note：When “RF or RF (Tickle)” is selected, please set the PWM Frequency
according to the data sheet of the laser. Generally, PWM Frequency is 5000Hz.
And set the Laser Max parameter not larger than 95%, especially not to set as
100%, otherwise it works improperly.

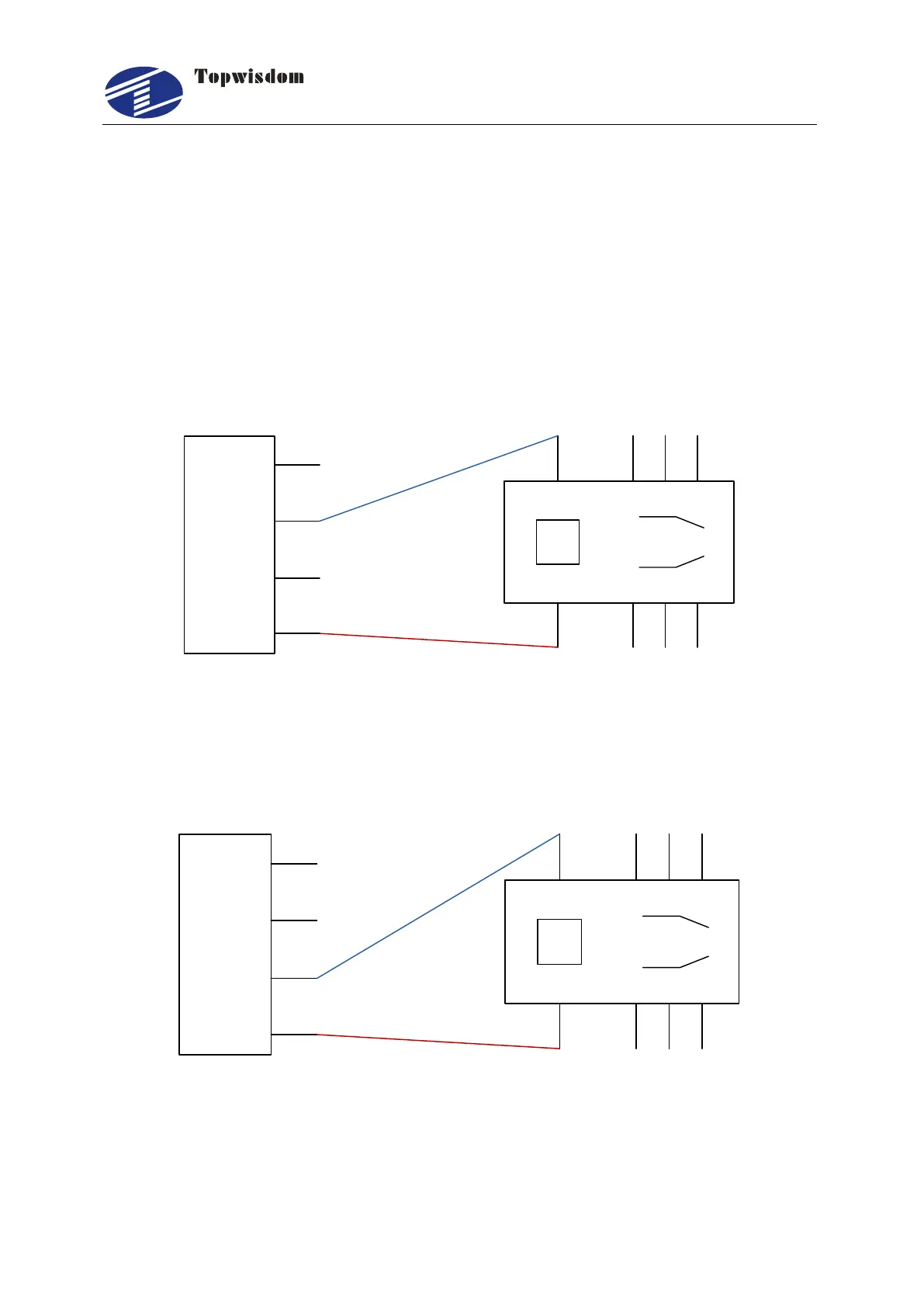

2.3.2.3 WIND Signal Wiring
GND
WIND
OUT1
+24V
24V Relay
Fig. 2-11
2.3.2.4 Completion / Feeding / Press / Work Status / Pen Signal Wiring
GND
WIND
OUT1
+24V
24V Relay
Fig. 2-12
2.3.2.5 Limit Switch Signal Wiring
