Topwisdom TL-410 - 2.4 Interface Instruction

泰智科技
Shenzhen Topwisdom Technology Co., Ltd
13
+5V
Lmt_X+
Lmt_X-
Lmt_Y+
Lmt_Y-
GND
5V
OUT
0V
Photoelectric limit switch
X Origin limit switch

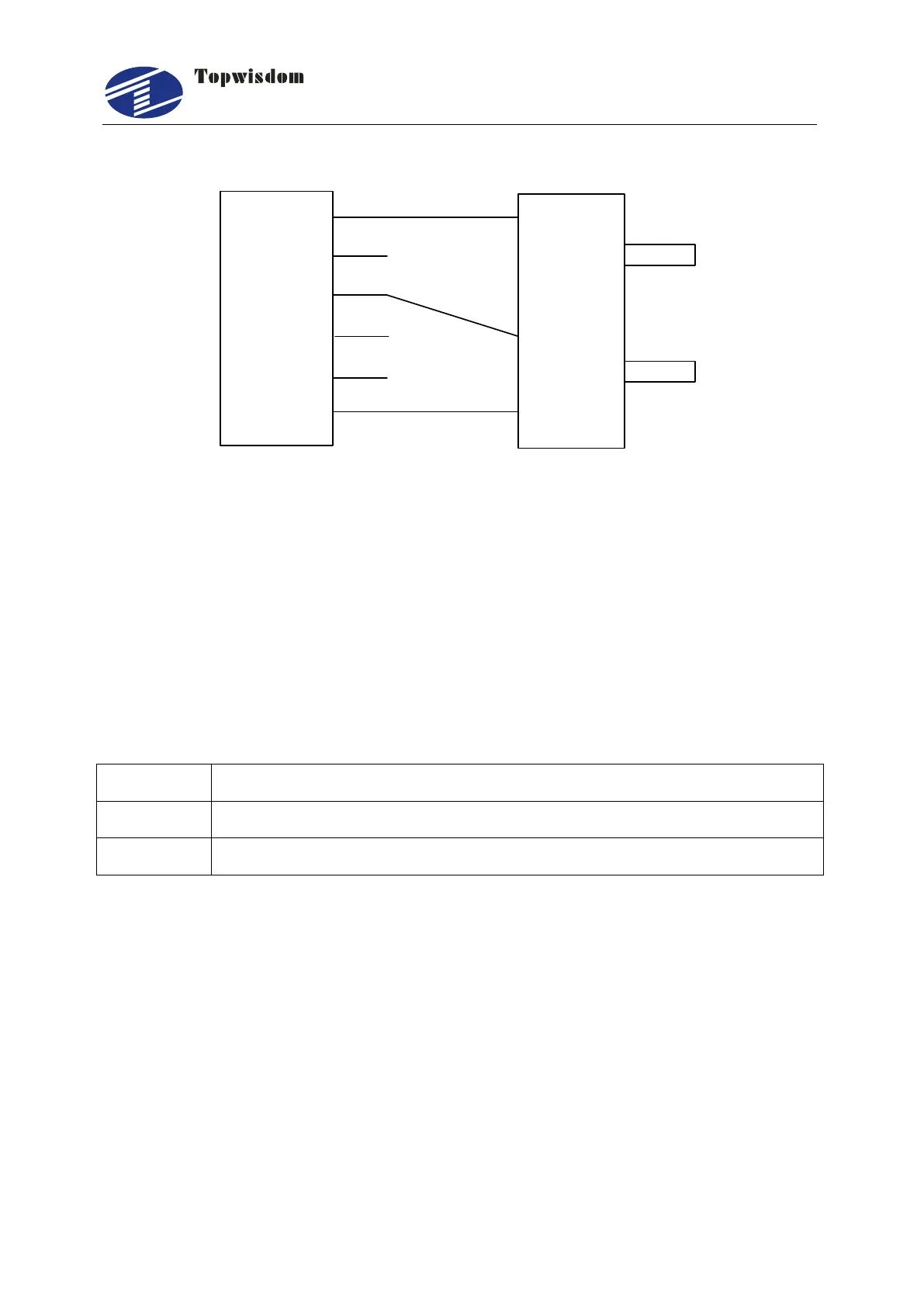

Fig. 2-13
Other limit switch wirings are similar.
2.4 Interface Instruction
2.4.1 Power Signal
 The system is 24V power supply
Pin
Definition
1
+24V DC 24V power source positive (input)
2
GND DC 24V power source grounding (input)
2.4.2 U-DISK Port
Label U-DISK, can directly insert the U disk to read and write.
2.4.3 PC Connection Port
Label PC connection port, can connect PC to read and write with USB.
