Ifed,removetheuppercoolantsplashguards
(backsplash)fromtheleandrighthandchiptrays.

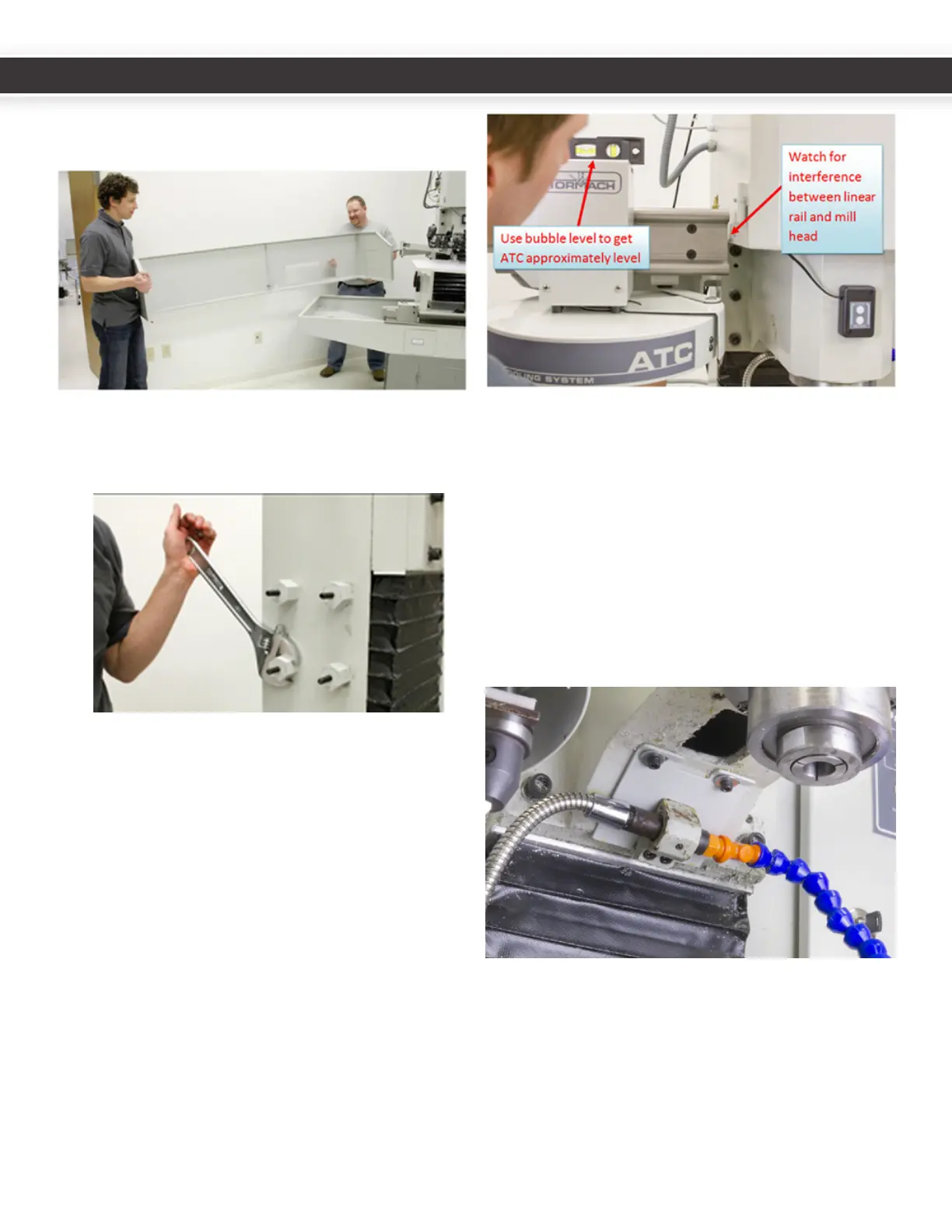

1. ThreadtheM8sideofhexstandosintomillcolumn
andghtensecurelywithawrench.
2. HangthetoolchangersquaretubemountontheM10
studs.Securewithangenutsandwashers.Theslots
arewiderthanthestudtoallowforminordeviaons
inholelocaons,andtofacilitateasmalldegreeoflt.
3. Withtheassistanceofanotherperson,fastentheATC
tothemountusingthe4M10socketheadcapscrews
andangenuts.
4. Duetostackupofparttolerances,exibility,and
backlashinthelinearbearings,thechangermight
seleslightly,orsagfromhorizontalonitsmounng
system.Thisisnormal.Compensateforminorsagby
lngthemountslightlysothetooltrayappearslevel
usingabubblelevel.
Note: Be sure to adjust the mount so that the mill
spindle cover sheet metal clears the ATC linear rail.




5. Reroutethecoolanthosebymounngthecoolant
hoseclamptotheincludedcoolantplate.Aachthe
platetotheundersideofthespindleheadusingthe
twothreadedholesontheundersideofthespindle
headcasng.
