7. OPTIONAL ACCESSORIES

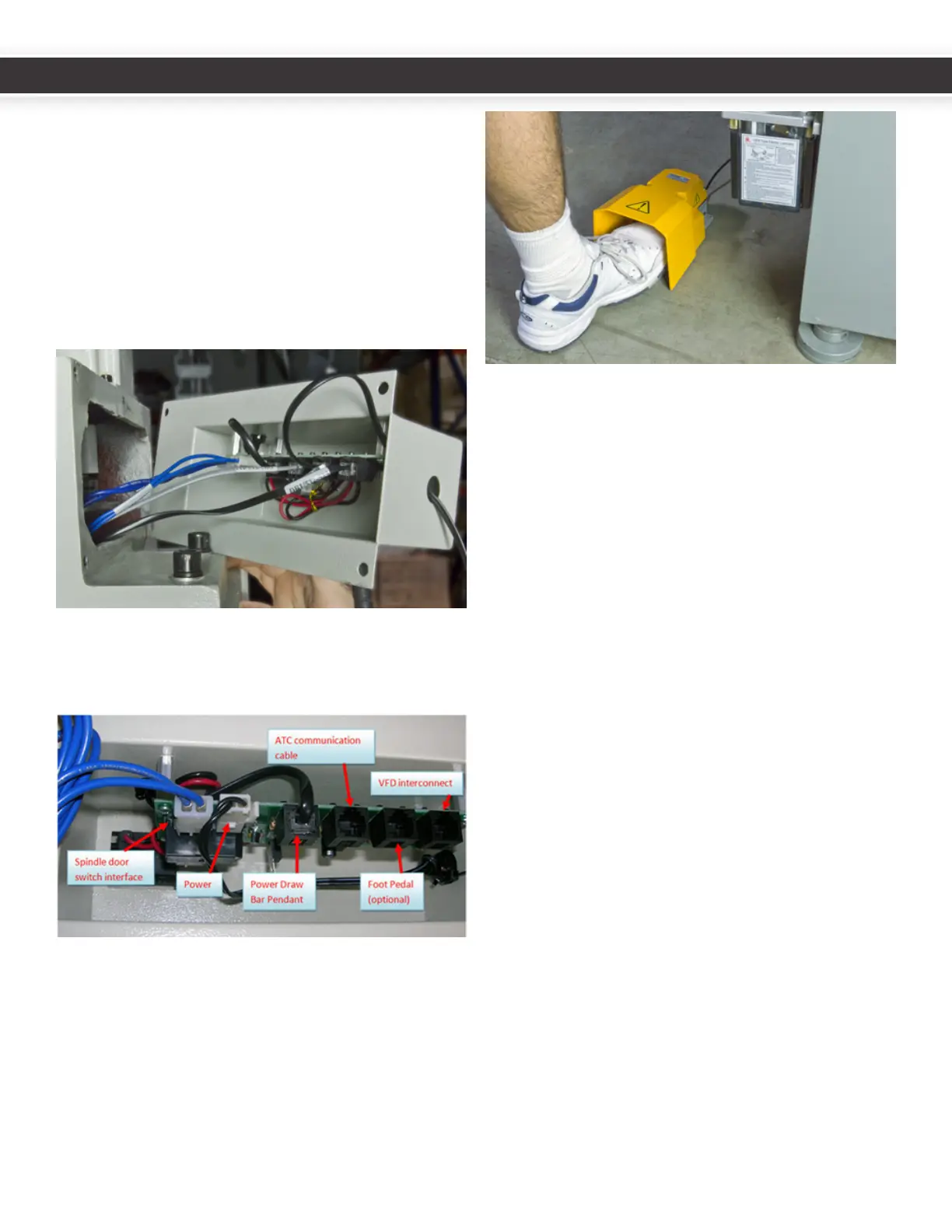

7.1 Foot Pedal Kit
TheFootPedalKit(PN31728)provideseasy
foot-activationofPowerDrawBarforhands-free
operation.
Toinstall:
1. Removethepowerdrawbarelectricalhousing.
2. PlugthefootpedalcableintotheFootPedalconnector
portonthepowerdrawbarcontrolboard(asshownin
thegurebelow).
3. Placethefoodpedalinaposionthatallowsforeasy
accessduringmilloperaon.
7.2 Filter Regulator
Lubricator (FRL)
TheFilterRegulatorLubricator(PN32457)is
recommendedforpropercondioningofsupplyairfor
boththePowerDrawBarandtheATC.
Note: See Chapter 4: Air Lines
supply requirements.
Toinstall:
1. Drilltwoholesintothebackofthesplashguard(or
whereverisconvenientformillswithoutasplash
guard).
2. SecuretheFRLtothemounngbracketwithyourown
equipment.
3. WrapthengsonthetwoNPTreducerswith
TeontapeandsecurethengsintotheFRLvalve
housings.
4. Splicetheairsupplylineandinsertaquickconnect
bushing(PN32212)toeachendoftheopenline.
5. ConnectthebushingstotheNPTreducers.
20
