QUICK REFERENCE − DECO 13A
en 300417 − 04/08 31
2.1.2 Reference Axis by Axis:
Note:
If there is a collision risk, first JOG axes before you reference them.

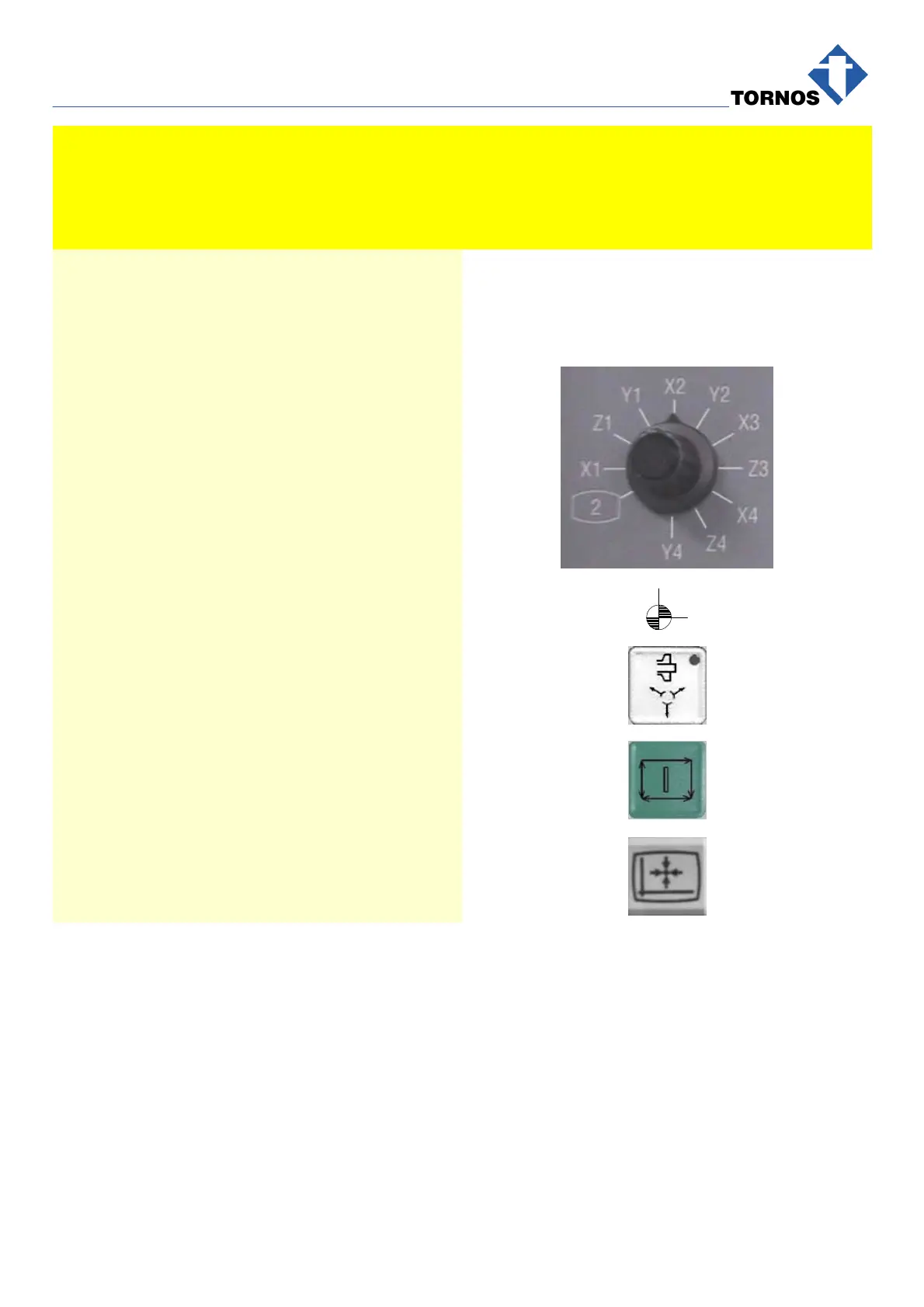

Actions Comments
1. Turn barfeeder thrust off to ref-
erence Z1
2. Select axis:
3. Selector on
4. Turn barfeeder thrust off.
if REF Z1, Z4.
Open collet regarding Z1 or Z4
5. Press CYCLE START
6. Press POS to check refer-
ences against data (in Page 5)
