INSTALLATION – MULTIDECO 26/6 – MULTIDECO 32/6i
300381 en – 06/02 Chap. 3.2.2 /6
∆ Caution!

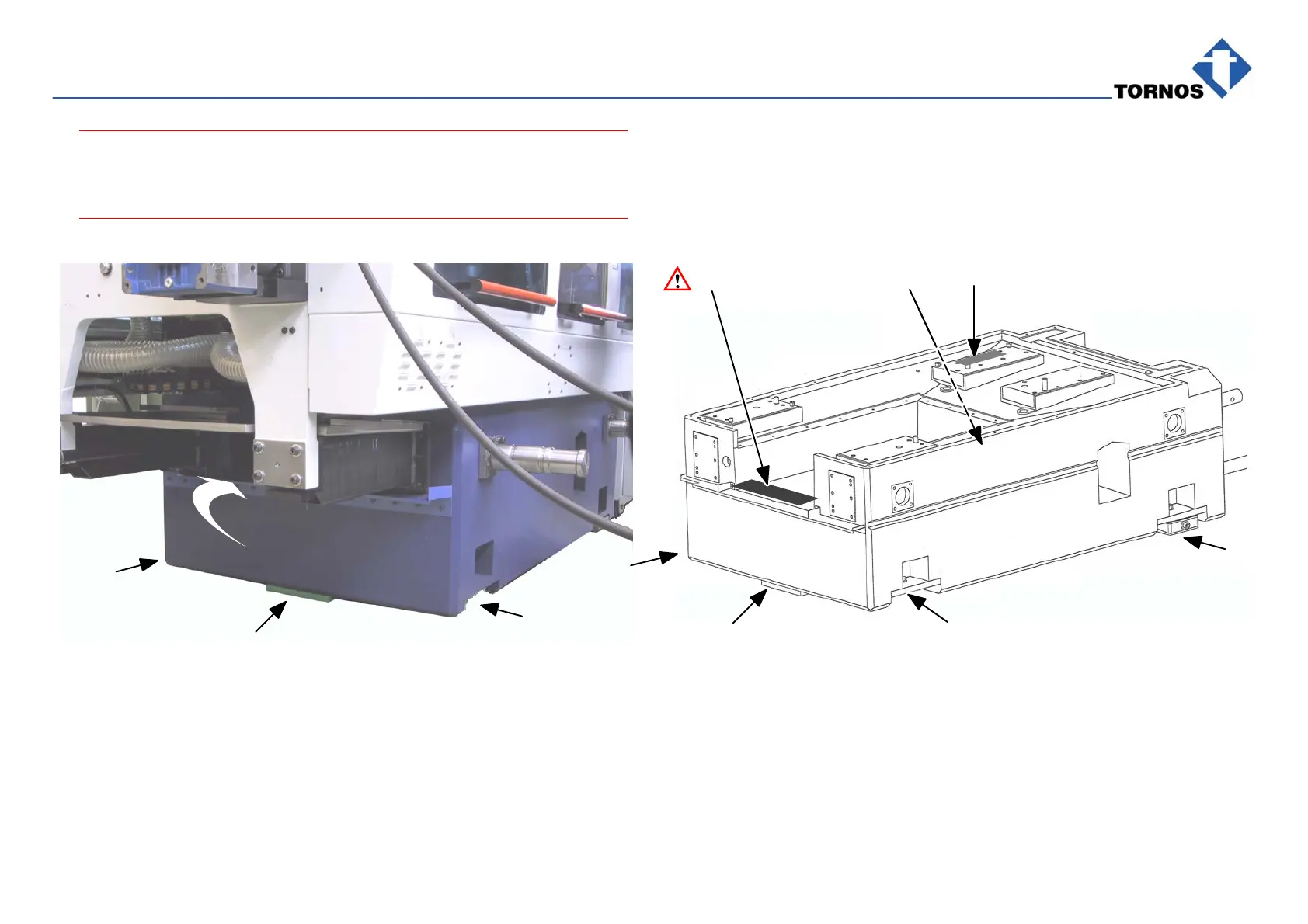

Once the machine is in position, remove the foam rubber protection 6
from the machine base near the coolant tank. (Figs. 301 & 302)
5
3
2
301
6
5 (2x 240950)
3
4
(217147)
1
302
2
6 Positioning of the level
1. The space nos. 2 and 3 (Figs. 301 & 302) must be relieved of any weight,
so that the machine base is borne only by element nos. 1, 4 and 5.
