tornos MULTIDECO Series - Installation Characteristics; Connection of Various Machine Peripherals

INSTALLATION – MULTIDECO 26/6 – MULTIDECO 32/6i
300381 en – 06/02 Chap. 3.5.2 /20
3.5.1 Installation characteristics
GENERAL CHARACTERISTICS
Components Description Characteristics
Machine power Average power output: approximately 60 kW
(depending on
machine usage)
Installed power: approximately 80 kVA
Supply Nominal voltage toler-
ances
+/– 10% 50 / 60 Hz
+ /– 1 Hz
Main circuit breaker at
machine inlet
125A
3.5.2 Connection of various machine peripherals
∆ Danger!
Trip and lock main circuit breaker, see safety regulations.
See Figs. 311, 312 and 313
Action Notes
Switch off switch cabinet by setting
QS0 to 0.
⇒ Note:
See also instructions:
“
SPECIFICATIONS FOR
Connect barfeeder to socket XS94
SPECIFICATIONS FOR
INSTALLATION OF A BARFE-
EDER”, and
Connect chip conveyor to socket
XS79, XS78 and XS38.
EDER , and
“SPECIFICATIONS FOR
INSTALLATION OF A CHIP
CONVEYOR”.
XS2 socket for
coolant motor
Power socket, MAYFRAN chip
conveyor XS79
MAYFRAN XS78
control
XS38 socket for
chip conveyor
Barfeeder XS94

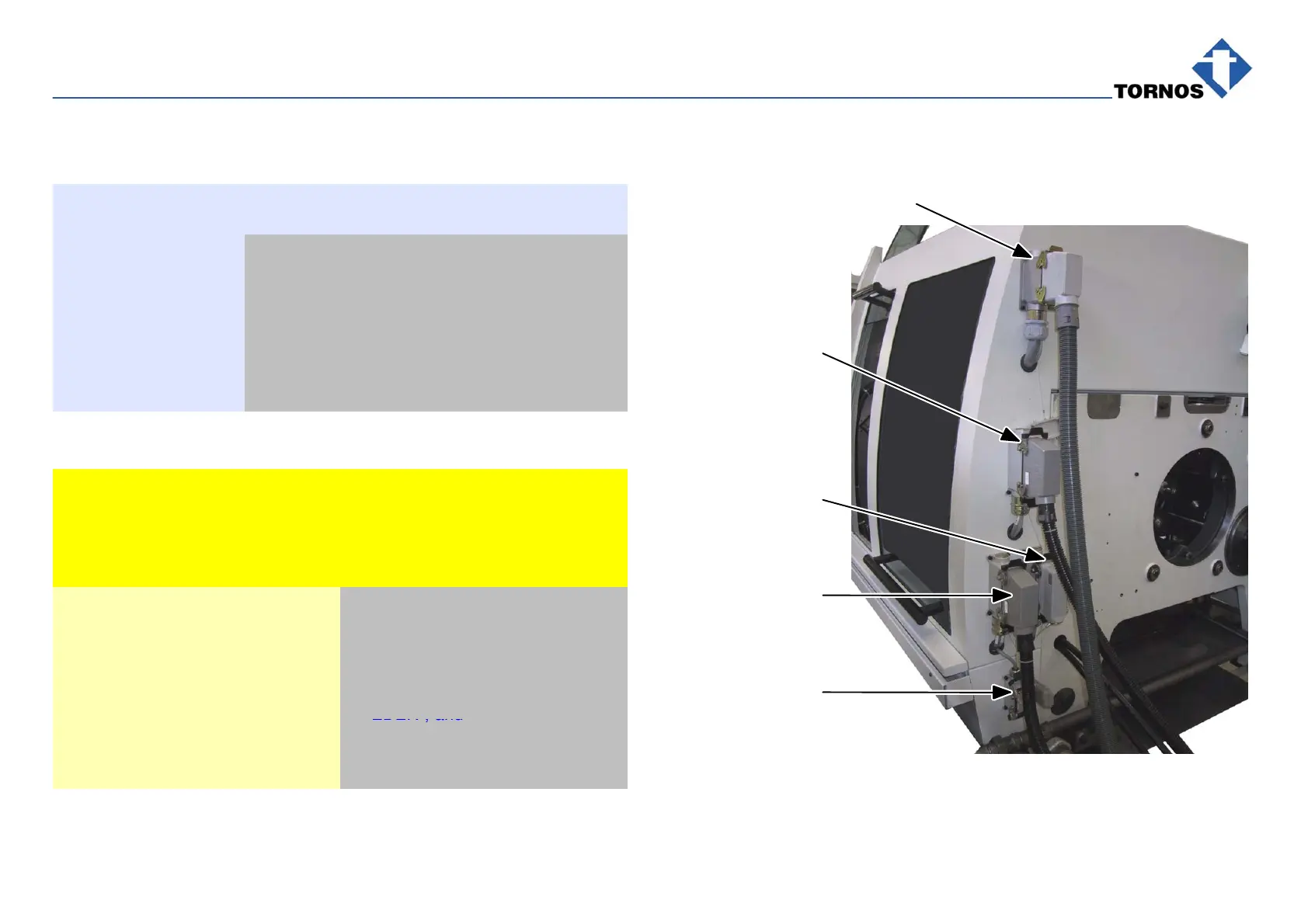

Fig. 313
