1

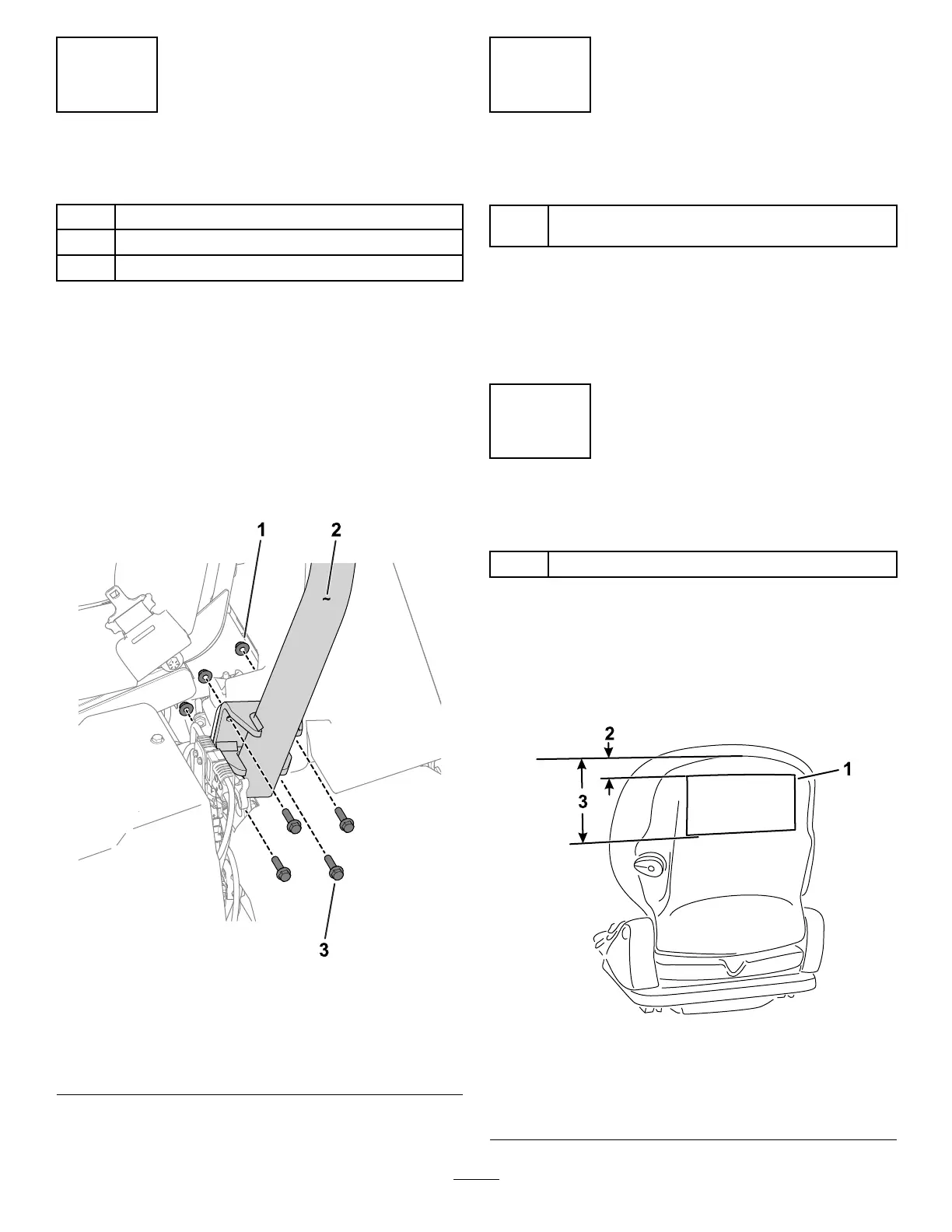

Installing the Roll Bar
Parts needed for this procedure:
1 Roll bar assembly
8
Hex-head bolt (3/8 x 1-1/2 inch)
8
Nut (3/8 inch)
Procedure
1. Remove the top crate support from the crate.
2. Remove the roll bar from the crate.
3. Use 8 hex-head bolts (3/8 x 1-1/2 inch) and
8 nuts (3/8 inch) to secure the roll bar to the
roll-bar brackets on each side of the machine
( Figure 3 ).
Note: Have an assistant help you to position
and secure the roll bar to the machine.
g277676
Figure 3
Left side of the machine shown
1. Nut (3/8 inch) 3. Hex-head bolt (3/8 x 1-1/2
inch)
2. Roll bar
4. T orque the fasteners to 51 to 65 N∙m (38 to 48
ft-lb).
2
Installing the Seat
Parts needed for this procedure:
1
Seat Kit (order separately; contact your authorized
T oro distributor)
Procedure
Acquire the Seat Kit (contact your authorized T oro
distributor) and refer to the kit Installation Instructions
to install the seat.
3
Installing the Service Decal
Parts needed for this procedure:
1
Service decal (Part Number 137-8052)
Procedure
Install the service decal (Part Number 137-8052) to
the seat; refer to Figure 4 for the premium seat (Model
04729) or Figure 5 for the standard seat (Model
04508).
g277096
Figure 4
Premium Seat (Model 04729)
1. Service decal 3. 18.5 cm (6.5 inches)
2. 2.5 cm (1 inch)
