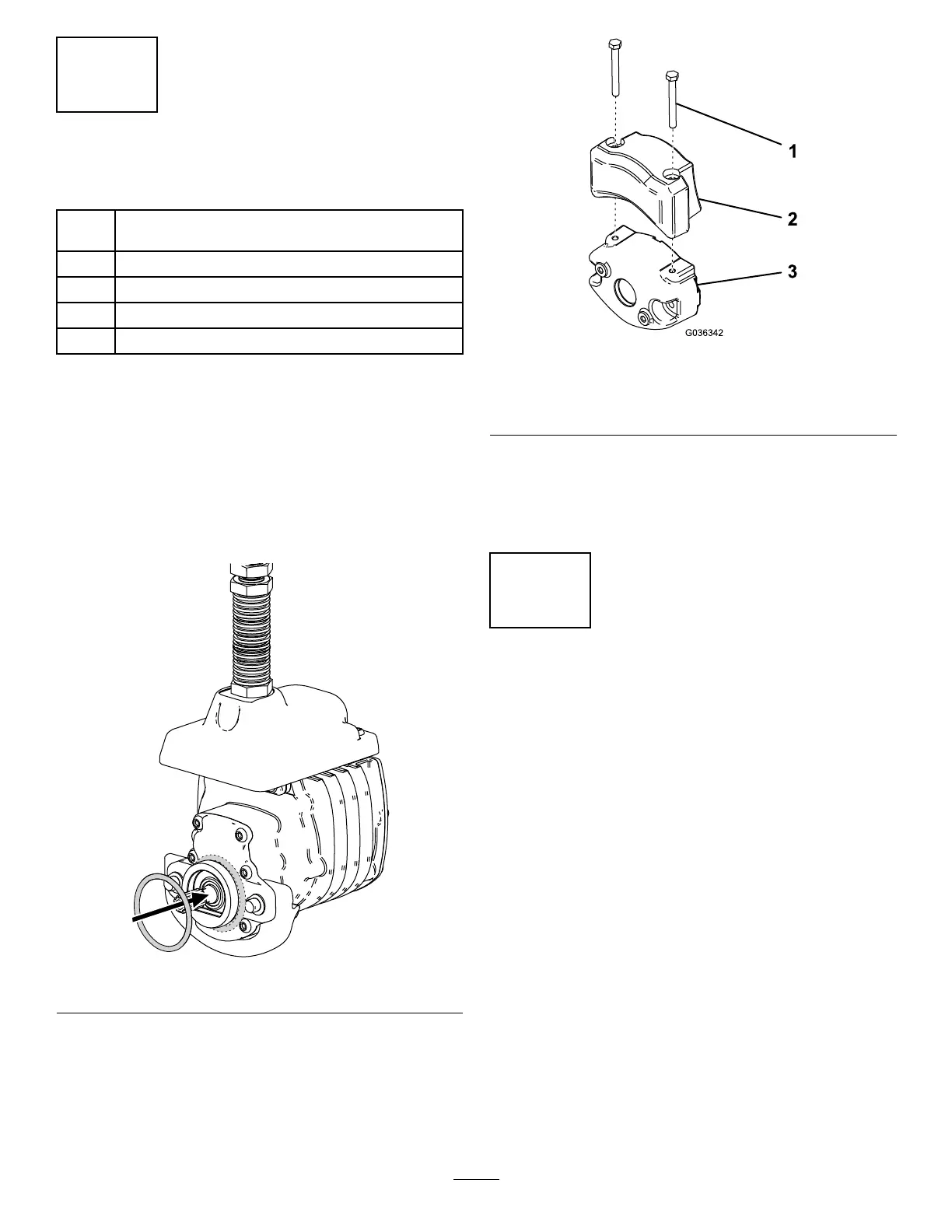

6
Installing the Cutting Units
Parts needed for this procedure:
3
Cutting unit (order separately; contact your authorized
T oro distributor)
3
Grass basket
3 Electric counterweight
6
Capscrew
3
O-ring
Procedure
1. Prepare the cutting units for installation; refer to
your cutting unit Operator s Manual .
2. Apply grease to the inside spline of the drive
coupler .
3. Install an O-ring to each reel motor as shown
in Figure 8 .
g256064
Figure 8
4. Secure the electrical counterweight to the
existing counterweight with 2 capscrews as
shown in Figure 9 .
g036342
Figure 9
1. Capscrew
3. Existing counterweight
2. Electrical counterweight
5. Install the cutting units; refer to Installing the
Cutting Units ( page 50 ) .
6. Install each grass basket onto the grass-basket
hooks.
7
Connecting the Main-Power
Connectors
No Parts Required
Procedure
Raise the connector cover and plug in the main-power
connectors located near the base of the roll bar on the
left side of the machine ( Figure 10 ).
14
