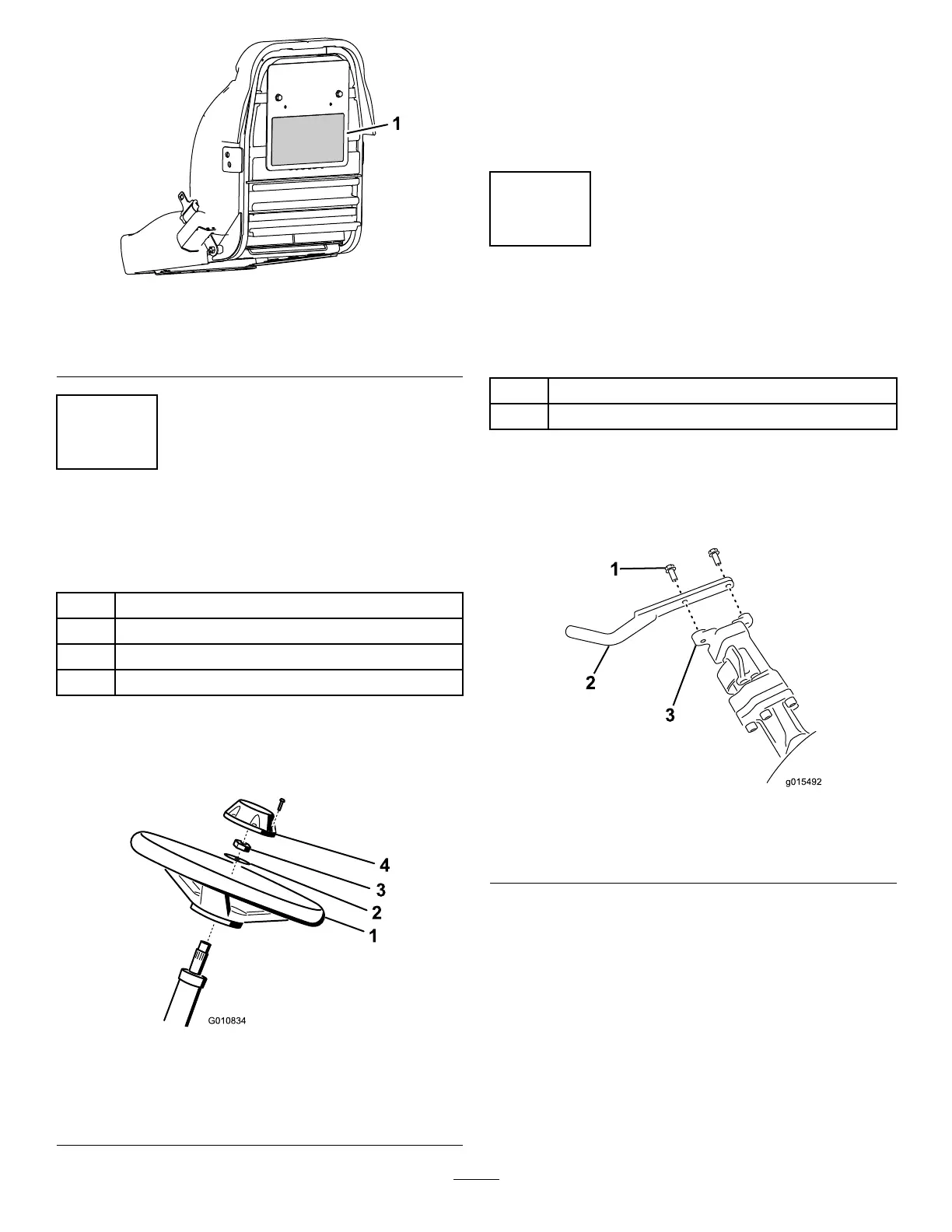

Figure 5
Standard Seat (Model 04508)
1. Service decal
4
Installing the Steering
Wheel
Parts needed for this procedure:
1
Steering wheel
1
Cap
1 W asher
1 Locknut
Procedure
1. Apply anti-seize compound to the steering shaft
(shown in Figure 6 ).
g010834
Figure 6
1. Steering shaft
4. Locknut
2. Steering wheel 5. Cap
3. W asher
2. Install the wheel to the steering shaft using the
washer and locknut ( Figure 6 ).
3. T orque the locknut to 27 to 35 N∙m (20 to 26
ft-lb).
4. Install the cap to the wheel ( Figure 6 ).
5
Installing the Grass-Basket
Hooks
Parts needed for this procedure:
6
Grass-basket hook
12 Flange bolts
Procedure
Use 12 ange bolts to install 6 grass-basket hooks
onto the ends of the suspension-arm bars ( Figure 7 ).
g015492
Figure 7
1. Flange bolt
3. Suspension-arm bar
2. Grass-basket hook
13
