Locating the Fuses
Locating the Fuses for the 60V
System

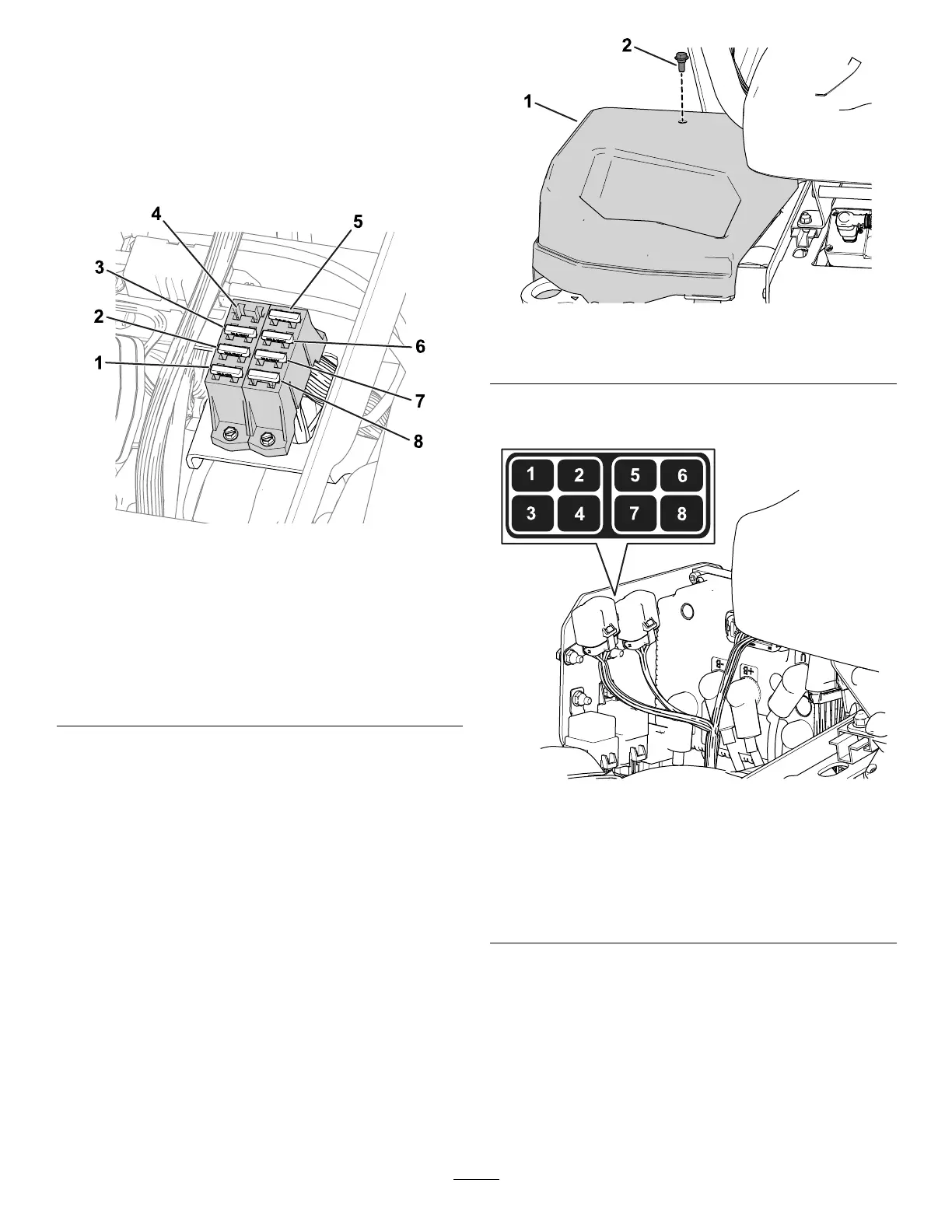

The fuses in the 60V electrical system are located
under the seat ( Figure 38 ).
g288685
Figure 38
1. Lift actuator (center cutting
unit)—10 A
5. 48V logic relay—5 A
2. Lift actuator (left cutting
unit)—10 A
6. Steering unit—30 A
3. Lift actuator (right cutting
unit)—10 A
7. DC/DC converter—10 A
4. Open slot 8. W ork lights (optional
kit)—10 A
Locating the Fuses for the 12V
System
The fuses for the 12V electrical system are located
under the cover ( Figure 39 ) on the right side of the
machine.
g279712
Figure 39
1. Right-side cover 2. Bolt
Refer to Figure 40 for a description of each fuse on
the fuse blocks:
g27971 1
Figure 40
1. Parking brake/key
switch/logic relay—7.5
A
5. Open slot
2. Open slot 6. Spare fuse—7.5 A
3. Brake actuator—10 A
7. DC/DC converter—15 A
4. T elematics—2 A
8. TEC controller—2 A
44
