PositioningtheSeat
ChangingtheSeatPosition
Theseatcanmoveforwardandbackward.Positiontheseat
whereyouhavethebestcontrolofthemachineandaremost
comfortable.
1.Toadjust,movetheleversidewaystounlocktheseat
(Figure54).

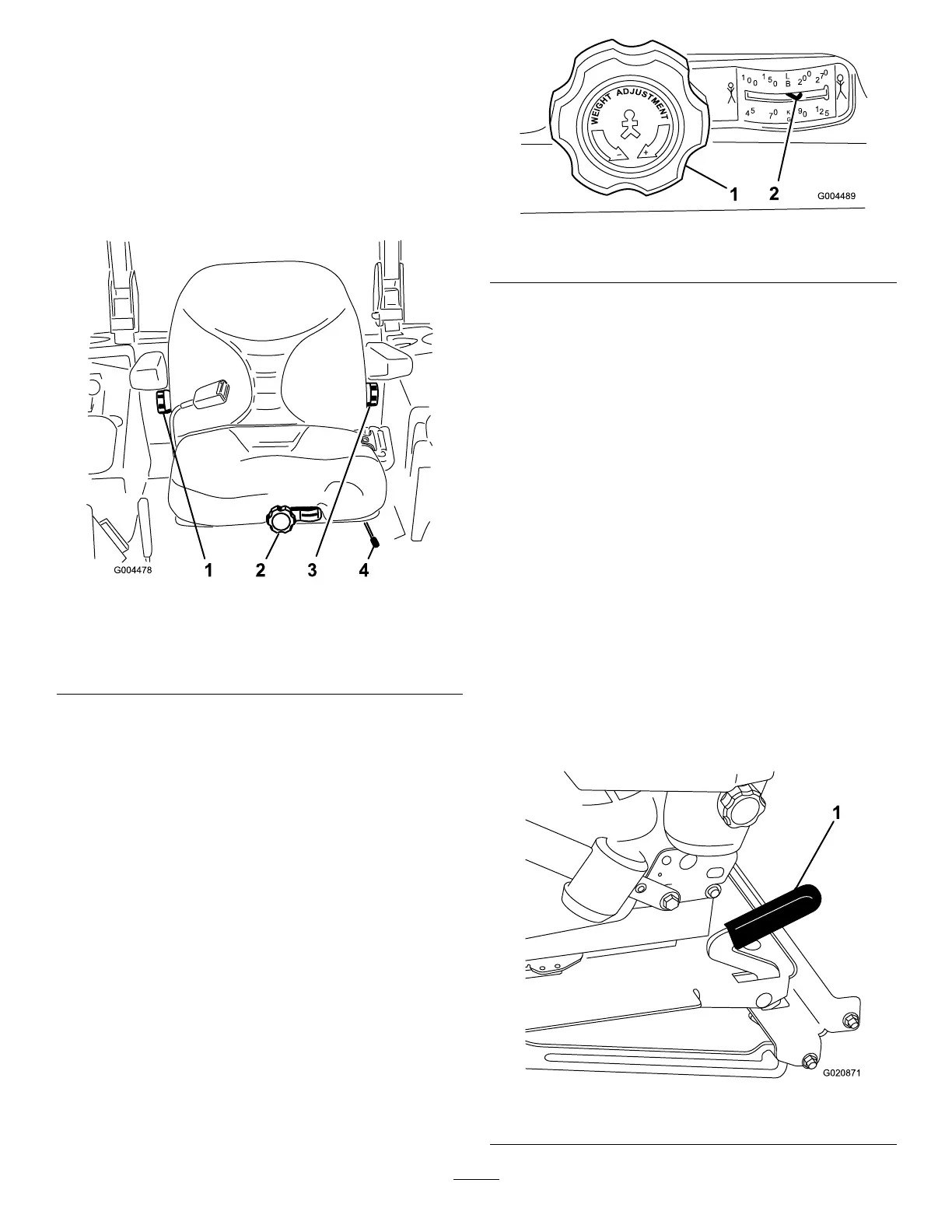

Figure54
1.Backrestknob3.Lumbarsupport
adjustmentknob
2.Seatsuspensionknob4.Seatpositionadjustment
lever
2.Slidetheseattothedesiredpositionandreleaselever
tolockinposition.
3.Verifythattheseathaslockedintoplacebyattempting
tomoveitbackandforth.
ChangingtheSeatSuspension
Theseatcanbeadjustedtoprovideasmoothandcomfortable
ride.Positiontheseatwhereyouaremostcomfortable.
Withoutsittingontheseat,turntheknobinfronteither
directiontoprovidethebestcomfort(
Figure54).
Figure55
1.Seatsuspensionknob2.Operatorweightsetting
ChangingtheBackPosition
Thebackoftheseatcanbeadjustedtoprovideacomfortable
ride.Positionthebackoftheseatwhereitismost
comfortable.
Toadjustit,turntheknob,undertheright-sidearmrest,in
eitherdirectiontoprovidethebestcomfort(Figure54).
ChangingtheLumbarSupport
Thebackoftheseatcanbeadjustedtoprovideacustomized
lumbarsupportforyourlowerback.
Toadjustit,turntheknob,undertheleft-sidearmrest,in
eitherdirectiontoprovidethebestcomfort(Figure54).
UnlatchingtheSeat
Toaccessthehydraulicandothersystemsundertheseat,
unlatchtheseatandswingitforward.
1.Usetheseatpositionadjustmentlevertoslidetheseat
allthewayforward.
2.Pulltheseatlatchforwardandliftuptounlatchthe
seat(
Figure56).
G020871
1
Figure56
1.Seatlatch
