Toro 30381 - Controls System Maintenance; Adjusting the Control Lever Neutral Interlock Switch

drivebelttoreleasethebelttensionandallowthebelt
tobeslippedoffthepulleys.

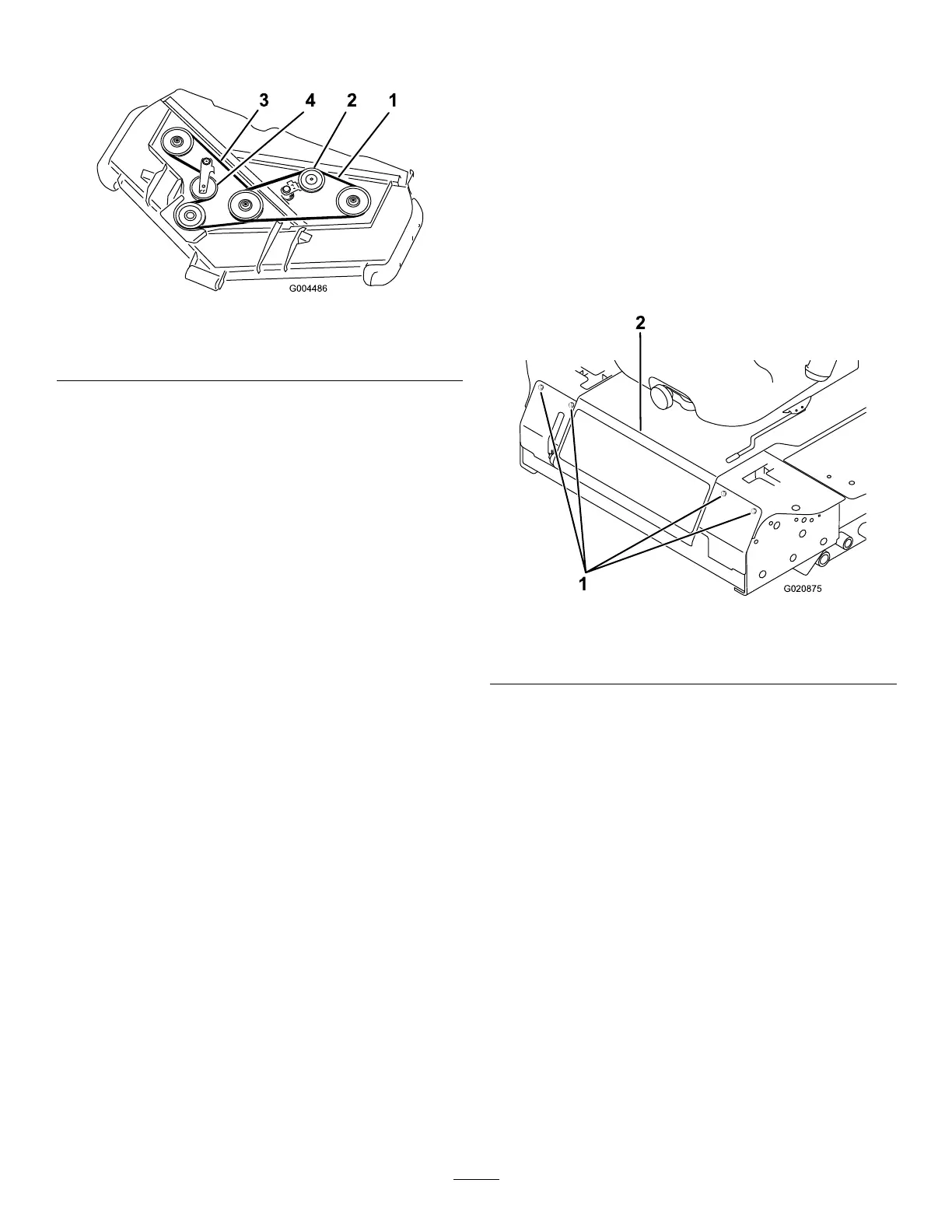

Figure78
1.Topbelt3.Bottombelt
2.Top-idlerpulley4.Bottom-idlerpulley
4.Usingabreakerbarorsimilartool,movetheidler
pulleyforthebottombelt(Figure78)awayfromthe
bottomdrivebelttoreleasethebelttensionandallow
thebelttobeslippedoffthepulleys.
5.Routeanewbeltaroundthegearboxpulley,bottom
spindlepulleys,andidlerpulleyassemblyasshownin
Figure78.
6.Routeanewbeltaroundthetopspindlepulleysand
idlerpulleyassemblyasshowninFigure78.
7.Installthebeltcovers.
ControlsSystem
Maintenance
AdjustingtheControlLever
NeutralInterlockSwitch
1.Stopthemachine,movethedeckliftswitchfullyinto
theneutral-lockedposition,settheparkingbrake,and
removetheignitionkey.
2.Removetheboltssecuringthefrontpanelandremove
thepanel(Figure79).
1
2
G020875
Figure79
1.Bolts
2.Controlpanel
3.Loosenthe2screwssecuringtheinterlockswitch
(Figure80).
56
