5.Threadthestopboltallthewayin(awayfromthe
controllever).
6.Pushthecontrolleverallthewayforwarduntilitstops
andholditthere.
7.Threadthestopboltout(towardthecontrollever)
untilthereisagapof0.060inch(1.5mm)betweenthe
headofthestopboltandthecontrollever.
8.Tightenthejamnuttosecurethestopboltinplace.
9.Repeatsteps4through8fortheothercontrollever.
10.Installthefrontpanel.
Note:Ifyouwishtoreducethemaximummachinespeed,
setthespeedforbothcontrolleversasdirectedabove,then
backeachstopboltoutanequalamounttowardthecontrol
leveruntilyoureachthemaximumspeedyoudesire(youwill
likelyhavetotestyouradjustmentseveraltimes).Ensurethat
themachinedrivesstraightanddoesnotturnwhenboth
controlleversarepushedallthewayforward.Ifthemachine
turns,youdonothavethestopboltsevenlysetandwillneed
toadjustthemfurther.
AdjustingtheTracking
1.DisengagethePTO,movethemotioncontrolleversto
theneutrallockedpositionandsettheparkingbrake.
2.MovethethrottlelevertotheSlowposition,stopthe
engine,removethekey,andwaitforallmovingpartsto
stopbeforeleavingtheoperatingposition.
3.Loosentheboltssecuringthecontrollevers(Figure87)

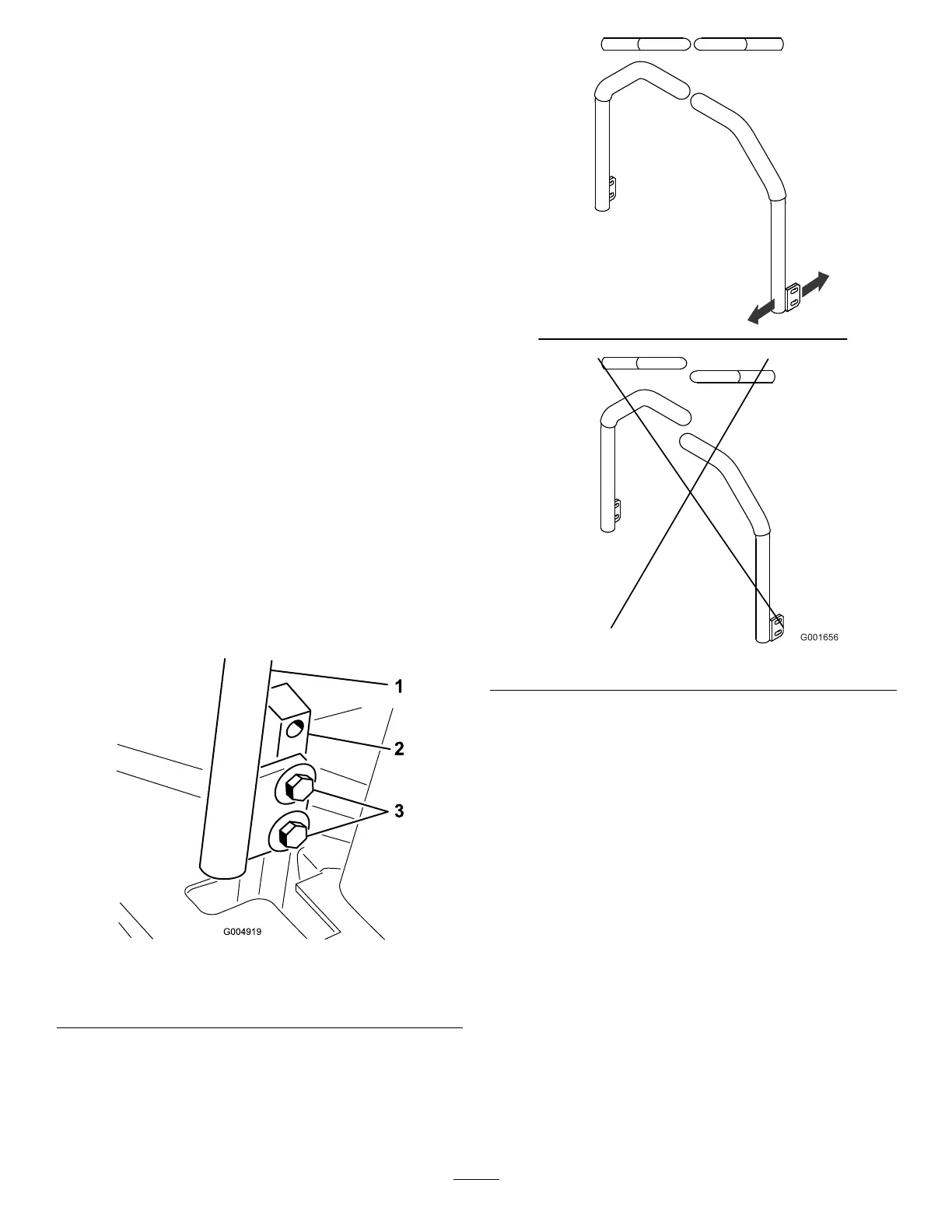

Figure87
1.Controllever
3.Bolts
2.Control-leverpost
4.Havesomeonepushthecontrol-leverposts(notthe
controllevers)allthewayforwardintothemaximum
speedpositionandholdthemthere.
5.Adjustthecontrolleverssothattheylineup(
Figure88)
andtightenthebolts,securingtheleverstotheposts.
Figure88
60
