Toro 30383 - Engine Maintenance; Air Cleaner Maintenance

•Hydrauliccylinderpivotpins—2(Figure31)
•Liftarmpivot—1(Figure31)

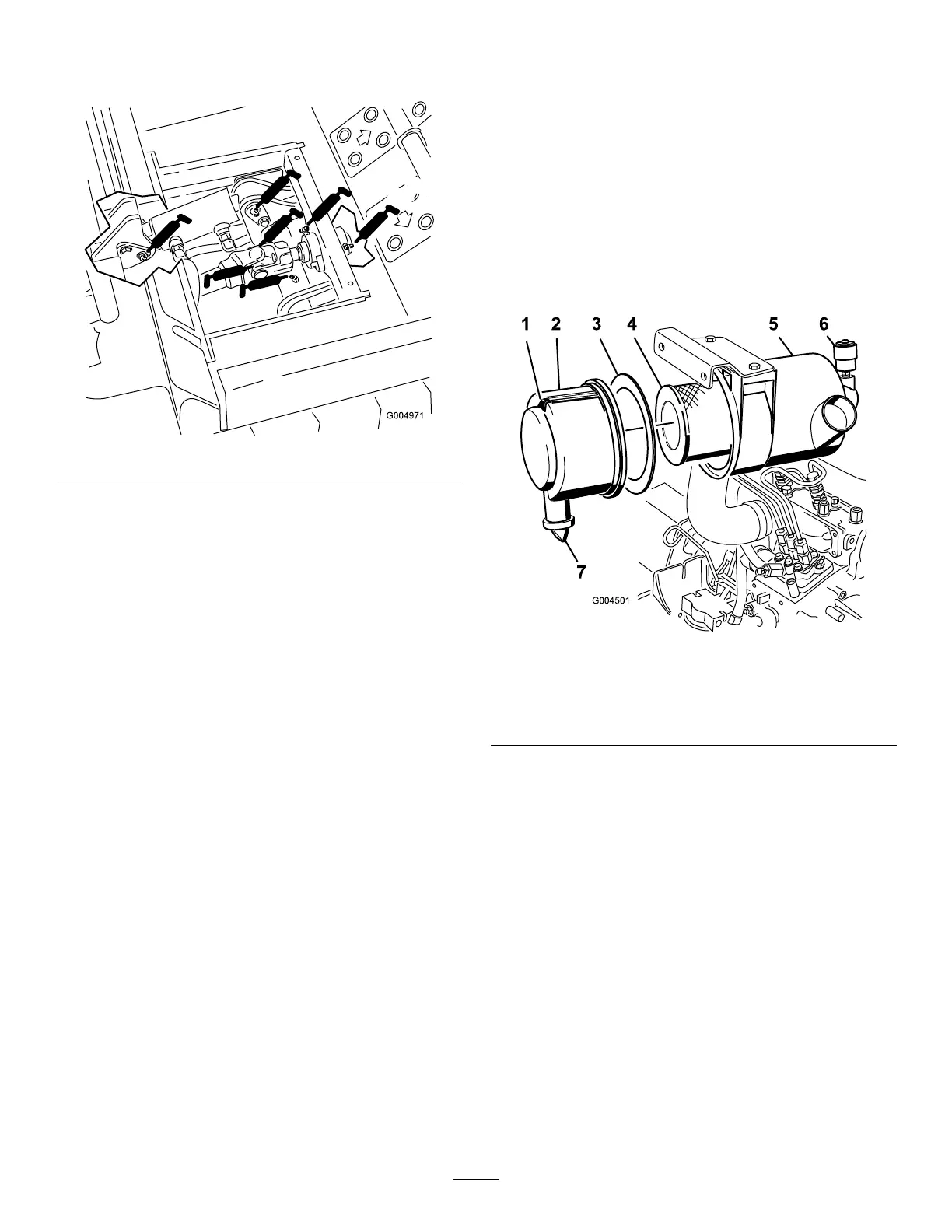

G004971
Figure31
EngineMaintenance
AirCleanerMaintenance
•Checktheaircleanerbodyfordamagewhichcould
possiblycauseanairleak.Replaceadamagedair
cleanerbody.Checkthewholecleanairintake
systemforleaks,damage,orloosehoseclamps.
•Servicetheaircleanerlterwhentheaircleaner
indicator(Figure32)showsredorevery400
hours(morefrequentlyinextremelydustyordirty
conditions).Donotoverservicetheairlter.
G004501
123456
7
Figure32
1.Aircleanerlatch5.Aircleanerbody
2.Aircleanercover6.Aircleanerindicator
3.Gasket
7.Rubberoutletvalve
4.Filter
•Besurethecoverisseatedcorrectlyandsealswith
theaircleanerbody.
ServicingtheAirCleaner
ServiceInterval:Every400hours
1.Pullthelatchoutwardandrotatetheaircleaner
covercounter-clockwise(Figure32).
2.Removethecoverfromtheaircleanerbody
(Figure32).
3.Beforeremovingthelter,uselowpressure
air(40psi,cleananddry)tohelpremovelarge
accumulationsofdebrispackedbetweenoutsideof
primarylterandthecanister.
Thiscleaningprocesspreventsdebrisfrommigrating
intotheintakewhentheprimarylterisremoved.
29
