GlowPlugLight(OrangeLight)
Theglowplugindicatorlightturnsonwhentheignition
switchisturnedtotheOnposition.Itremainslitfor6
seconds.Whenthelightturnsoff,theengineisready
tobestarted.
EngineCoolantTemperatureWarning
Light
Thislightglowsandthepoweredattachmentswillstop
iftheenginecoolanttemperatureishigh.Ifthemachine
isnotstoppedandthecoolanttemperaturerisesanother
20°F,theenginewillstop.
Important:Iftheattachmentshutsdownandthe
temperaturewarninglightison,pushPTOknob
down,drivetoasafeatarea,movethethrottle
levertotheSlowposition,movethemotioncontrol
leversintotheneutrallockedposition,andengage
theparkingbrake.Allowtheenginetoidlefor
severalminuteswhileitcoolstoasafelevel.Stop
theengineandcheckthecoolingsystem;referto
CheckingtheCoolingSysteminCoolingSystem
Maintenance.
ChargeIndicator
Illuminateswhenthesystemchargingcircuit
malfunctions.
OilPressureWarningLight
Theoilpressurewarninglightglowswhentheoil
pressureintheenginedropsbelowasafelevel.Iflow
oilpressureeveroccurs,stoptheengineanddetermine
thecause.Repairthedamagebeforestartingtheengine
again.
FuelGauge
Thefuelgauge(Figure6)indicatesthequantityoffuel
remaininginthefueltanks.

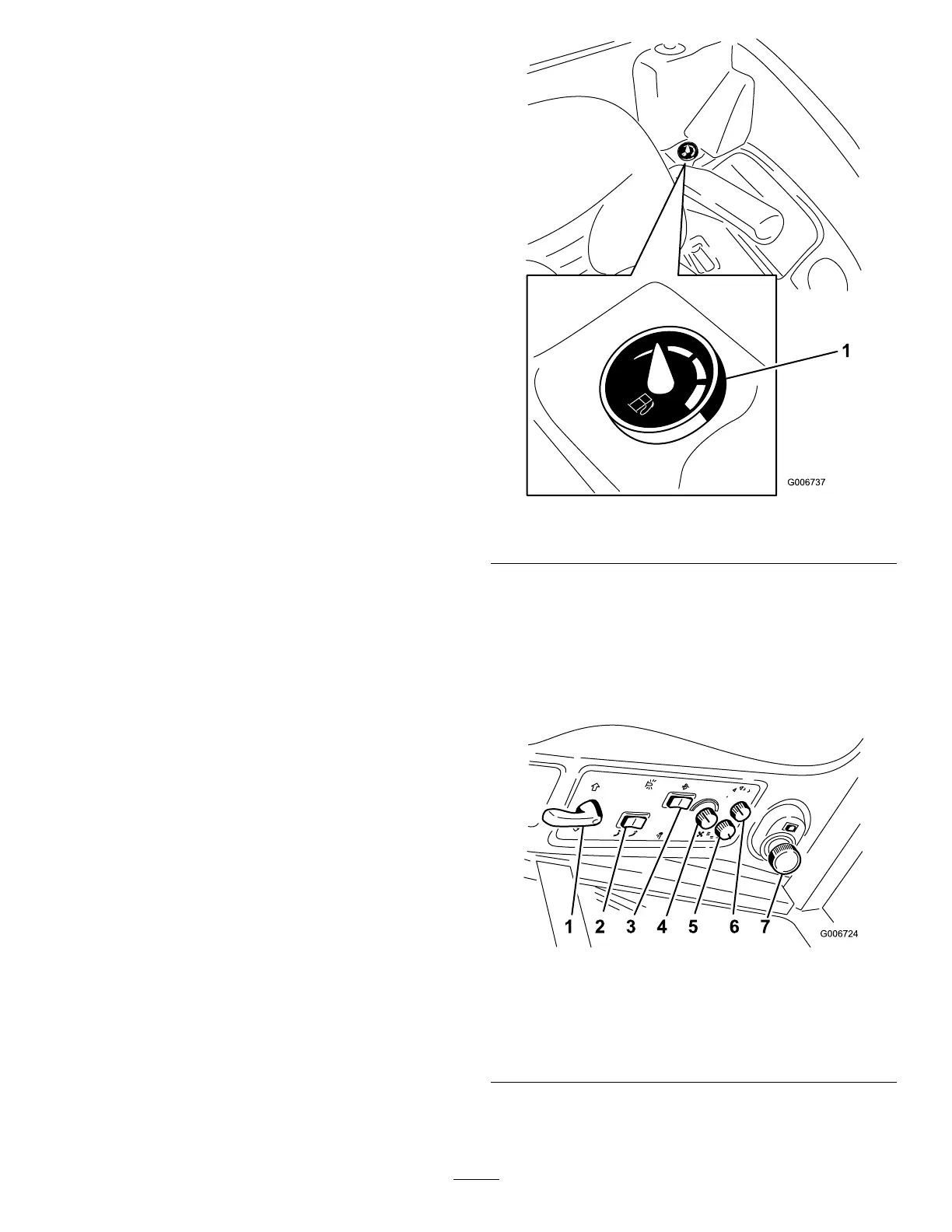

Figure6
1.Fuelgauge
SignalLightSwitch
Turnthesignallightswitch(Figure7)totheleftto
activatetheleftturnsignal,orrighttoactivatetheright
turnsignal.Whennishedturning,returntheswitch
totheOffposition.
Figure7
1.Signallightswitch
5.Fancontrolknob
2.Snowthrowerdeector
controlswitch
6.Lightscontrolknob
3.Windshieldwiperswitch
7.Cablight
4.Temperaturecontrolknob
