SnowthrowerDeectorControlSwitch
Pressthesnowthrowerdeectorcontrolswitch
(Figure7)forwardtolowerthesnowthrowerdeector,
orrearwardtoraisethedeector.
Note:Thisswitchoperatesonlywhenasnowthrower
attachmentisinstalled.
WindshieldWiperSwitch
•Presstherearsideofthewindshieldwipeswitchto
activatethewipers.
Important:Ifthewindshieldisicyorsnow
covered,scrapeitoffrstbeforeusingthe
wipers.Ifthewipersarecoverediniceand/or
arefrozentothewindshield,removetheice
beforeusingthewipers.
•Pressthefrontsideoftheswitchtomomentarily
activatethewipers.
Note:IfyouhavetheoptionalWasherKitinstalled,
thissideoftheswitchwillalsoactivateastreamof
washeruidontothewindowforaslongasyou
presstheswitch.
TemperatureControlKnob
Turnthisknobtoactivateandsetthetemperatureofthe
heater.Blueindicateslesstonoheat,andredindicates
moretofullheat.
FanControlKnob
Thisknobcontrolsthespeedofthefan,whichblows
airfromtheheaterthroughtheventslocatedinthe
ceilingofthecab.Theknobhas4positions:Off,Low,
Medium,andHigh.
LightsControlKnob
Thisknobcontrolsthelightsontheoutsideofthecab.
Ithasthefollowingpositions:
•Off
•Hazardlights—thehazardlightsash.
•Hazardlights/Operatinglights—thehazardlights
ashandtheoperatinglights(headlightsandtail
lights)shine.
•Headlights—theoperatinglightsshine.
CabinLight
Presstheswitchnexttothecabinlight(Figure7)toturn
thelightonandoff.Youcanadjustthelighttoaima
differentpartsofthecab.
AttachmentControlPedals
Usetheattachmentcontrolpedals(Figure8)tocontrol
thephysicalorientationoftheattachment.Usetheleft
pedaltoraiseandlowertheattachment.Usetheright
pedaltoswingtheattachmenttotherightorleft.
Note:Therightpedalisnotusedonallattachments.
Also,onsnowthrowers,onlythechuteswingsrightand
left.

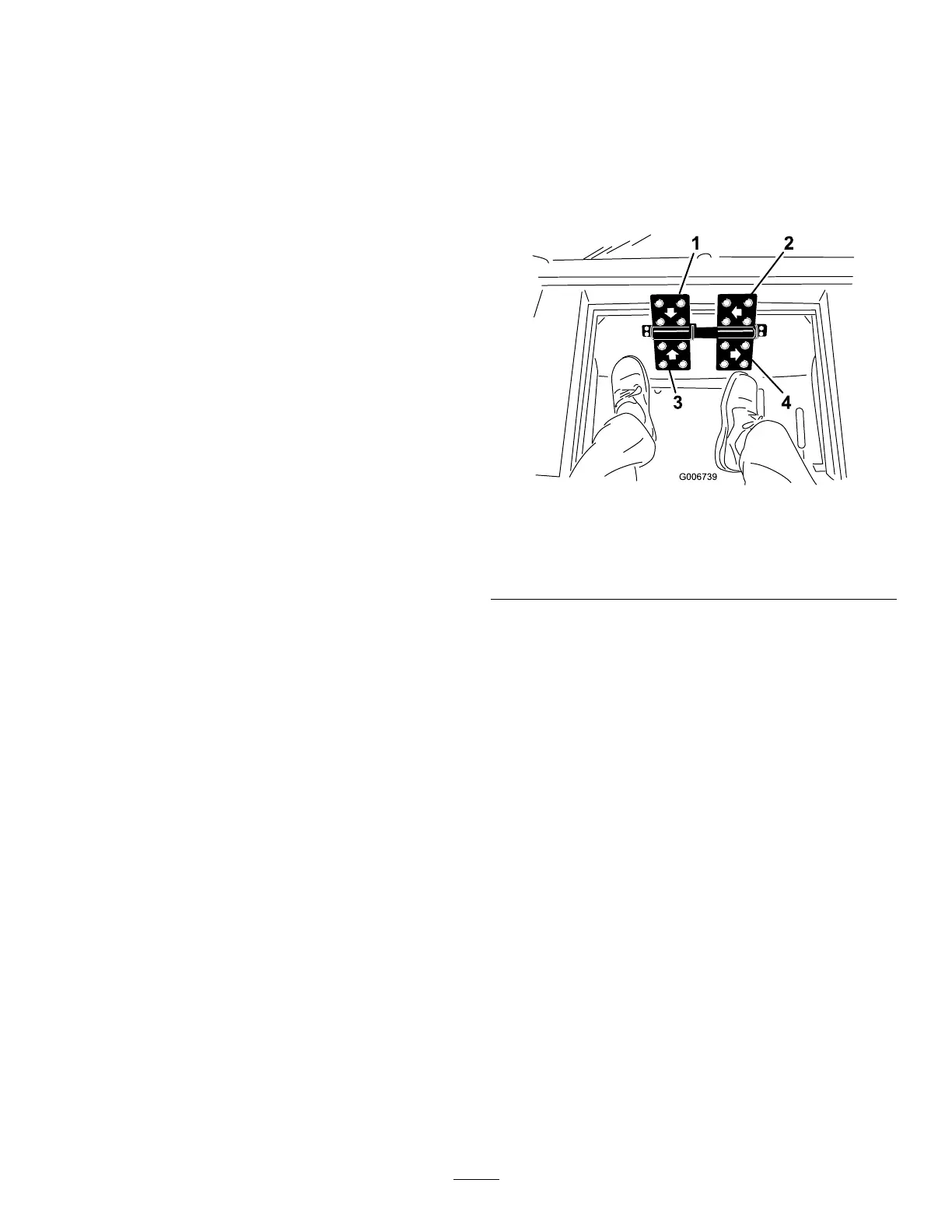

Figure8
1.Presstolowerthe
attachment
3.Presstoraisethe
attachment
2.Presstoswingthe
attachmenttotheleft
4.Presstoswingthe
attachmenttotheright
WindowLatches
Openthefront,rightsidewindowandrearsidewindows
byliftinguponthewindowlatchesandpushingout
(Figure9).
