• Lo w er link pi v ot (2) ( Figure 38 )
• Latc h pi v ot (2) ( Figure 38 )
Note: Dec k ma y ha v e to be raised to expose the
g rease fittings for the lo w er link pi v ot and the
latc h pi v ot.
• Castor fork shaft bushings (2) ( Figure 39 )
• Spindle shaft bearings (3) ( Figure 40 )
• Idler ar m pi v ot bushings (2) ( Figure 40 )

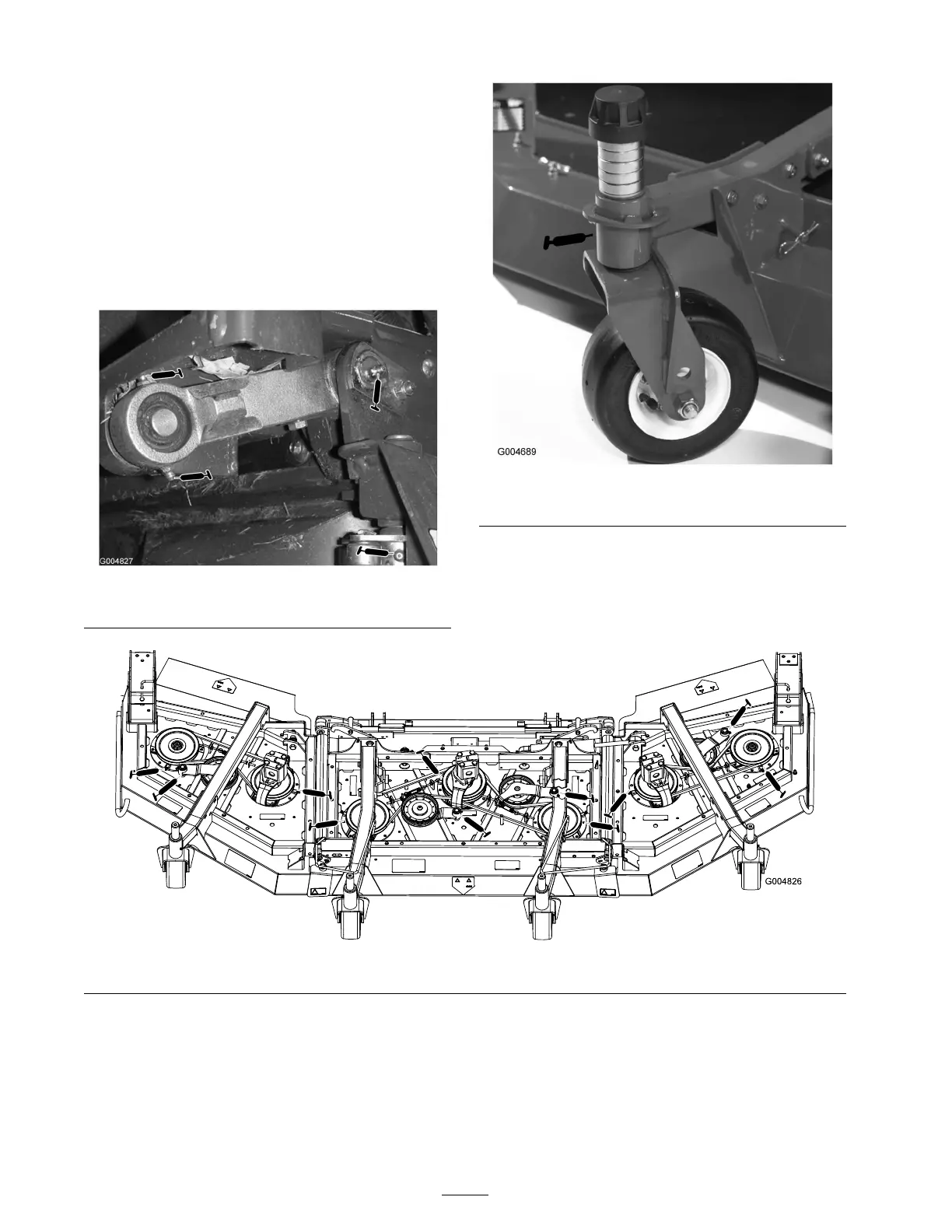

Figure 38
Figure 39
Figure 40
Center Lift Assemblies
• Lift ar m bushings (2) ( Figure 41 )
• Lift cylinder bushings (4) ( Figure 41 )
• Lift ar m ball joints (2) ( Figure 42 )
36
