Toro 30695 - Premaintenance Procedures; Lubrication; Greasing the Bearings and Bushings

CAUTION
Ifyouleavethekeyintheignitionswitch,someonecouldaccidentlystarttheengineandseriouslyinjure
youorotherbystanders.
Removethekeyfromtheignitionbeforeyoudoanymaintenance.
Figure28

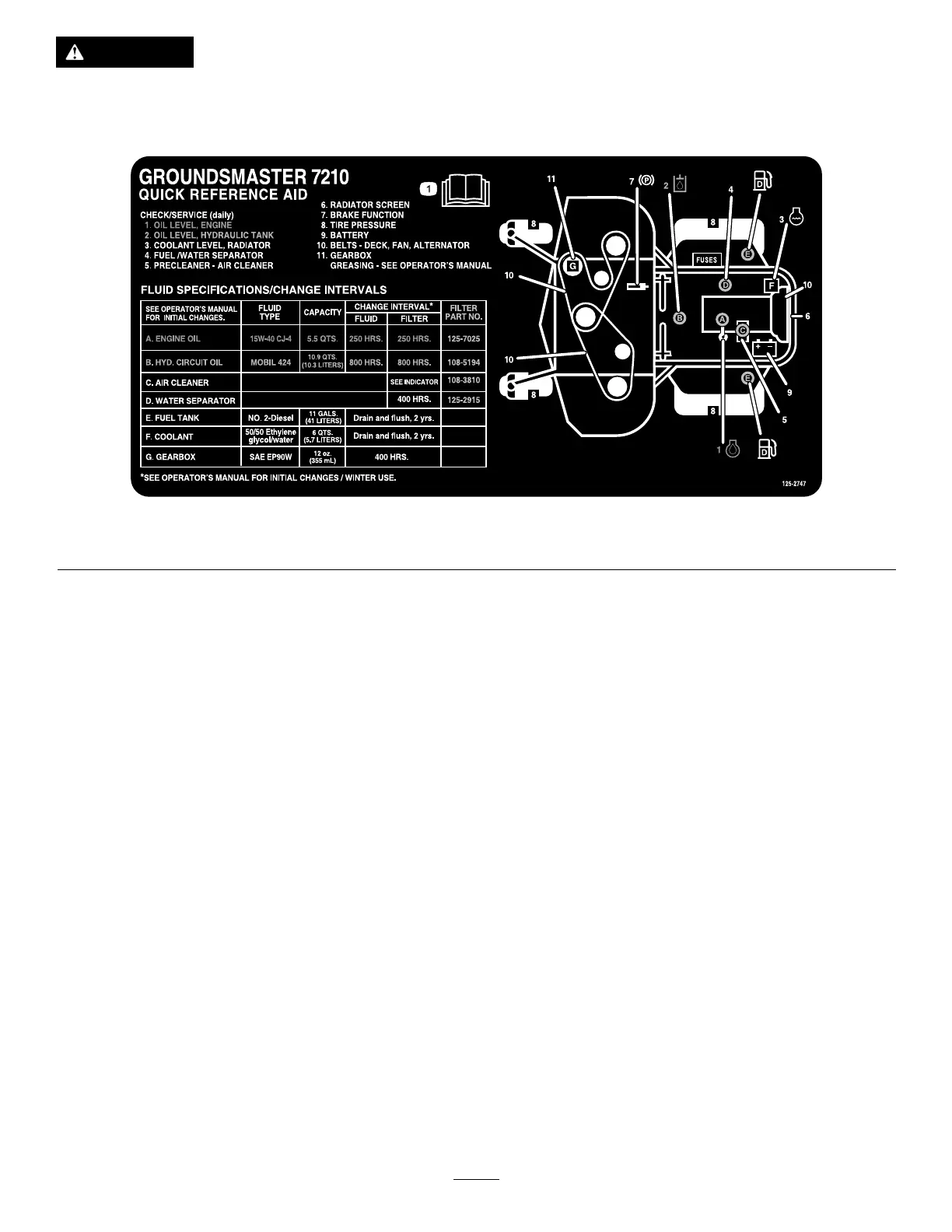

ServiceIntervalChart
Premaintenance
Procedures
Important:Thefastenersonthecoversofthismachine
aredesignedtoremainonthecoverafterremoval.
Loosenallofthefastenersoneachcoverafewturnsso
thatthecoverisloosebutstillattached,thengoback
andloosenthemuntilthecovercomesfree.Thiswill
preventyoufromaccidentallystrippingtheboltsfree
oftheretainers.
Lubrication
GreasingtheBearingsand
Bushings
ServiceInterval:Every50hours
Themachinehasgreasettingsthatmustbelubricated
regularlywithNo.2general-purpose,lithium-basedgrease.If
themachineisoperatedundernormalconditions,lubricate
allbearingsandbushingsafterevery50hoursofoperation.
Lubricatingbearingsandbushingsdailywhenoperating
conditionsareextremelydustyanddirty.Dustyanddirty
operatingconditionscouldcausedirttogetintothebearings
andbushings,resultinginacceleratedwear.Lubricatethe
greasettingsimmediatelyaftereverywashing,regardlessof
intervalspecied.
1.Wipethegreasettingscleansothatforeignmatter
cannotbeforcedintothebearingorbushing.
2.Pumpgreaseintothettings.
3.Wipeoffexcessgrease.
Figure29andFigure30illustratethelocationsofthegrease
ttings.
Important:Thettingsontheaxlesofthecasterwheels
arenotillustrated.Ensurethatyougreasethesettings
aswell.
31
