HydraulicSystem
Maintenance
Thereservoirislledatthefactorywithapproximately
4.7liters(5quarts)ofhighqualitytractor
transmission/hydraulicuid.Therecommended
replacementuidisasfollows:
ToroPremiumTransmission/HydraulicTractorFluid
(Availablein5gallonpailsor55gallondrums.Seeparts
catalogorTorodistributorforpartnumbers.)
Alternateuids:IftheTorouidisnotavailable,Mobil®424
hydraulicuidmaybeused.
Note:Torowillnotassumeresponsibilityfordamagecaused
byimpropersubstitutions.
Note:Manyhydraulicuidsarealmostcolorless,makingit
difculttospotleaks.Areddyeadditiveforthehydraulic
systemoilisavailablein20ml(2/3oz)bottles.Onebottleis
sufcientfor15-22liters(4-6gallons)ofhydraulicoil.Order
partnumber44-2500fromyourAuthorizedToroDistributor.
CheckingtheHydraulic
System
ServiceInterval:Beforeeachuseordaily
Checkthelevelofthehydraulicuidbeforetheengineisrst
startedanddailythereafter.
1.Positionthemachineonalevelsurface.
2.Placethecontrolsintheneutrallockedpositionand
starttheengine.
Note:RunengineatlowestpossibleRPMtopurge
thesystemofair.DonotengagethePTO.
3.Raisethedecktoextendliftcylinders,stoptheengine,
andremovethekey.
4.Raisetheseattoaccessthehydraulicuidtank.
5.Removethehydraulicllcap(Figure54)fromtheller
neck.

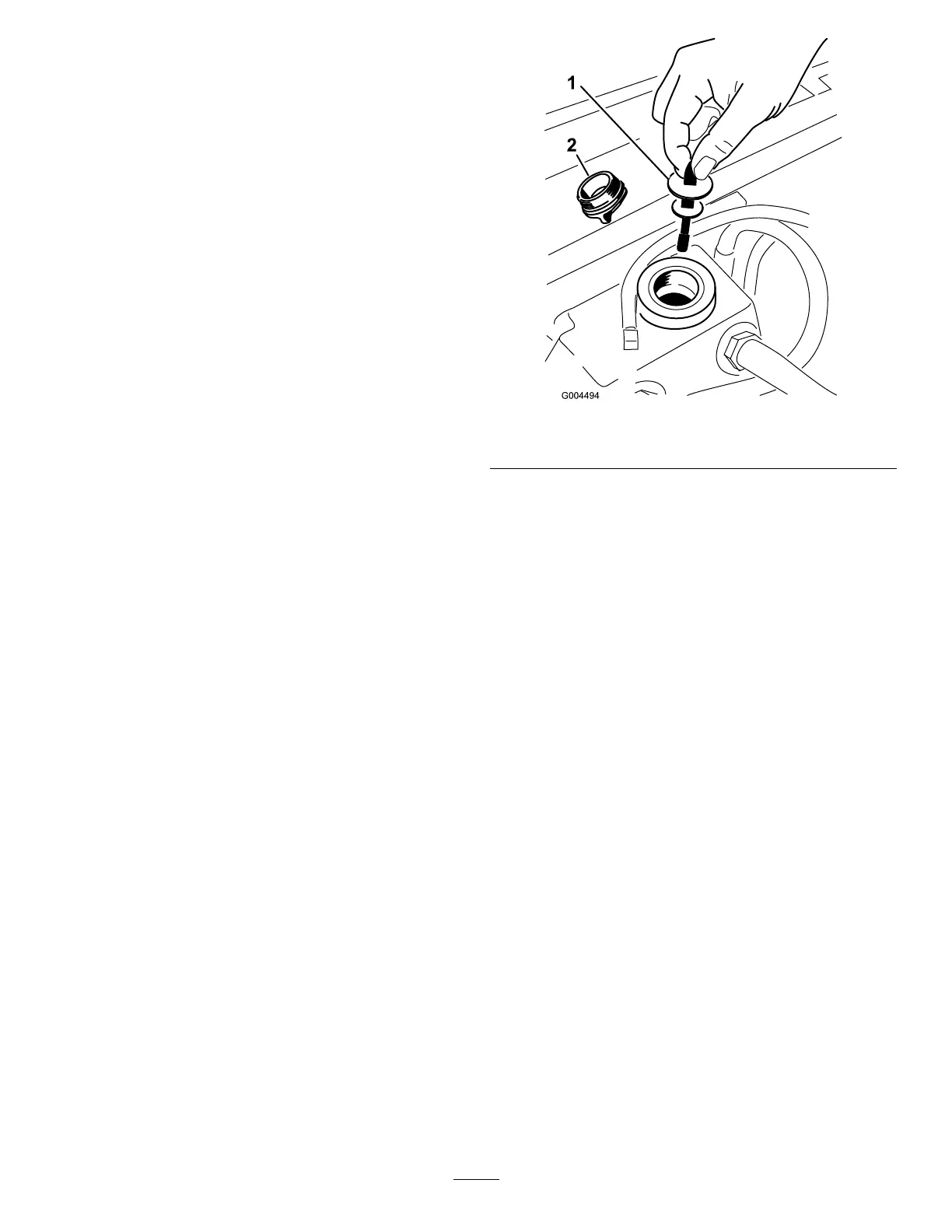

Figure54
1.Dipstick2.Fillcap
6.Removethedipstickandwipeitwithacleanrag
(Figure54).
7.Placethedipstickintothellerneck;thenremoveit
andchecklevelofuid(Figure54).
Note:Iflevelisnotwithinnotchedareaofthe
dipstick,addenoughhighqualityhydraulicuidto
raiseleveltowithinthenotchedarea.Donotoverll.
8.Replacethedipstickandthreadthellcapnger-tight
ontollerneck.
9.Checkallhosesandttingsforleaks.
47
