g024916

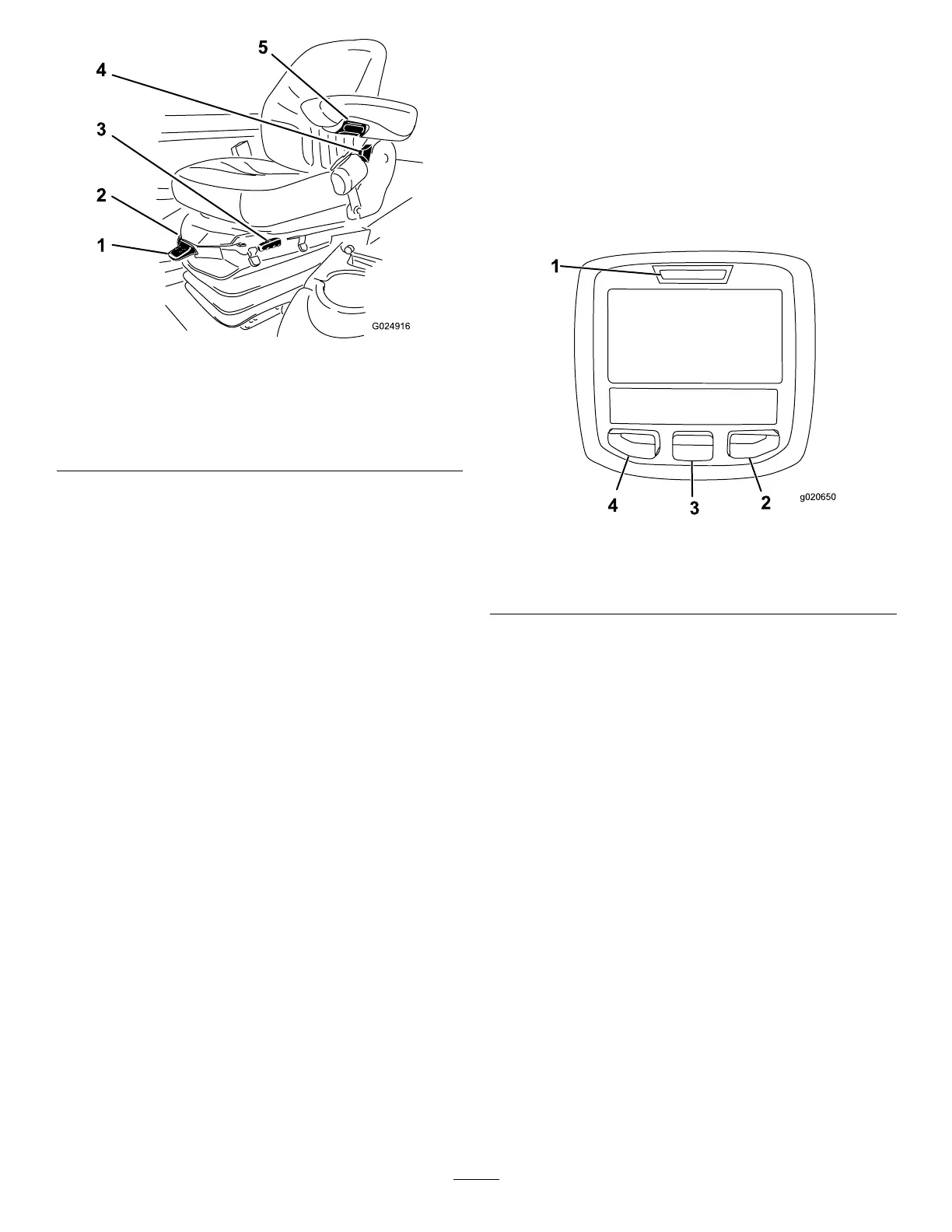

Figure14
1.Weightgauge
4.Seat-backadjustment
lever
2.Weightadjustmentlever5.Armrestadjustmentknob
3.Seatadjustmentlever
ArmrestAdjustmentKnob
Rotatetheknobtoadjustthearmrestangle(Figure
14).
Seat-BackAdjustmentLever
Movethelevertoadjusttheseat-backangle(Figure
14).
WeightGauge
Theweightgaugeindicateswhentheseatisadjusted
totheweightoftheoperator(Figure14).Adjustthe
heightbypositioningthesuspensionwithintherange
ofthegreenregion.
WeightAdjustmentLever
Usethislevertoadjusttheseattoyourweight(Figure
14).Pulltheleveruptoincreasetheairpressureand
pushtheleverdowntodecreasetheairpressure.The
properadjustmentiscorrectwhentheweightgaugeis
inthegreenregion.
UsingtheInfoCenterLCDDisplay
TheInfoCenterLCDdisplayshowsinformationabout
yourmachine,suchastheoperatingstatus,various
diagnosticsandotherinformationaboutthemachine
(Figure15).Thereisasplashscreenandmain
informationscreenoftheInfoCenter.Youcanswitch
betweenthesplashscreenandmaininformation
screenatanytimebypressinganyoftheInfoCenter
buttonsandthenselectingtheappropriatedirectional
arrow.
g020650
Figure15
1.Indicatorlight3.Middlebutton
2.Rightbutton
4.Leftbutton
•LeftButton,MenuAccess/BackButton—pressthis
buttontoaccesstheInfoCentermenus.Youcan
useittoexitanymenuthatyouarecurrentlyusing.
•MiddleButton—usethisbuttontoscrolldown
menus.
•RightButton—usethisbuttontoopenamenu
wherearightarrowindicatesadditionalcontent.
•Beeper—activatedwhenloweringthecuttingunits
orforadvisoriesandfaults.
Note:Thepurposeofeachbuttonmaychange
dependingonwhatisrequiredatthetime.Each
buttonislabeledwithanicondisplayingitscurrent
function.
