Toro 30873TE - Page 43

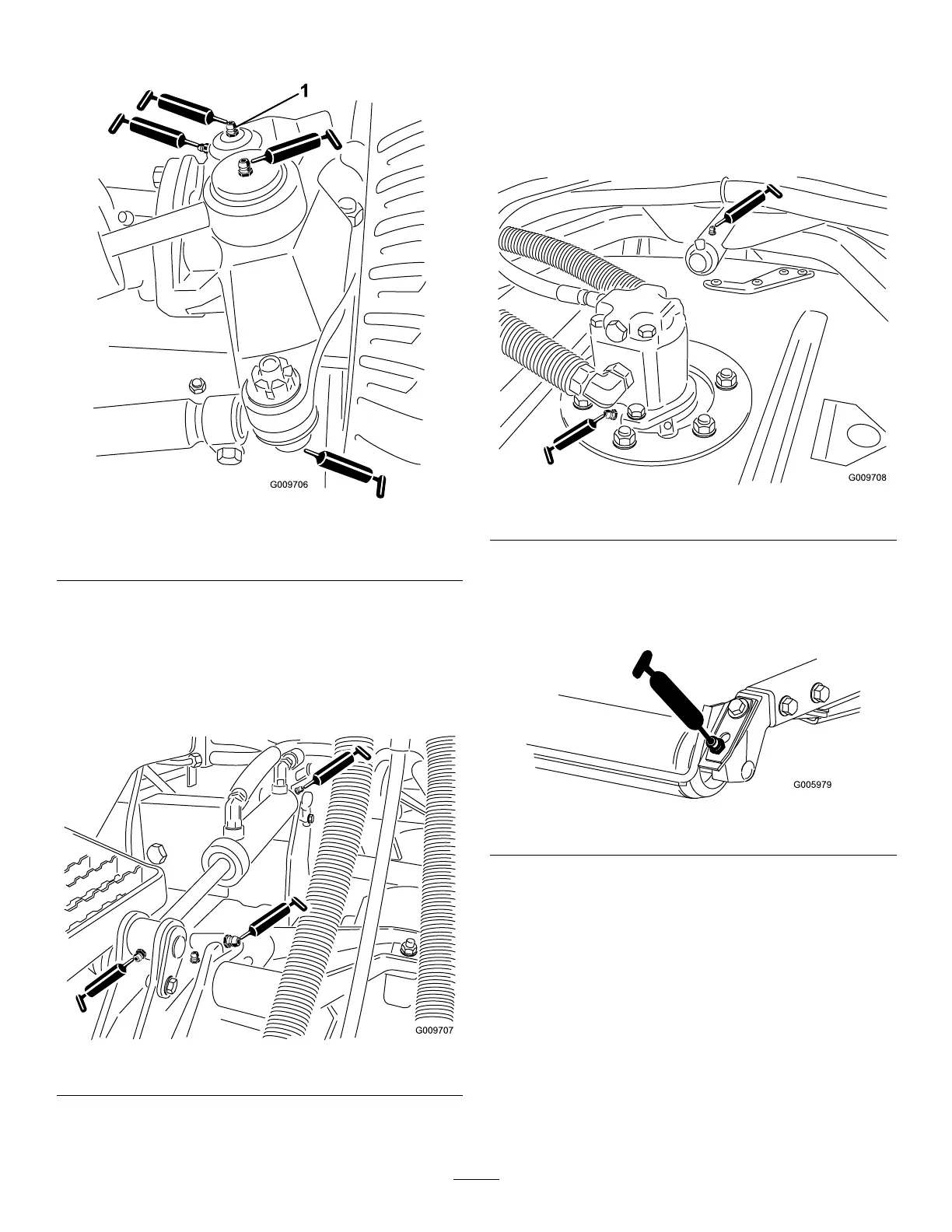

•Steering-cylinderballjoints(2)asshowninFigure
37
g009706
Figure37
1.T opttingonkingpin
•Tie-rodballjoints(2)asshowninFigure37
•Kingpinbushings(2)asshowninFigure37
Important:Lubricatethetopttingonthe
kingpinnomorethanannually(2pumps).
•Lift-armbushings(1percuttingunit)asshownin
Figure38
g009707
Figure38
•Lift-cylinderbushings(2percuttingunit)asshown
inFigure38
•Cutting-unitspindle-shaftbearings(2percutting
unit)asshowninFigure39
Note:Youcanuseeithertting,whicheveris
moreaccessible.Pumpgreaseintothetting
untilasmallamountappearsatthebottomofthe
spindlehousing(underthecuttingunit).
g009708
Figure39
•Cutting-unitcarrier-armbushings(1percutting
unit)asshowninFigure39
•Rearrollerbearings(2percuttingunit)asshown
inFigure40
g005979
Figure40
Important:Makesurethatthegreasegroove
ineachrollermountalignswiththegrease
holeineachendoftherollershaft.Tohelp
alignthegrooveandthehole,thereisalsoan
alignmentmarkon1endoftherollershaft.
43
