BrakeMaintenance
AdjustingtheService
Brakes
Adjusttheservicebrakeswhenthereismorethan
25mm(1inch)offreetravelofthebrakepedal,or
whenthebrakesdonotworkeffectively.Freetravelis
thedistancethebrakepedalmovesbeforeyoufeel
brakingresistance.
1.Parkthemachineonalevelsurface,engagethe
parkingbrake,lowerthemowerdecks,shutoff
theengine,andremovethekey.
2.Releasethelockinglatchfromthebrakepedals
sothatbothpedalsworkindependentlyofeach
other.
3.Toreducefreetravelofthebrakepedals,tighten
thebrakesasfollows:

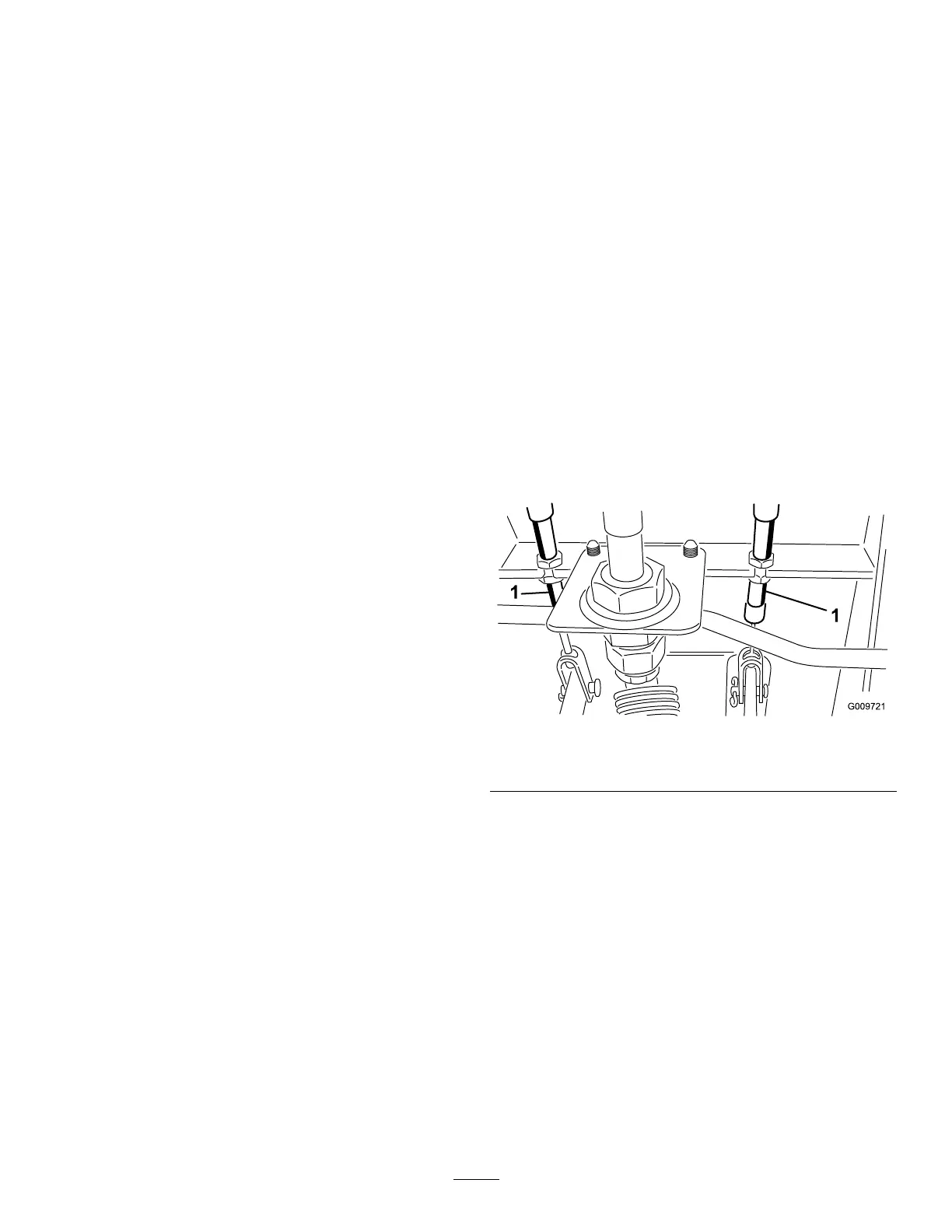

A.Loosenthefrontnutonthethreadedendof
thebrakecable(Figure114).
g009721
Figure114
1.Brakecable
B.Tightentherearnuttomovethecable
rearwarduntilthebrakepedalshave13to
25mm(1/2to1inch)offreetravel.
C.Tightenthefrontnutsafterthebrakesare
adjustedcorrectly.
