Toro 34230 - Engine Oil Level and Change

g023796

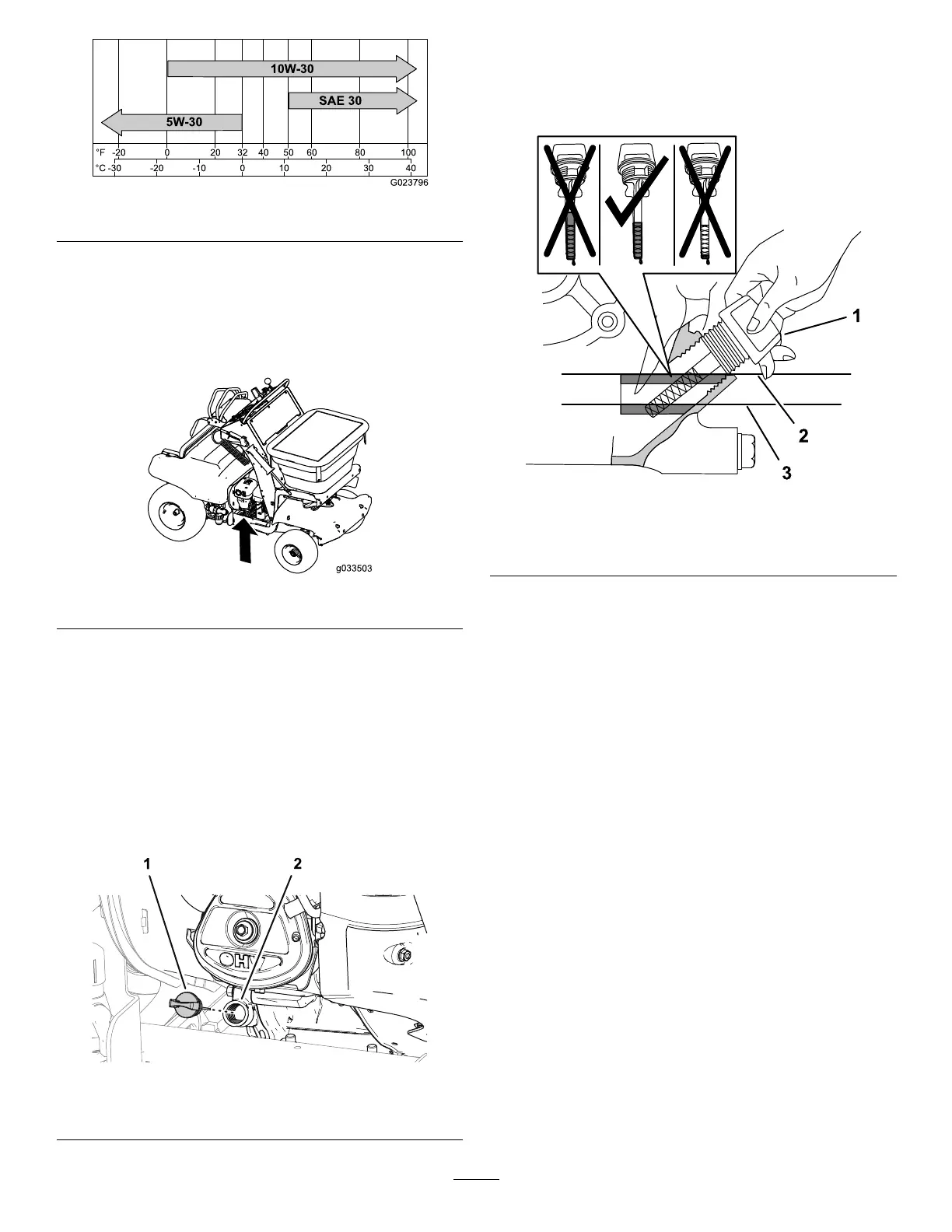

Figure73
CheckingtheEngine-Oil
Level
ServiceInterval:Beforeeachuseordaily
g033503
Figure74
Important:Donotoperatetheenginewiththeoil
levelbelowtheLow(orAdd)markonthedipstick,
orovertheFullmark.
1.Movethemachinetoalevelsurface.
2.Preparethemachineformaintenance;referto
PreparingtheMachine(page57).
3.Allowtheenginetocool.
4.Removethedipstickfromtheengineandwipe
thedipstickwithacleanrag(Figure75).
g257928
Figure75
1.Dipstick2.Fillerneck
5.Insertthedipstickfromtheengineasshownin
Figure76.
Note:Donotthreadthedipstickintotheller
neckwhencheckingtheengineoillevel.
g257927
Figure76
1.Dipstick3.Minimumoillevel
2.Maximumoillevel
6.Removethedipstickfromthellerneckandlook
attheoillevelinthedipstick(Figure76).
Note:Theengineoillevelmustcoverthe
hatch-markedareaofthedipstick(Figure76).
7.Iftheoillevelislow,wipeofftheareaaround
thellerneckandaddthespeciedoiluntilthe
oillevelisbetweenthehatchmarkedareason
thedipstick.
Important:Donotoverlltheenginewith
oil.
8.Handtightenthedipstickintothellerneck
(Figure75).
ChangingtheEngineOil
ServiceInterval:Aftertherst10hours
Every100hours(moreoftenundersevere
condition).
DrainingtheEngineOil
1.Preparethemachineformaintenance;referto
PreparingtheMachine(page57).
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
59
