Toro 38682 - Replacing the Fuel Filter

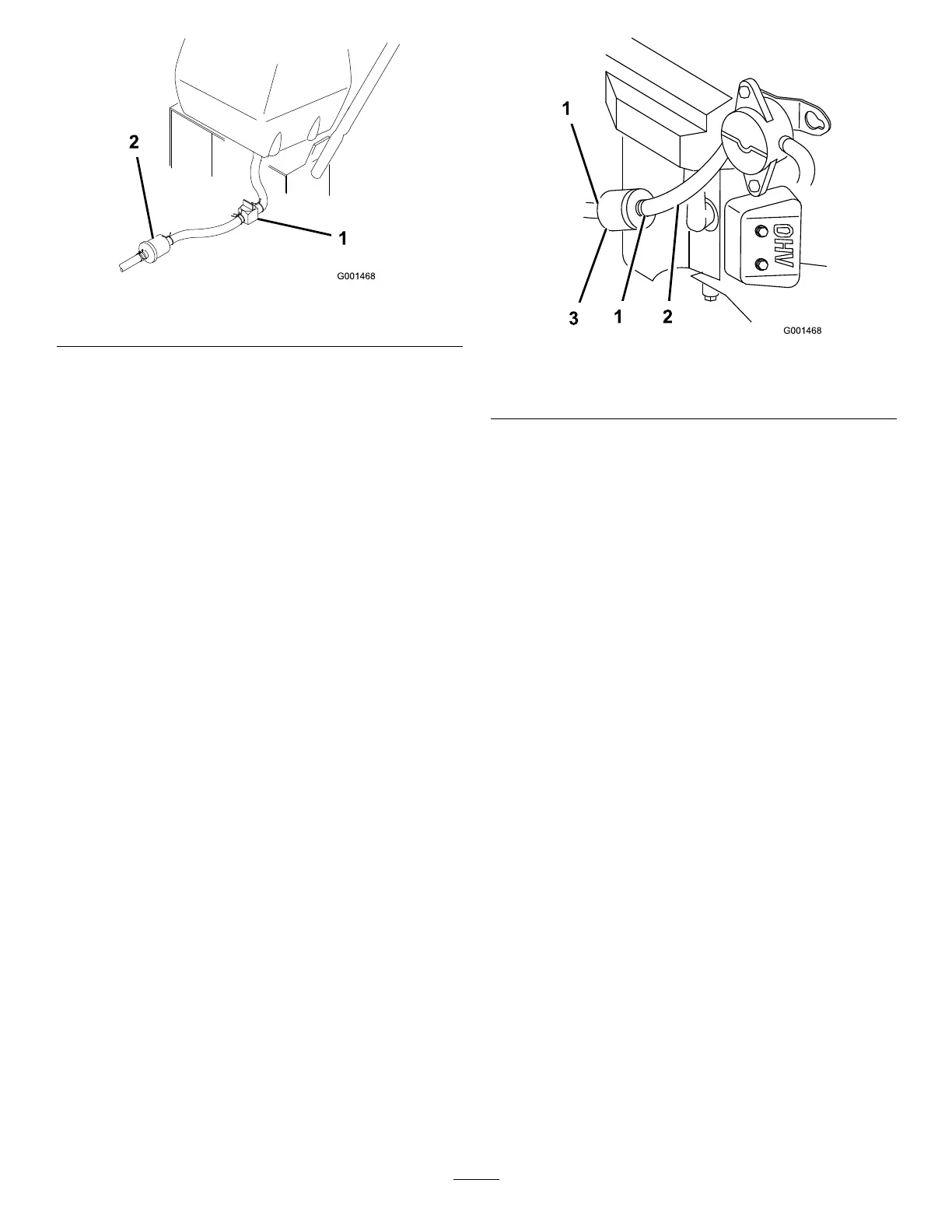

Figure25
1.Fuelshut-offvalve2.Fuellter
6.Wipeupanyspilledfuel.
ReplacingtheFuelFilter
Replacethefuellterafterevery200operatinghoursor
yearly,whicheveroccursrst.
Neverinstalladirtylterifitisremovedfromthefuel
line.
Note:Notehowthefuellterisinstalledinorderto
installthenewltercorrectly.
Note:Wipeupanyspilledfuel.
1.DisengagethePTOandsettheparkingbrake.
2.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Closefuelshut-offvalveatthefueltank(Figure25).
4.Squeezetheendsofthehoseclampstogetherand
slidethemawayfromthelter(Figure26).
Figure26
1.Hoseclamp3.Filter
2.Fuelline
5.Removethelterfromthefuellines.
6.Installanewlterandmovethehoseclampsclose
tothelter.
7.Openfuelshut-offvalveatfueltank(Figure25).
8.Checkforfuelleaksandrepairifneeded.
9.Wipeupanyspilledfuel.
