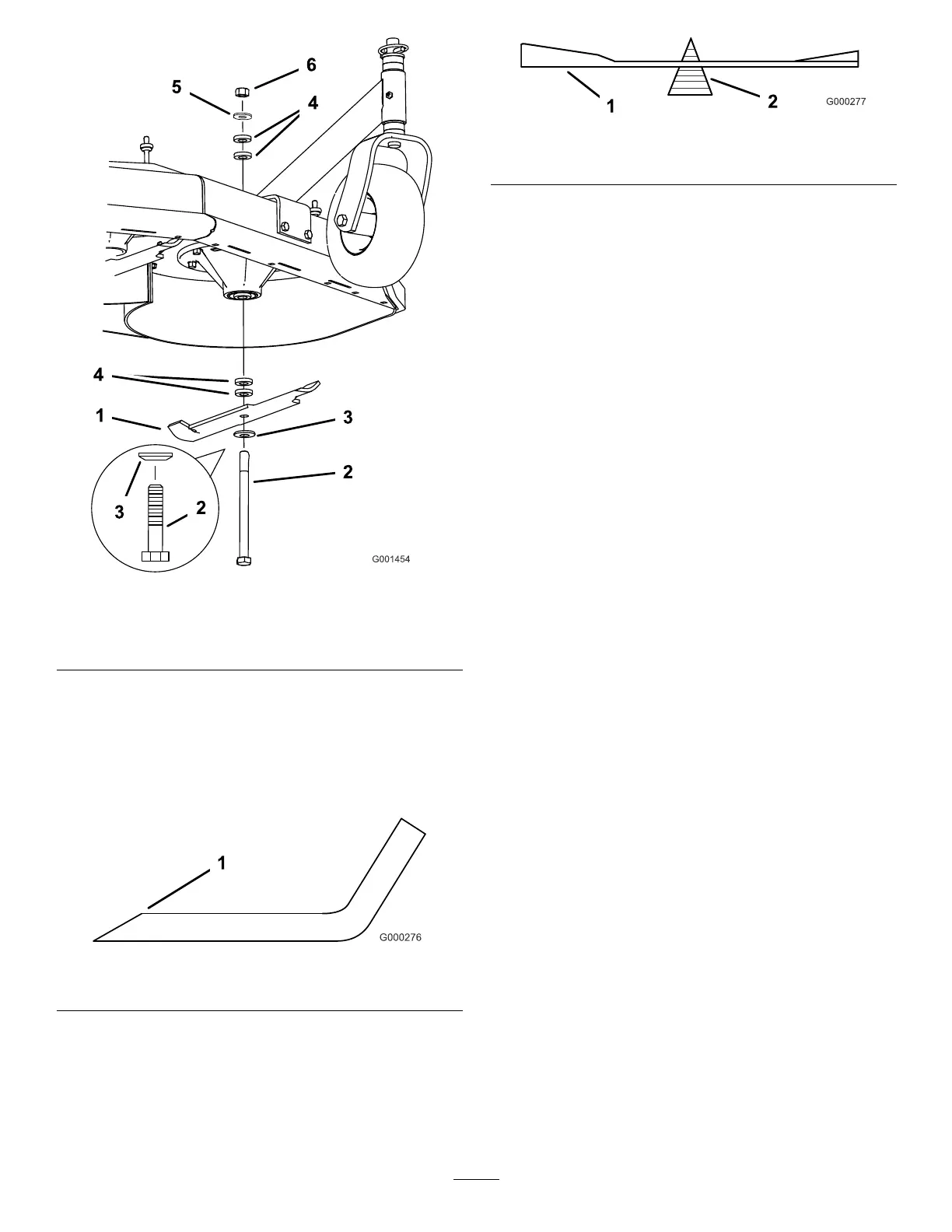

Figure40
1.Blade
4.Spacer
2.Bladebolt5.Thinwasher
3.Curvedwasher
6.Nut
SharpeningtheBlades
1.Usealetosharpenthecuttingedgeatbothends
oftheblade(Figure41).Maintaintheoriginalangle.
Thebladeretainsitsbalanceifthesameamountof
materialisremovedfrombothcuttingedges.
Figure41
1.Sharpenatoriginalangle
2.Checkthebalanceofthebladebyputtingitona
bladebalancer(Figure42).Ifthebladestaysina
horizontalposition,thebladeisbalancedandcanbe
used.Ifthebladeisnotbalanced,lesomemetaloff
theendofthesailareaonly(Figure42).Repeatthis
procedureuntilthebladeisbalanced.
Figure42
1.Blade2.Balancer
InstallingtheBlades
1.Placethebladeontotheboltandoverthecurved
washer.Selectthepropernumberofspacer(s)for
theheight-of-cut,andslidetheboltintothespindle
(Figure40).
Important:Thecurvedpartoftheblademust
pointupwardtowardtheinsideofthemowerto
ensurepropercutting.
2.Installtheremainingspacer(s)andsecurethemwith
athinwasherandanut(Fig.Figure40).
3.Torquethebladeboltto75-80ft-lb(101-108N•m).
AdjustingtheBladeBrake
1.DisengagethePTO,turntheignitionkeytooff,and
removethekey.
2.Waitforallmovingpartstostopbeforeleavingthe
operatingpositionandthensettheparkingbrake.
3.Ifnecessary,adjustthespringmountingboltssothat
thebladebrakepadrubsagainstbothsidesofthe
pulleygroove(Figure43).
4.Adjustthenutattheendofthebladebrakeroduntil
thereis1/8-3/16inch(3mm-5mm)betweenthe
nutandspacer(Figure43).
5.Engagetheblades.Ensurethebladebrakepadno
longercontactsthepulleygroove.
