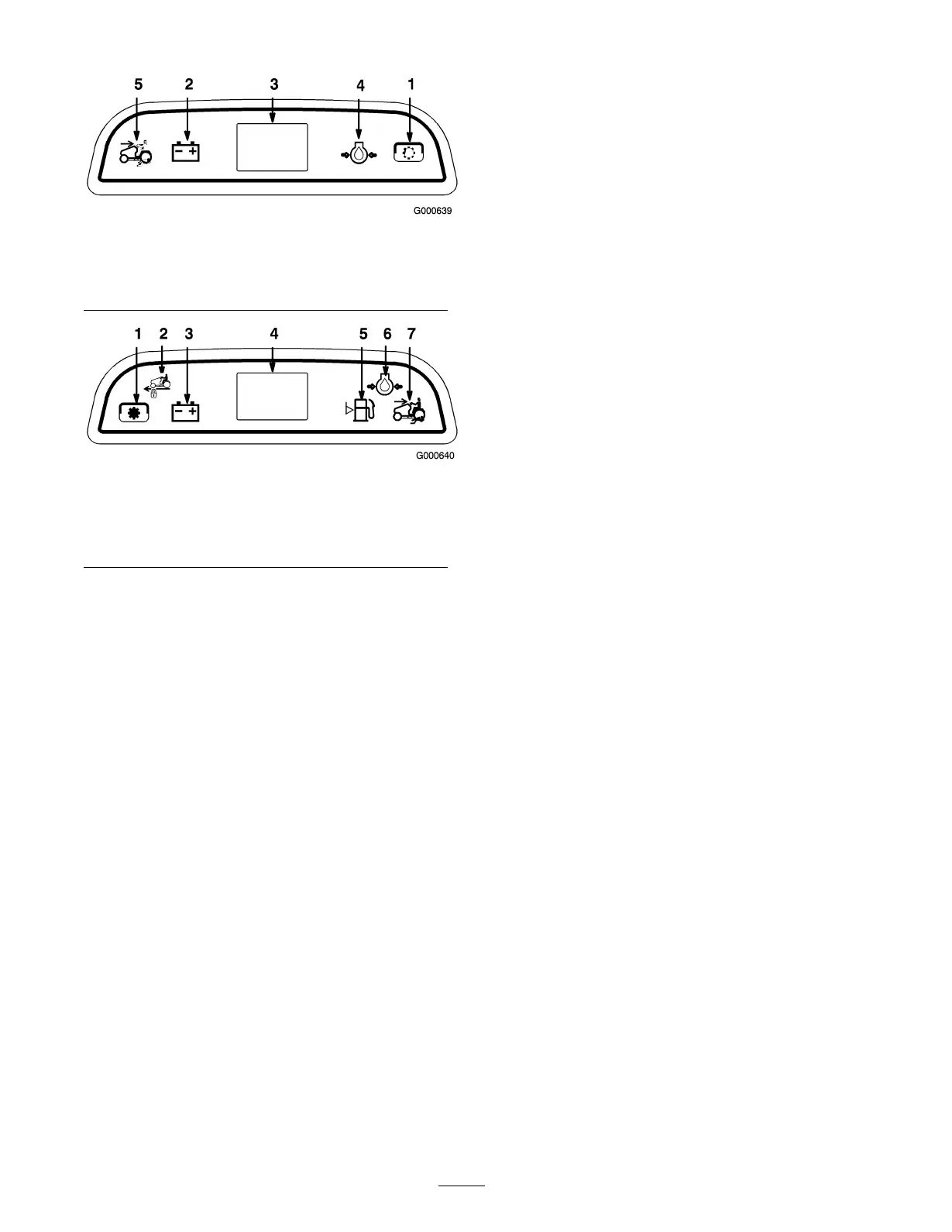

Figure 12
1. Power take off (PTO)
4. Oil pressure
2. Battery
5. Operating-in-Reverse
3. Hourmeter
Figure 13
1. Power take off (PTO)
5. Fuel level
2. Cruise control 6. Oil Pressure
3. Battery
7. Operating-in-Reverse
4. Hourmeter
F ollo wing are the conditions when indicator lights will
be on. At other times the lights should be off .
• Batter y
T he batter y light will be on when the ignition k ey is
in the r un or lights positions if the batter y v oltag e
is belo w 11.2 v olts . W hen this light comes on it
is impor tant to ha v e y our batter y and electrical
system c hec k ed and the problem cor rected.
• Fuel Lev el
T he fuel lev el light will be on when the ignition k ey
is in the r un or lights positions and the fuel lev el is
lo w , appro ximately one pint remaining .
• Oil
T he oil light will be on when the ignition k ey is
in the r un or lights positions and the engine is
not r unning, after the engine is star ted the light
should g o out. W hen the engine is r unning if the
oil pressure drops belo w a safe operating lev el the
light comes on. W hen the light comes on while
the engine is r unning, Stop engine immediately and
cor rect the cause of lo w oil pressure .
• PT O (P o w er T ak e Of f)
T he PTO (po w er tak e off) light will be on when
the ignition k ey is in the r un or lights positions and
the PTO (po w er tak e off) is eng ag ed on. W hen this
light is on it is a reminder; the star ter will not crank
and tur n off the PTO before g etting off .
• Hour meter
T he hour meter records the n umber of hours the
engine has operated. It is tur ned on when the
ignition switc h is in the r un or lights positions . Use
the times for sc heduling regular maintenance .
18
