Controls

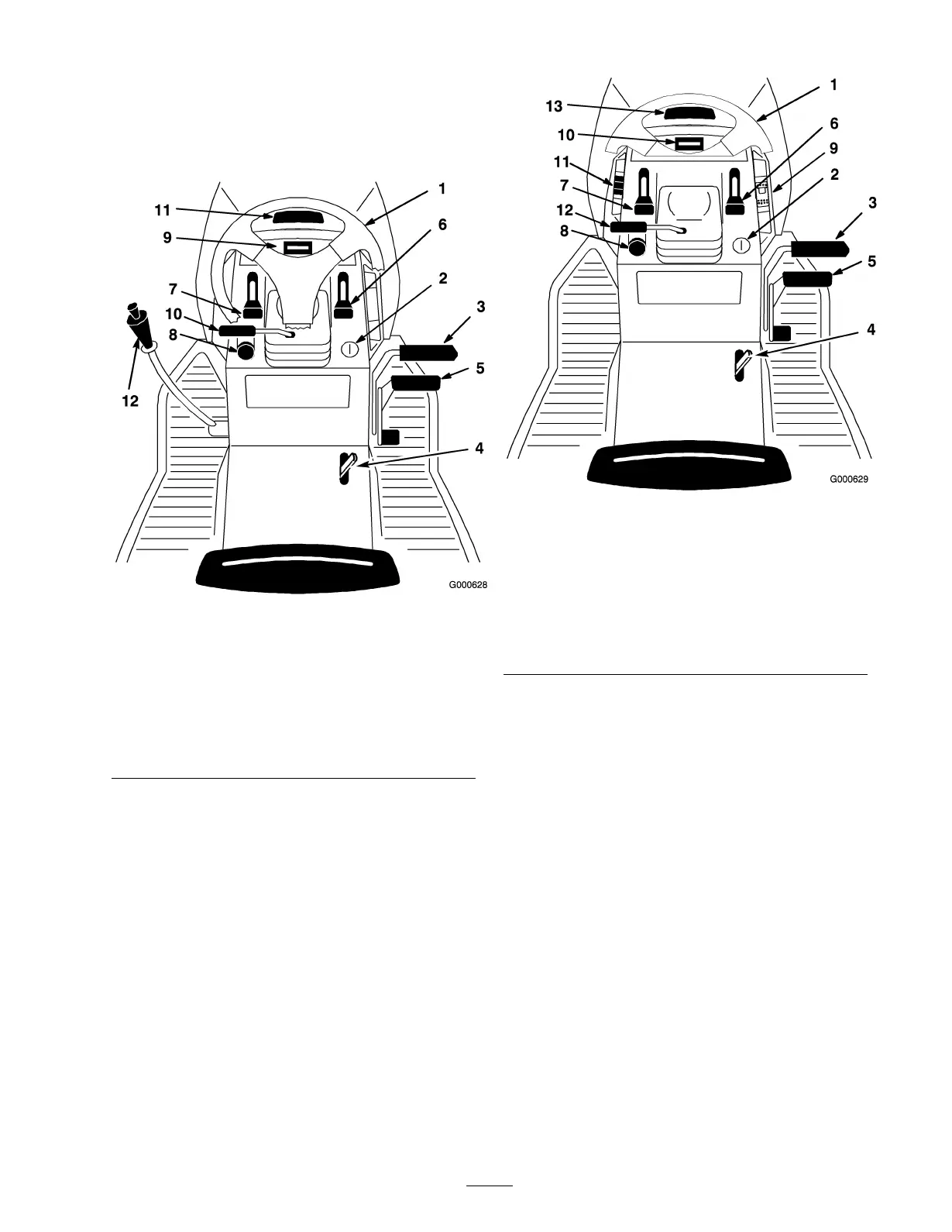

Become familiar with all the controls ( Figure 10 for
model 420 or Figure 11 for model 430) before y ou
star t the engine and operate the mac hine .
Figure 10
Model 420
1. Steering wheel
8. Power take off (PTO)
2. Ignition switch 9. Cruise control switch
3. Brake pedal 10. Indicator control
module/Hourmeter
4. Parking brake lever 11. Tilt wheel lever
5. Ground speed selector 12. Hood opening
6. Throttle lever 13. Attachment lift
7. Choke lever
Figure 11
Model 430
1. Steering wheel
8. Power take off (PTO)
2. Ignition switch 9. Cruise control switch
3. Brake pedal 10. Indicator control
module/Hourmeter
4. Parking brake lever 11. Attachment lift switch
5. Ground speed selector 12. Tilt wheel lever
6. Throttle lever 13. Hood opening
7. Choke lever
Indicator Control Module
T he indicator control module ( Figure 12 and
Figure 13 ) contains lights for :
• Operating in rev erse
• P o w er tak e off (PTO)
• Batter y
• Oil pressure
• Hour meter (LED)
• Cr uise control (Model 430 only)
• Fuel lev el (Model 430 only)
