HYDRAULIC SYSTEM
5-15Toro Z Master G3 3000/5000/6000 Series Service Manual
5

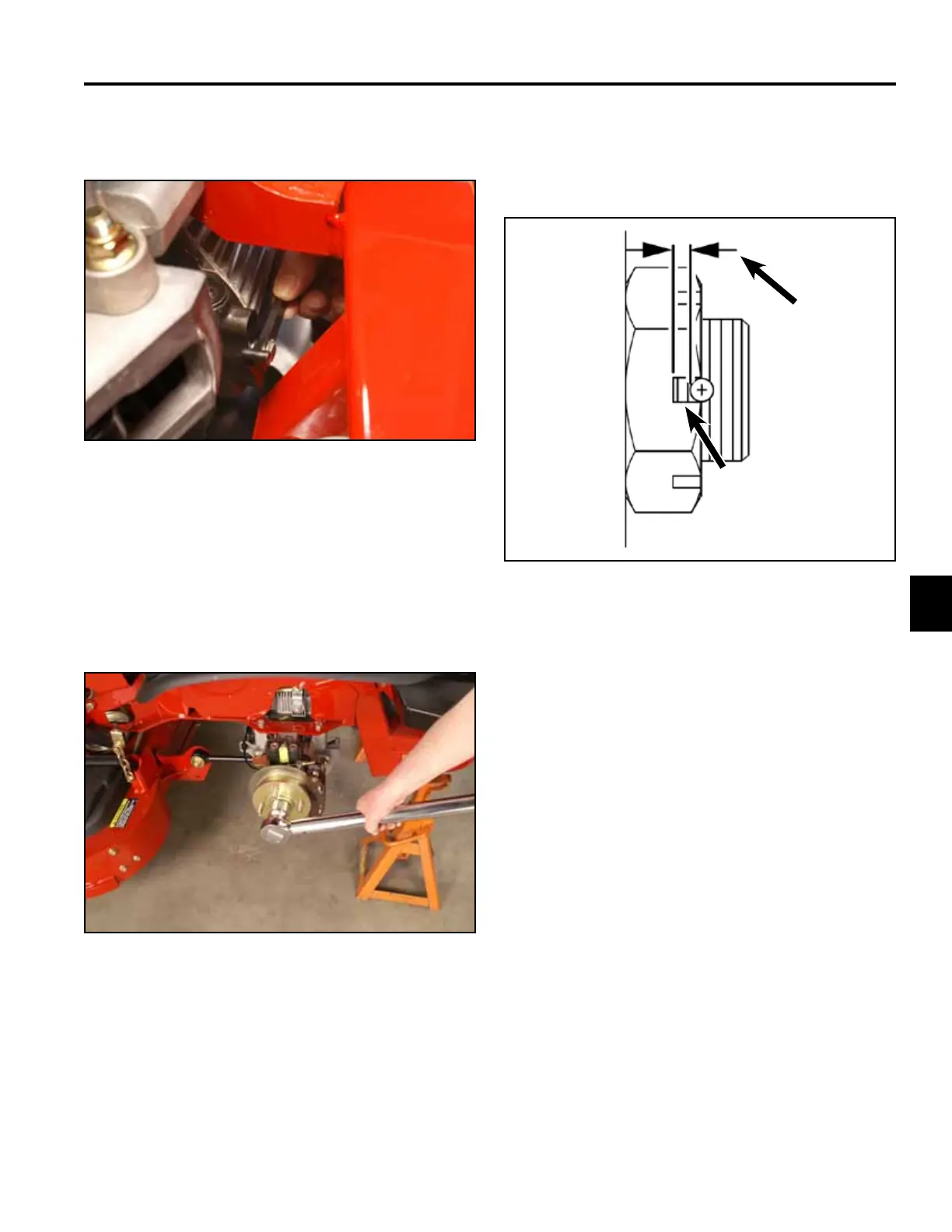

30. Close the drive wheel release valve (horizontal
operating position) (Fig. 314).
Fig. 314 PICT-8677a
31. Repeat steps 24 - 30 on the opposite side of the
machine.
32. Engage the parking brake.
33. Torque the castle nut to 200 ft-lbs. (271 Nm) (Fig.
315).
Fig. 315 PICT-8687
34. Check the distance from the bottom of the slot in the
castle nut to the inside edge of the cross hole in the
shaft. Two threads or less should be showing (Fig.
316).
Fig. 316 g. 58 G008603
A
B
A. 0.1” (25mm) max B. No more than 2 threads
(0.1” (25mm) max)
should be showing here
