Toro 74954 - Mower Spindle Assembly (2009 Model G3 Series Units)

MOWER DECKS
6-12 Toro Z Master G3 3000/5000/6000 Series Service Manual
6
Mower Spindle Assembly (2009 Model
G3 Series Units)

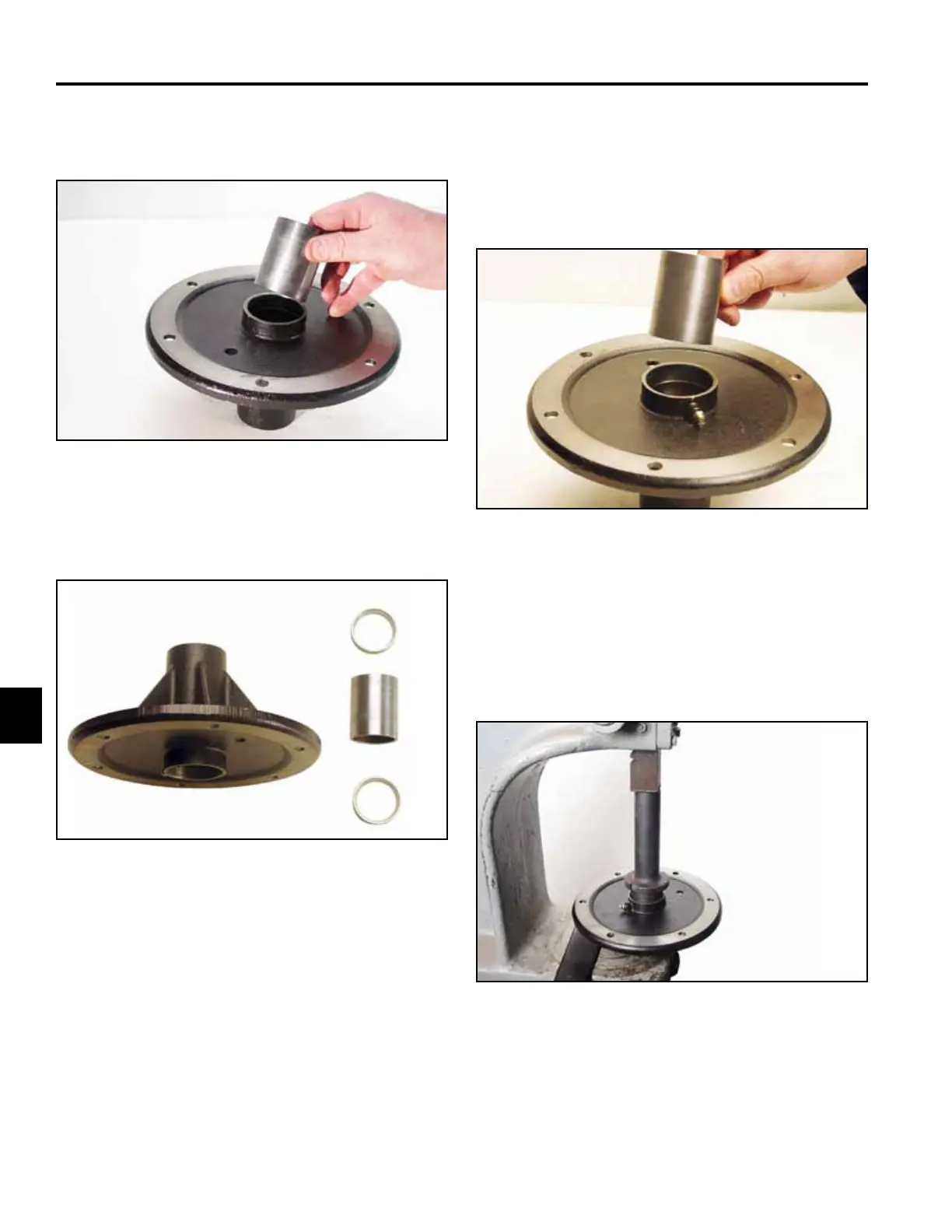

14. Remove the large spacer in the spindle housing (Fig.
415).
1. Install the spacer through the top of the spindle
housing (Fig. 417).
Fig. 415 DSCN-2682a
15. This view shows the 2 bearing races and the large
spacer in the spindle housing (Fig. 416).
A. Brearing race spacer B. Center spacer
Fig. 416 DSCN-2684a
Fig. 417 DSCN-2688a
2. Using a press, install the upper bearing race into the
spindle housing (Fig. 418).
Note: The wider inside diameter of the bearing race
should be facing up to accept the tapered
bearing.
Fig. 418 DSCN-2689a
A
A
B
