HYDRAULIC SYSTEM
5-17Toro Z Master G3 3000/5000/6000 Series Service Manual
5
42. With a 3/8” drive breaker bar installed into the
square hole in the idler bracket, rotate the idler
clockwise to relieve tension (Fig. 322).
41. Route the mower deck drive belt around the electric
PTO clutch (Fig. 321).
43. Route the mower deck drive belt around the mower
deck pulleys. Refer to the mower deck routing decal
(Fig. 323).

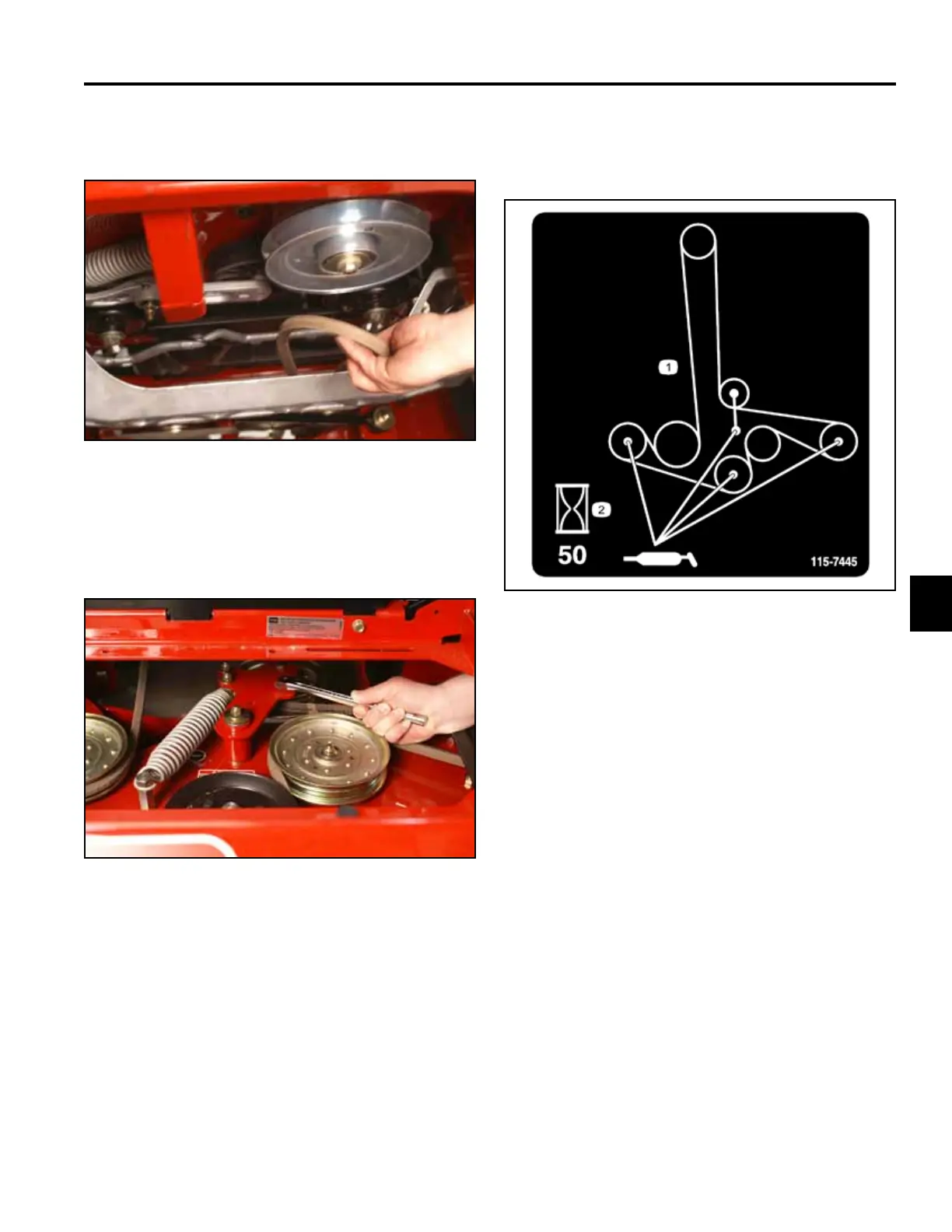

Fig. 321 PICT-8693a
Fig. 322 PICT-8545a
Fig. 323 decal 115-7445
