g322159

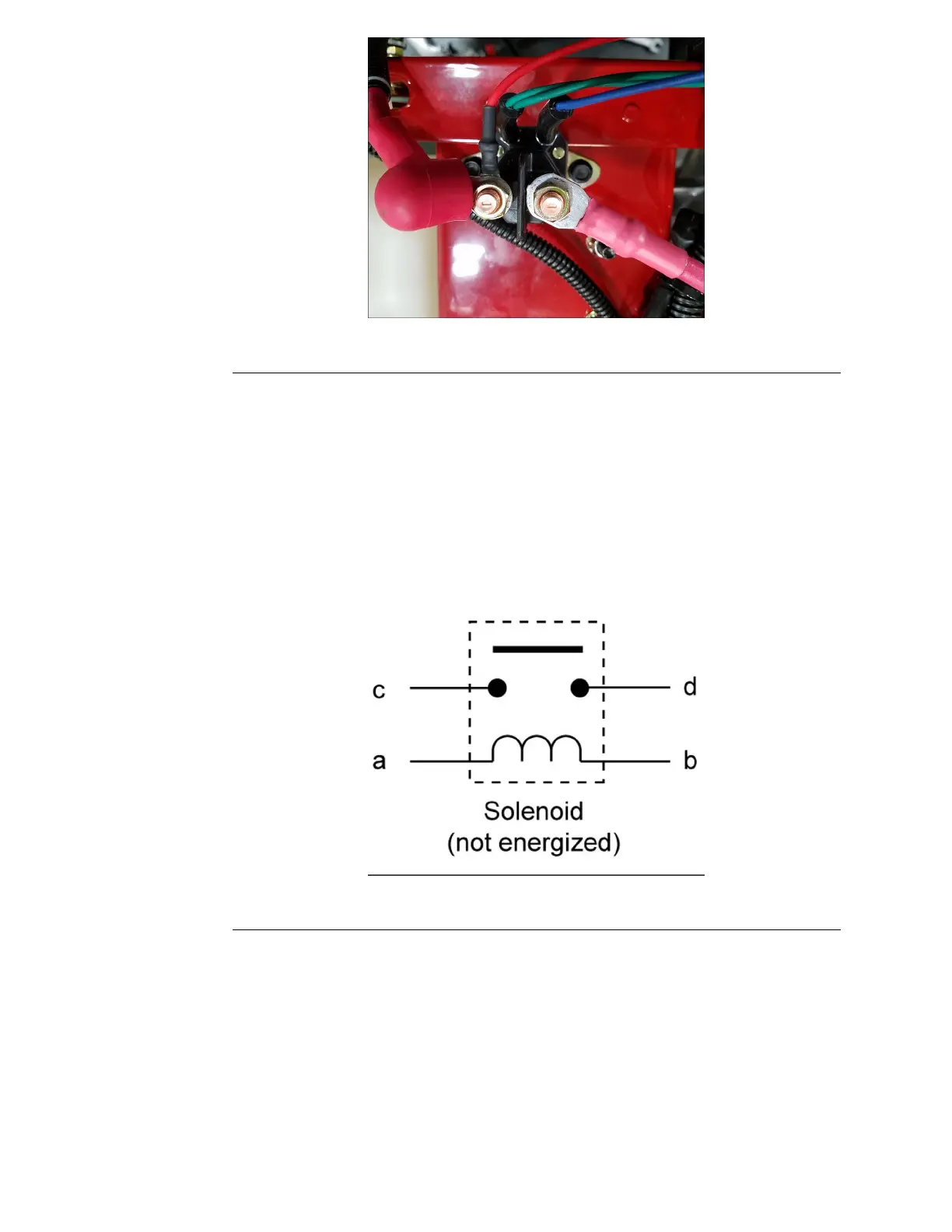

Figure91
StarterSolenoidTesting
1.Disconnectthebatterycablesfromthesolenoid.
2.Withamulti-metersettotheOHMorContinuitysetting,checktoensurethat
terminalsCandDareopen(nocontinuity).
•GreenwireisterminalB
•BluewireisterminalA
•LargeredwirewithredcapandextraredwireisterminalC
•LargeredwirewithnocapisterminalD
g331279
Figure92
3.Apply12volts(DC)toterminalAandgroundterminalB.T erminalsCandD
shouldnowbeclosed(continuity).
PTOSwitch
ThePTOswitchprovidesbatteryvoltagefromtheignitionswitchtothePTO
clutch.
Aspartofthesafetyinterlocksystem,thePTOswitchwillpreventtheengine
fromcranking/startingwhenintheONpositionbypreventingthestartersolenoid
fromgroundingthroughthekillrelay.
Electrical:ServiceandRepairs
Page8–8
TitanServiceManual
3438-774RevA
