ToroTwinCylinderEngineReplacement
ToroTwinCylinderEngineRemoval
1.ParkthemachineonalevelsurfaceanddisengagethePTO.Stoptheengine,
waitforallmovingpartstostop,andremovekey.Engagetheparkingbrake.
2.Disconnectthebatterybyremovingthenegativecablerst,thenthepositive
cablefromthebattery.
3.Removetheengineguard.
4.Removethemufer.
5.Removethemowerbelt.
6.Removethehydrostaticdrivebelt.
7.Disconnectthechassiswireharnessfromthemainenginewireharness.

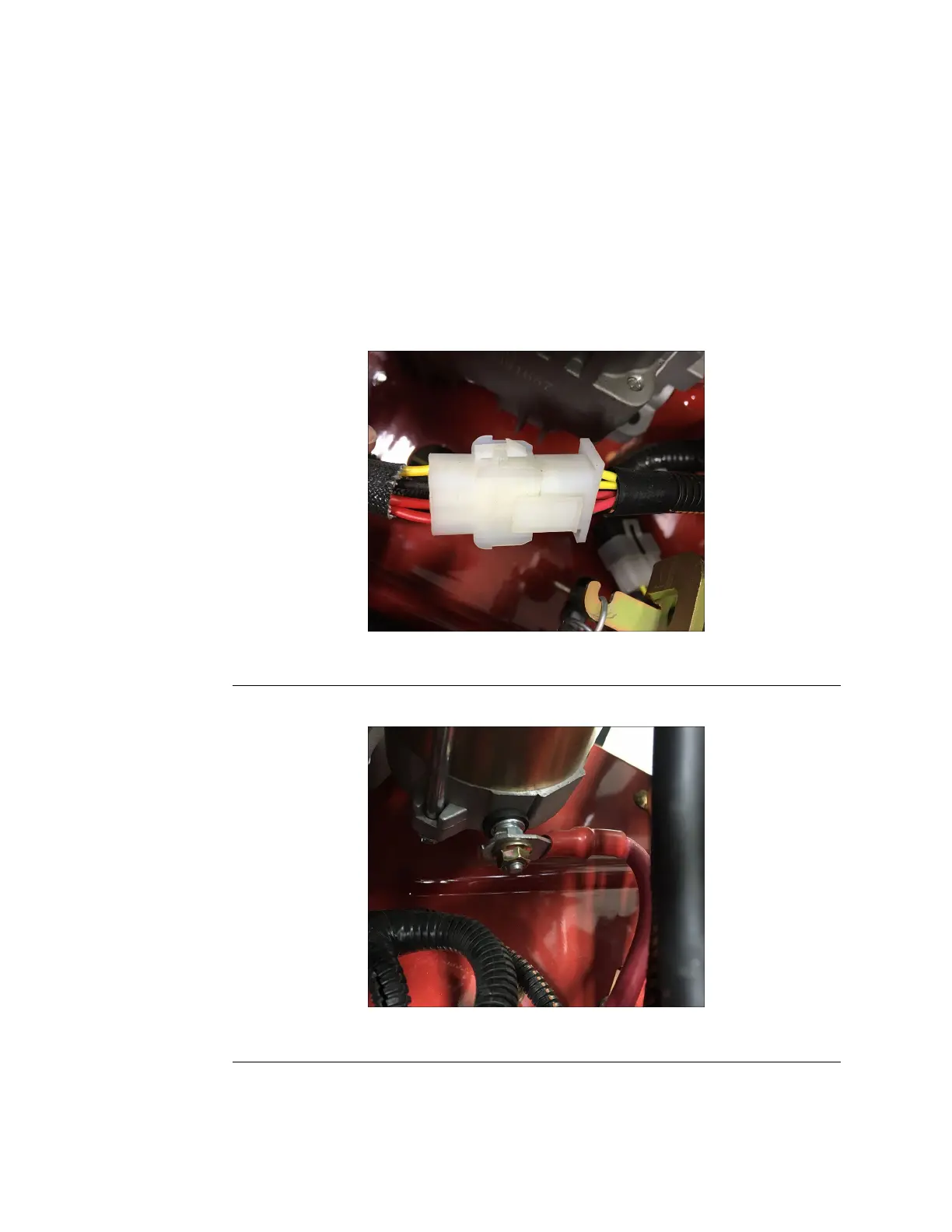

g321703
Figure4
8.Disconnecttheredwirefromthestarter.
g321704
Figure5
9.Disconnecttheblackenginegroundwire.
